EG4 18KPV w/17.5KW Panels & 14.3KWH Battery Storage Kit
$13,287.42
-
Available on backorder
On Backorder

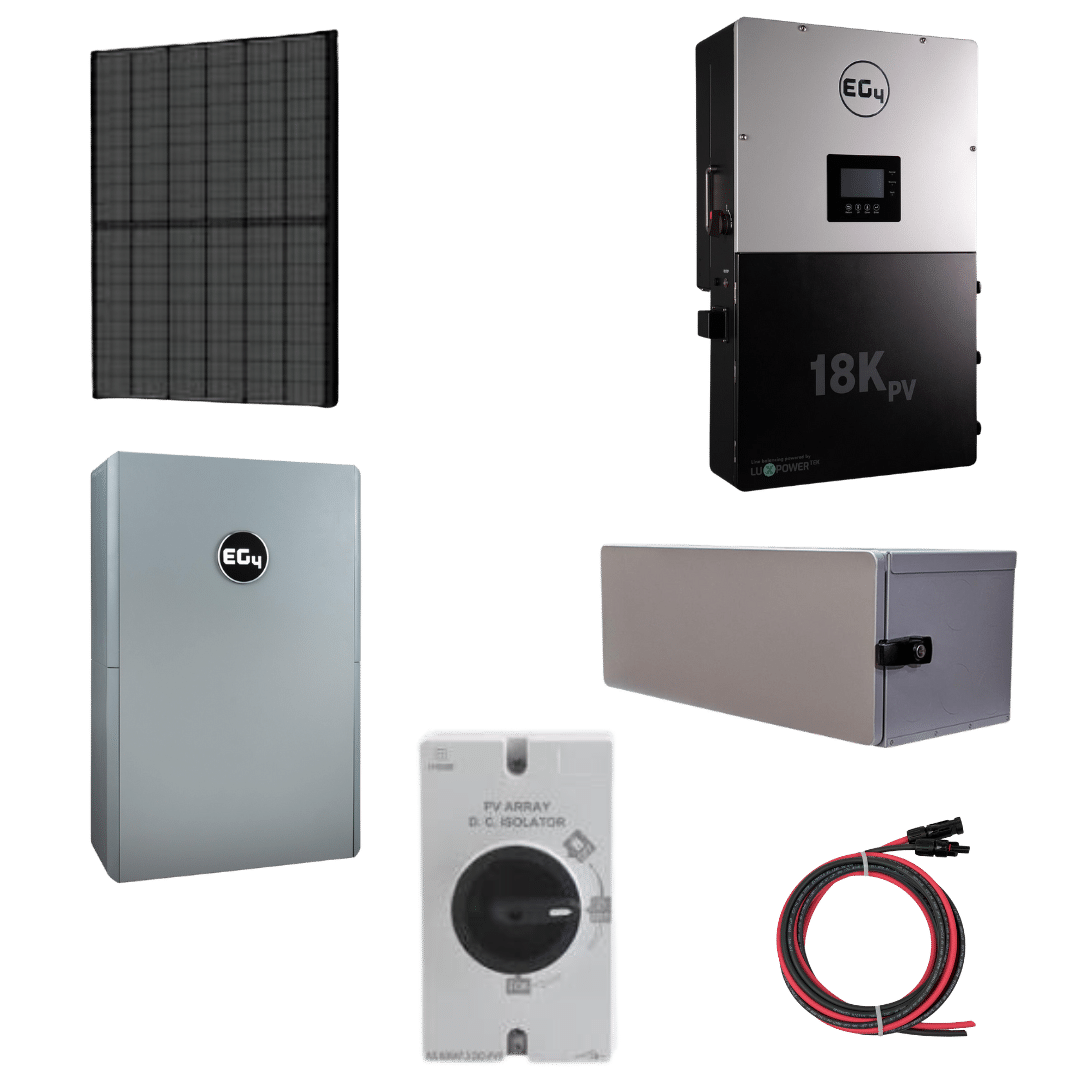

EG4 18KPV w/17.5KW Panels & 14.3KWH Battery Storage Kit
EG4 18KPV w/17.5KW Panels & 14.3KWH Battery Storage Kit
What's included:
- EG4 18KPV inverter
- 14.3KWH of EG4 14.3KWH Indoor Heated WallMount LiFePO4 Battery
- 17.5KW of solar panels (panels will vary based on stock. They will be a black on black residential panel)
- Photo is a representative photo. Panels will appear different than the one pictured.

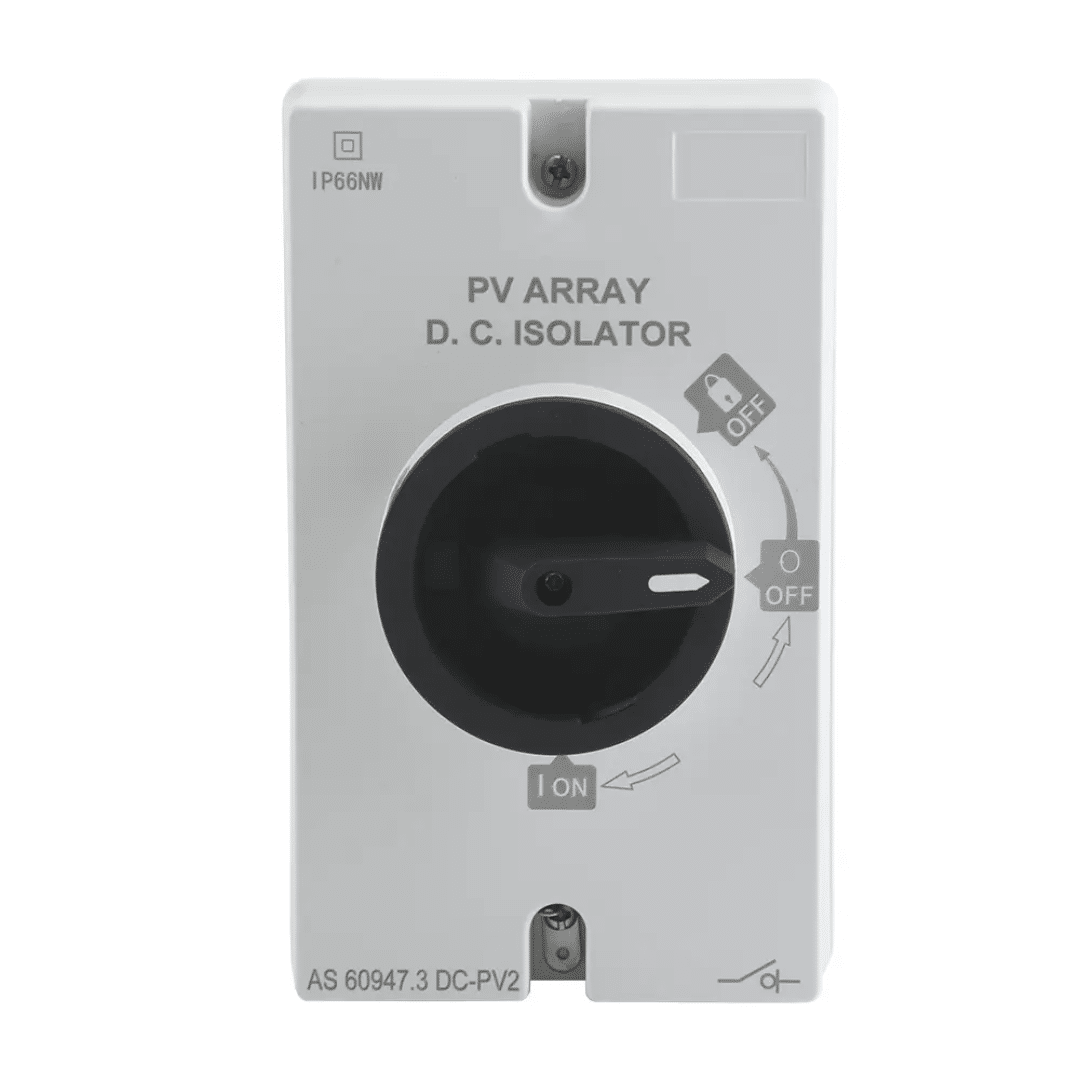

- installation accessories (pv wire, mc4 connections, battery cabling and lugs, pv disconnect)

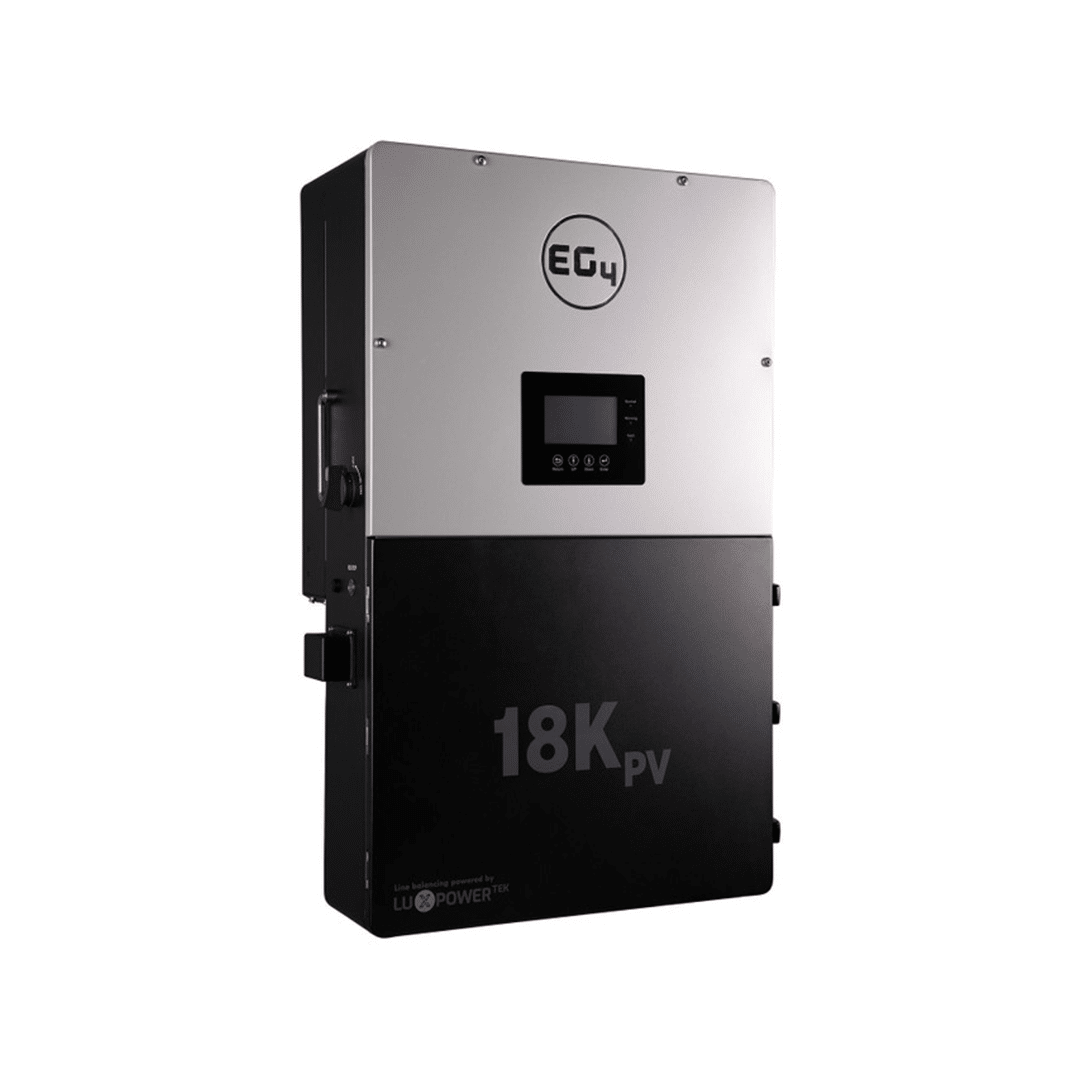

EG4 18KPV Description:
The EG4 18kPV All-In-One Hybrid Inverter - the ultimate power solution for solar projects. With its innovative design, this inverter combines grid-tied and off-grid functionality, eliminating the need for charge controllers or transformers to create a convenient, independent, all-purpose powerhouse. This inverter meets stringent certifications, ensuring safety and performance. Power your home with up to 12,000W output, utilizing solar, battery, and grid power simultaneously. The EG4 18kPV All-In-One Hybrid Inverter also acts as a reliable backup power system during outages.
Enjoy remote monitoring, an enhanced user interface, and easy plug-and-play installation. With stackable capability and comprehensive protection, the EG4 18kPV guarantees optimal performance and safety. Choose the EG4 18kPV All-In-One Hybrid Inverter for unrivaled power and reliability in your solar project. Invest today and unlock the true potential of solar energy.
SPECS:
- 18,000W PV input | 12,000W continuous output
- Utilize both grid-tie and off-grid functionality simultaneously
- Monitor everything through EG4’s user-friendly mobile app or website
- 3 MPPTs with 600VDC max input each
- User-friendly and configurable LCD display
- Parallel up to 10 units for 120kWs
- Closed loop communication with EG4 & SOK SK48V100 batteries
-
Overload, short circuit, and over temperature protection
-
120/240V split phase output with line balancing
- CEC Certified!
- Benefit from EG4’s 10-year warranty
EG4 Wall mount
The EG4 14.3kWh WallMount All Weather is a robust and versatile energy storage solution designed for both residential and commercial applications. Engineered to withstand a range of environmental conditions, this battery system is ideal for outdoor installations, offering reliable backup power and grid-tied storage. Its advanced lithium iron phosphate (LiFePO4) technology ensures a long lifecycle, high energy density, and enhanced safety. The wall-mounted design maximizes space efficiency, while the all-weather construction provides resilience against harsh elements, making it an excellent choice for sustainable energy setups in diverse climates. With easy integration into solar power systems and user-friendly monitoring features, the EG4 represents a step forward in renewable energy storage solutions.
Features:
- Voltage: 51.2V
- Total Energy Capacity: 14.3kWh
- Capacity: 280Ah
- Charging Voltage (Bulk/Absorb): 56.0V (+/-0.8V) to 56.2V (+/-0.2V)
- Float Voltage: 54V (+/-0.2V)
- Low DC Cutoff: 44.8V (adjustable start from 47V to 45.6V)
- Charging Current: Up to 200A (continuous), recommended range: 60A - 160A
- Discharging Current: Up to 200A (continuous), recommended: 160A
Environmental Parameters
- Charging Range: 32°F to ≈113°F (0°C to ≈45°C)
- Discharging Range: -4°F to ≈122°F (-20°C to ≈50°C)
- Storage Range: -4°F to ≈122°F (-20°C to ≈50°C)
- Ingress Protection: IP20
Charging/Discharging Protection
- Overcharging Protection: >205A (10 sec), >225A (3 sec)
- Temperature Protection: <23°F or >158°F (1 sec), <-5°C or >70°C (1 sec)
General Specifications
- Communication Ports: RS485/CAN Can be customized
- Cycle Life: >8000 Cycles, 80% Depth of Discharge (DOD)
- Design Life: Over 15 Years
- Weight: 282.2 lbs. (128 kg)
- Safety Certifications: UL1973, UL 9540A (Testing)

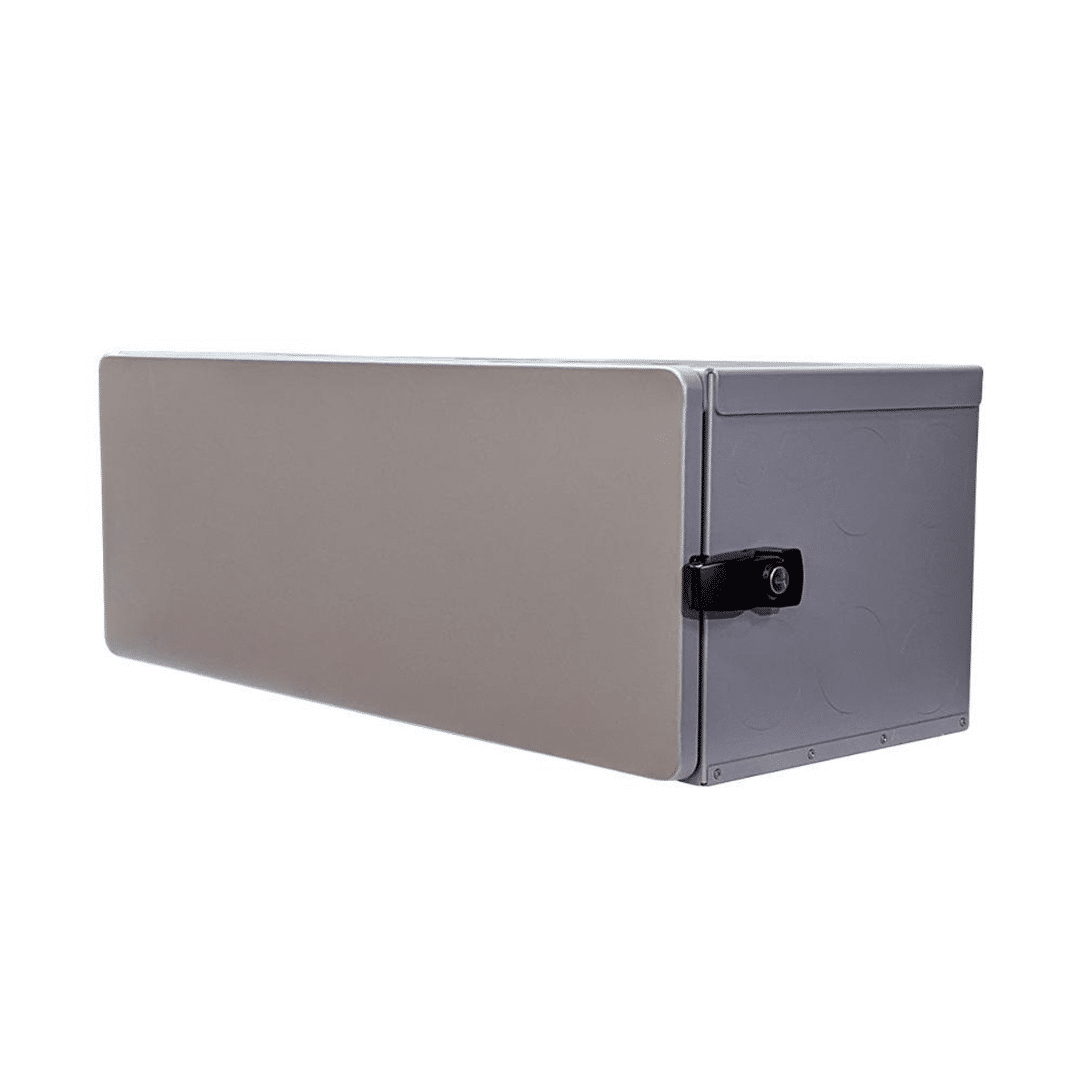

EG4 Electrical Conduit Box
Shield and secure both conduit and wires that are running between the inverter and the battery. The conduit box is a recommended accessory for the EG4 and WallMount battery.
Included:
• Conduit box (x1)
• Conduit box plugs (x9)
• Rubber/plastic grommets between battery and conduit box (x9)
Additional information
| Weight | 2902.8 lbs |
|---|---|
| Dimensions | 84 × 45 × 46 in |
| battery storage | 20.48KW, 28.6KW, 30.72 |
