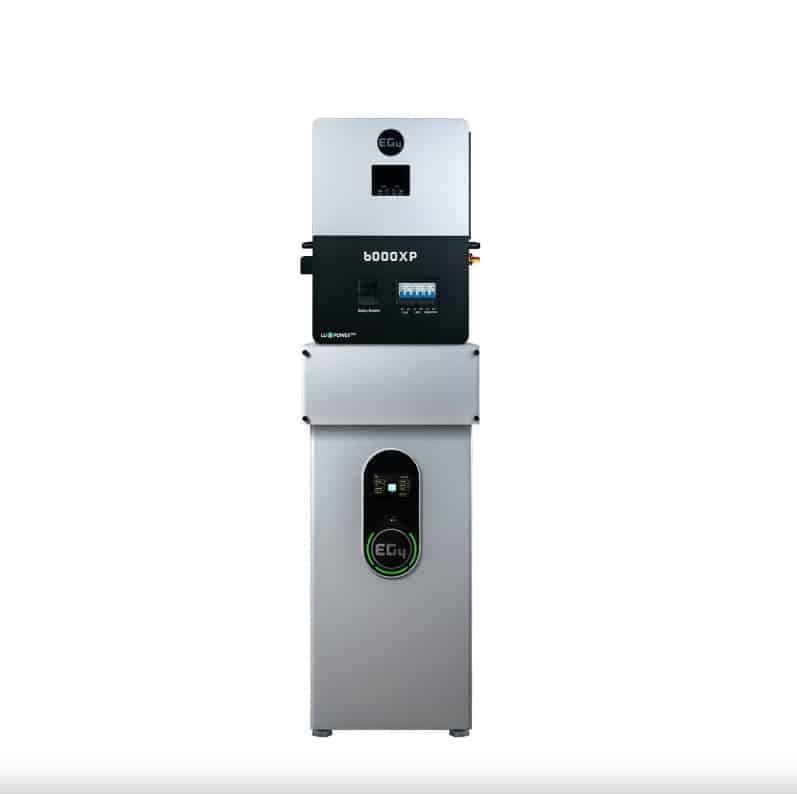

EG4 6000XP Inverter w/ EG4 Indoor WallMount 14.3kWh Battery Kit

The EG4 6000XP is a 48V 120/240V split-phase, off-grid inverter/charger with a built-in solar charge controller. It boasts the ability to take in 8kW of PV power and efficiently deliver 6kW of power, all while charging your battery bank. You can parallel up to 16 units to achieve an impressive 96kW of output power and control multiple stations and units using the new EG4 monitoring software.

Features:

Split Phase 120V/240V 48V DC
6000W Of Inverting Power and 8000W of PV Input
Stackable Up To 16 units 96KW
Transformer Free Design
Dedicated Generator Connection
Built in Breakers and Disconnects
Remote Access
5 Year Warranty

Specifications:

AC Output Voltage: 120/240 Volts (Split Phase) AC
Battery Charge Current: 115A
Battery Voltage: 48 Volts DC
Idle Consumption: 50W
Max PV Voltage (Voc): 480V
Nominal Output Power: 6000W
Max PV Input:10,000W
Max Charging Current:125A
Transfer Switch Capacity: 50A
Number of MPPTs:2 (4000W per)
Paralleling:16 units for 96kWs
Listing & Certifications: UL 1741 Certified

The EG4 14.3kWh Indoor LiFePO4 Battery is a high-performance energy storage system designed for low voltage residential applications. It operates at 51.2V and 280AH, providing a substantial 14.3kWh capacity for reliable backup power and energy storage needs. This battery is equipped with a user-friendly onboard LCD for monitoring performance and diagnostics, while dual onboard fire arrestors ensure enhanced safety in critical situations.

For seamless integration into existing setups, the battery features integrated self-heating, allowing it to function efficiently in cooler environments, and integrated 600A busbars to support high-current demands. An optional emergency stop function adds an extra layer of safety, giving users more control in case of emergencies. The advanced Battery Management System (BMS) includes a passive balance function and an advanced battery control method, both of which help optimize battery performance and longevity. This battery is also designed to pair perfectly with EG4 inverters, making it a versatile and dependable choice for various energy storage configurations.

______________________________________________________________________

Kit includes

EG4 6000XP
EG4 14.3KWH Indoor Wallmount
EG4 Indoor Conduit Box

Features:

Voltage: 51.2V
Total Energy Capacity: 14.3kWh
Capacity: 280Ah
Charging Voltage (Bulk/Absorb): 56.0V (+/-0.8V) to 56.2V (+/-0.2V)
Float Voltage: 54V (+/-0.2V)
Low DC Cutoff: 44.8V (adjustable start from 47V to 45.6V)
Charging Current: Up to 200A (continuous), recommended range: 60A - 160A
Discharging Current: Up to 200A (continuous), recommended: 160A

Environmental Parameters

Charging Range: 32°F to ≈113°F (0°C to ≈45°C)
Discharging Range: -4°F to ≈122°F (-20°C to ≈50°C)
Storage Range: -4°F to ≈122°F (-20°C to ≈50°C)
Ingress Protection: IP20

Charging/Discharging Protection

Overcharging Protection: >205A (10 sec), >225A (3 sec)
Temperature Protection: <23°F or >158°F (1 sec), <-5°C or >70°C (1 sec)

General Specifications

Communication Ports: RS485/CAN Can be customized
Cycle Life: >8000 Cycles, 80% Depth of Discharge (DOD)
Design Life: Over 15 Years
Weight: 282.2 lbs. (128 kg)
Safety Certifications: UL1973, UL 9540A (Testing)

EG4 Battery Paralleling Cables

EG4 Battery Paralleling Cables - designed specifically for the EG4 line of batteries. Cable kit is used when adding additional batteries. One per additional battery.
