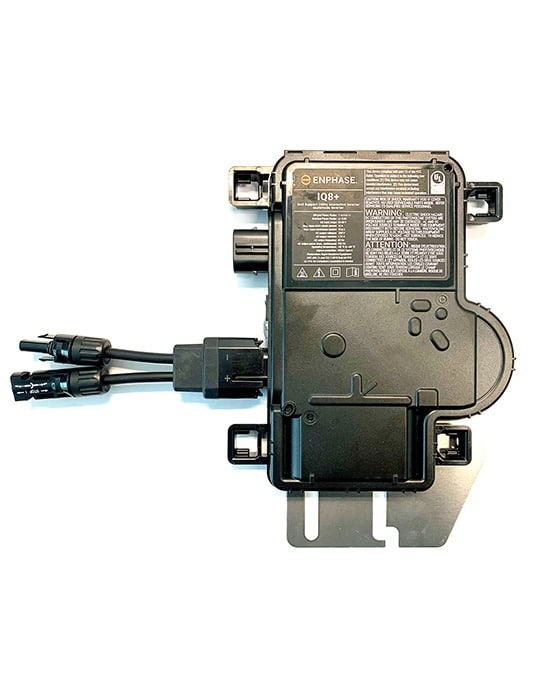

Enphase IQ8+ Microinverter

Part of the Enphase Energy System, IQ8 Series Microinverters integrate with the Enphase IQ Battery, Enphase IQ Gateway, and the Enphase App monitoring and analysis software.

Features:

• Easy to Install - Lightweight and simple. Faster installation with improved, lighter two-wire cabling.
• Productive and Reliable - Optimized for high powered 60-cell, 72-cell and 96-cell modules. More then a million hours of testing. Class II double-insulated enclosure.
• Connect PV modules quickly and easily to IQ8 Series Microinverters using the included Q-DCC-2 adapter cable with plug-n-play MC4 connectors.
• ModelIQ8+
• Peak output power: 300 VA
• Input power: 235 - 440+ W
• Maximum continuous output power: 290 VA
• Operating range: 25 - 58 V
• Length 212.00 mm
• Width 176.00 mm
• Height 30.20 mm
• Weight 2.38 lbs

Inverter Specifications:

• Inverter Type Grid-Tie Microinverter
• Maximum/Peak Efficiency [%]97%
• CEC weighted efficiency [%]97.0%
• Max. Input Voltage [V]60
• Min. DC voltage / start voltage [V]22 V / 60 V
• AC Power Rating [W]295
• Nominal AC Frequency [Hz], range [Hz-Hz]60 Hz
• Max Microinverters Units per xA string20A string: @208VAC 11 units (single-phase) and @240VAC 13 units
• NEMA Enclosure Rating Outdoor - NEMA 250, type 6 (IP67)
• Cooling Method Natural convection - No fans
• Ambient Temperature Range [°C(°F)]-40ºC to +65ºC
• Operating Humidity [%]4% to 100% (condensing)
• Compliances UL 62109-1, UL1741/IEEE1547, FCC Part 15 Class B, ICES-0003 Class B

Click below for Datasheet

Datasheet
