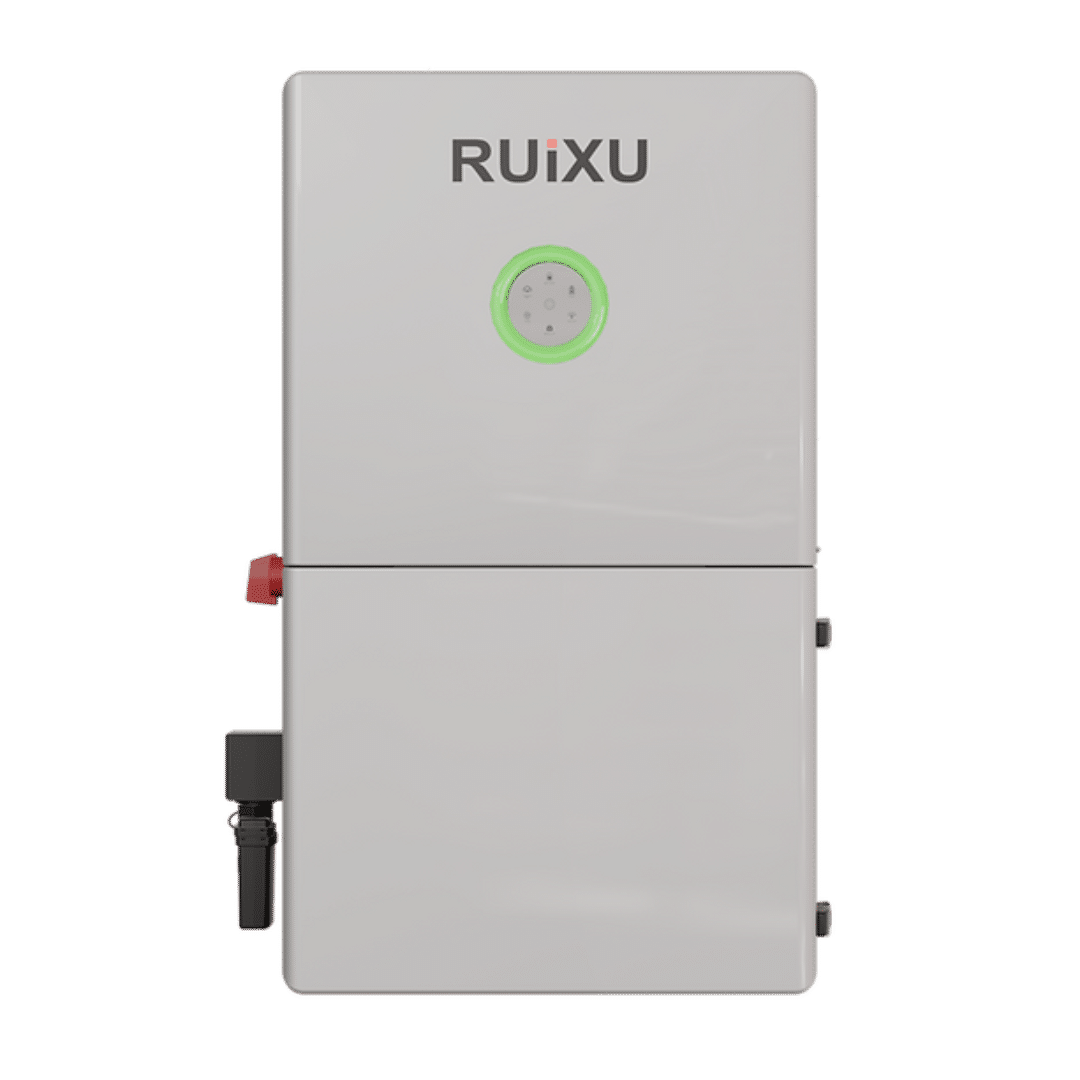

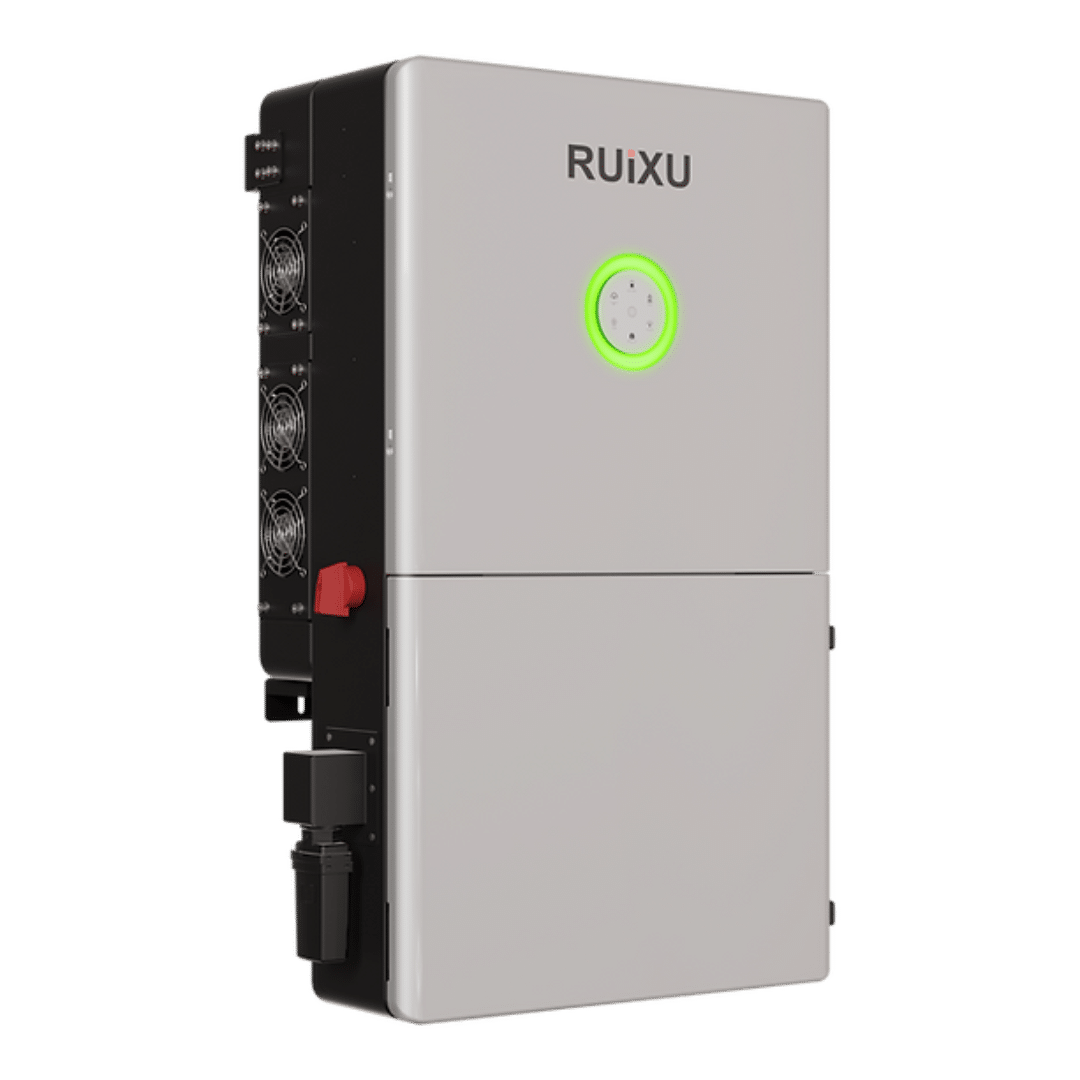

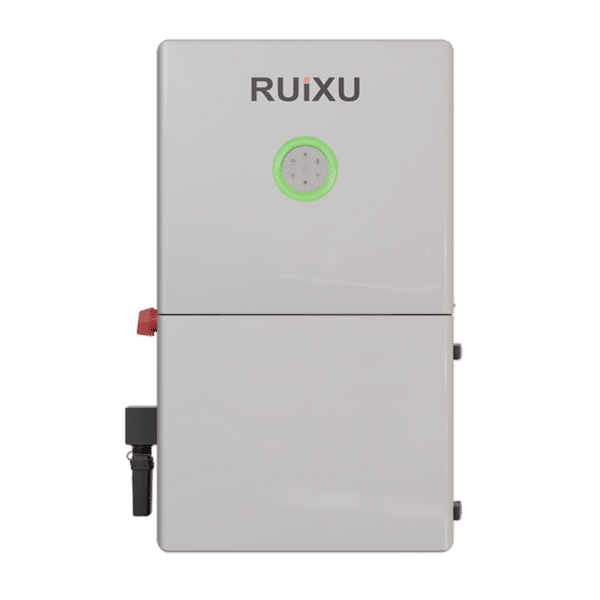

RUiXU Split Phase Hybrid Inverter | 11.4KW Output | 17.1KW PV INPUT | RX-12K | UL1741

RUiXU Split Phase Hybrid Inverter | 17.1KW PV INPUT | RX-12K | UL1741

Description:

RUiXU RX-12K suitable for the US market split phase grid, photovoltaic input supports 1.5DC /AC ratio, battery input 48V flexible battery configuration, Up to 11.4kW output integrated 200A transfer Relay to support whole home backup power.

1.AC COUPLING CAPABILITY
support to quickly retrofit existing solar systems (on-grid & off-grid)

2.ALL-IN-ONE HYBRID INVERTER
Capable of running entirely off the grid, using grid assist, or selling power back to the grid.

3.HIGH FREQUENCY, SPLIT-PHASE OUTPUT
Allows for 120/240V single unit or 120/208 service operation

4.GENERATOR-COMPATIBLE
Grid & diesel generator separately connected, support storing energy from diesel generator

5.HIGH OUTPUT POWER
Up to 11.4kW output intergrated 200A transfer  Relay , support whole home backup power.

6. RAPID SHUTDOWN FUNCTION

7.IP65
IP65 protection,support indoor and outdoor installlation.

8.MULTIPLE BATTERY COMPATIBILITY
Lithium battery and lead acid battery compatibility

9.MPPT
Up to 4MPPTs

10.UPS
With UPS function switch time ≤ 20ms

(1) RX-12K 12kW Inverter

(1) 200CM CAT6 Communcation cable connect with battery

(1) Operation manual

(1) Wifi dongle

RUIXU Split Phase Hybrid Inverter User Manual
