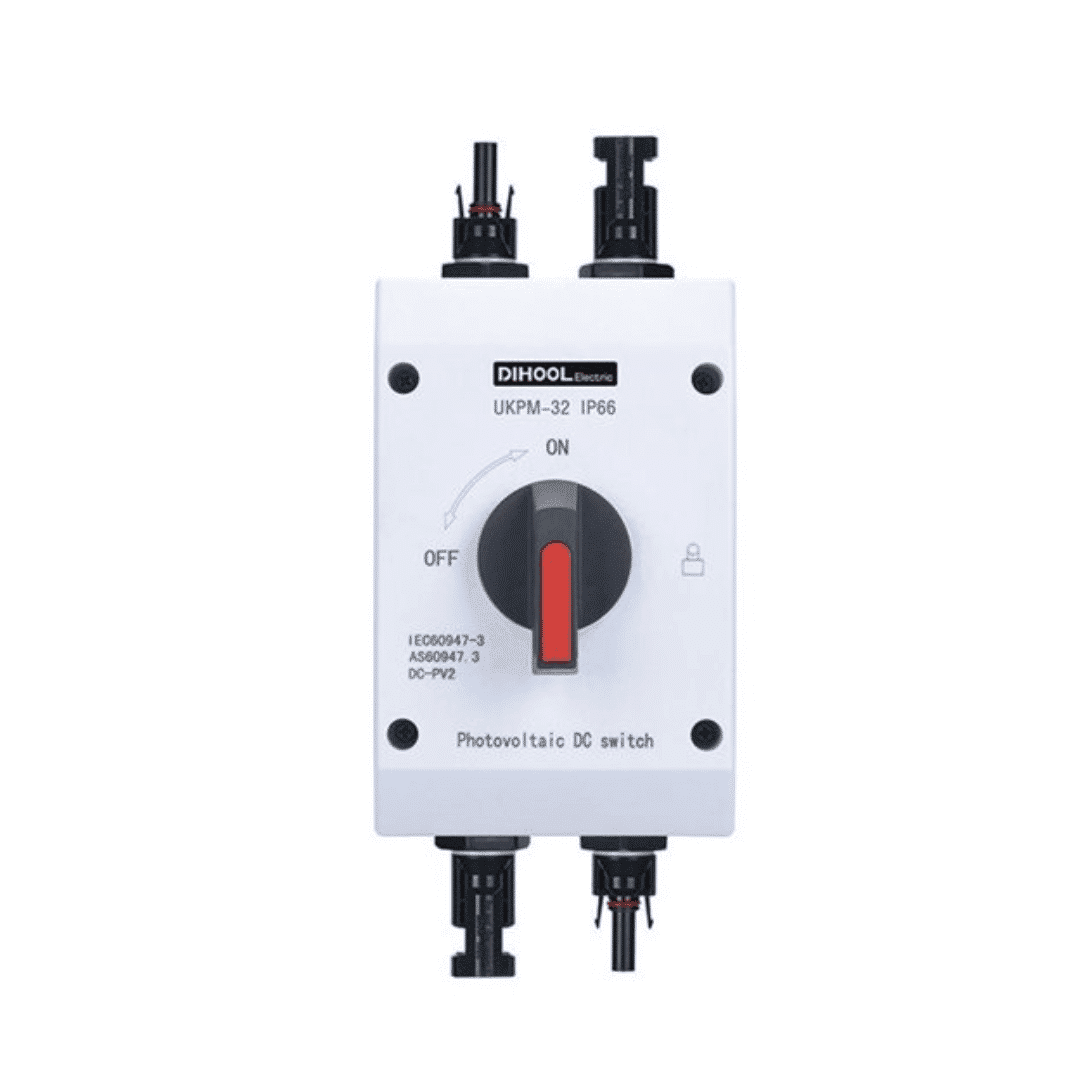

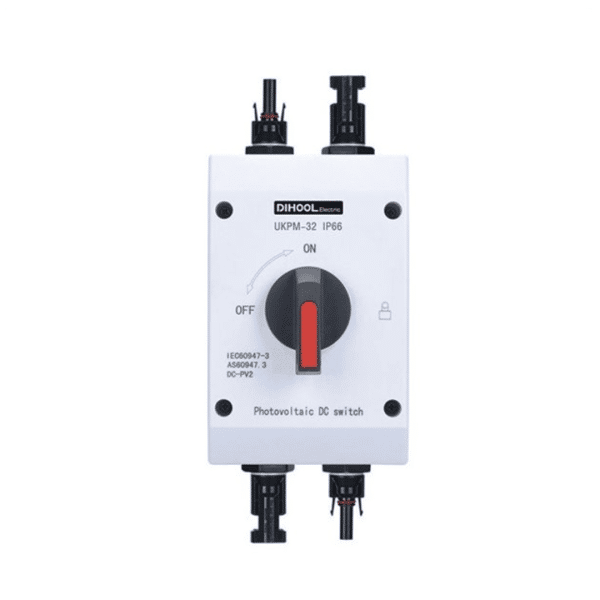

Solar PV Combiner 32A DC Disconnect Switch

Features:
*The DC main switch is used to switch off all poles of the solar module. It is installed on the string line between the module and the grid inverter or charge controller. This is a high quality circuit breaker. Depending on the configuration, it can switch switching currents of up to 32A at voltages of up to 1200V.
*4-pin version
*Switch can be locked in off position
*High-quality, impact-resistant, UV-resistant housing
*Ground connection
*Rail installation, easy to use
*Reliable electrical performance, durable
*Excellent outdoor waterproof performance, IP66

Specifications:
Model: 32A
Number of inputs: 1
Function: All-pole disconnection
Certification/Standard: CE
Maximum rated current: 32A
Maximum Rated Voltage: 1200V
Maximum Isolation Voltage: 1200V
Protection class: IP66
