Tamarack Ground Mount Kit A – 3 Modules – 140-IN – for 4 Posts
$475.00
-
The Tamarack Ground Mount Kits allow for two design configurations, either three or four modules per column in landscape orientation (long side of the modules parallel to the ground). The system comes with all parts needed except for the pipe and concrete. Assembly is quick and easy and can be used on almost any terrain.
- Description
- Additional information
- Specifications
- What's Included
- Datasheets / manuals / wiring diagrams
Tamarack Ground Mount System
Save Time and Money
Kit A is for the first column, Kit B is for each additional column
Low-cost rail-based PV module mounting system provides easy installation, simple wire management, great strength and economical shipping.
Simple To Design
- Arrays can be in columns of 3 or 4 module high and any width required
UL 2703 Listed
- All components meet the UL standards and have a Class A Fire Rating for Type 1 and 2 modules.
Easy to Configure
- Unlimited system size with tilt angles from 0 to 45 degrees
Easy Wire Management
- PV cables and wiring for module-level electronics fits inside rails to avoid time-consuming wire management
Easy to install
- No welding or drilling and two wrench sizes fit all fasteners
PE Certified
- Pre-stamped engineering letters available for most states.
Visually Appealing
- Visually Appealing Simple to adjust for perfect alignment, even if the surface is irregular
Extremely Robust
- For use in locations with wind speeds up to 170 MPH and ground snow loads of up to 70 PSF
Not included with Ground Mount Kit: 2-inch schedule 40 pipe and concrete
Mount modules with frame thickness between 30mm and 40mm. Deeper module frames can be used by adding 50/50+ mounting clamps (Item# 89907, sold separately). Maximum module width: 46.16-IN on 3-module kits / 45-IN on 4-module kits.
Additional information
| Weight | 42 lbs |
|---|---|
| Dimensions | 72 × 8 × 5 in |
Specifications
Features:
- Utilizes our Heavy-duty 3.1 Mill-finish rails.
- Mount up to 64 modules on a single structure.
- Rated for up to 170 MPH wind speed and 70 psf of snow load.
- Mount typical modules with frame thickness between 30mm and 40mm.

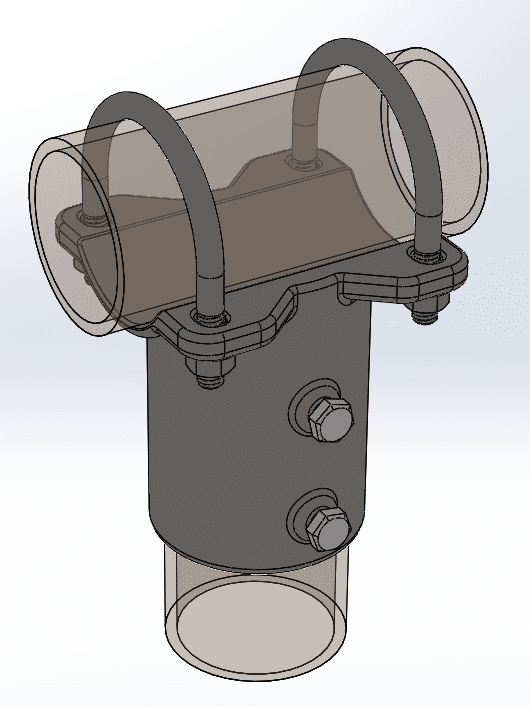

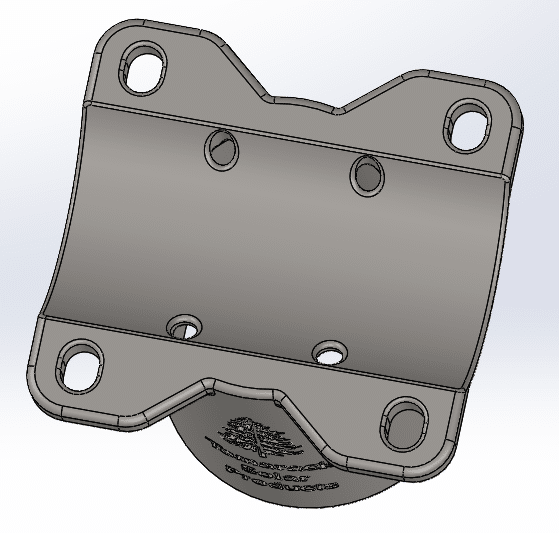

- Kit includes all parts required except: Swivel Tee-Fittings for cross bracing, if needed:
- 2-inch Schedule-40 pipe
- Concrete
- Sites with a ground slope greater than 15 degree may require additional engineering certification.
- Some situations require cross bracing – use our sizing calculator (QR code on next page) or give us a call for more information.
- Maximum module width: 46.16-IN on 3-module kits / 45-IN on 4-module kits.
- UPS Shippable
What's Included
- Qty 4 70″ rails,
- Qty 4 2″ Pipe Caps
- Qty 2 Splices
- Qty 4 Pipe Mounts,
- Qty 8 5050 Clamps
- Qty 4 End Caps
- Qty 8 Module Lead Clips
- Qty 1 Ground Lug
Datasheets / manuals / wiring diagrams
Datasheet
Tamarack-Solar-Ground-Mount-System-Installation-Manual Tamarack-Solar-Ground-Mount-Kit-Data-Sheet
Manual
