Tamarack Solar Ground Mount Kit for 3 First Column KIT A

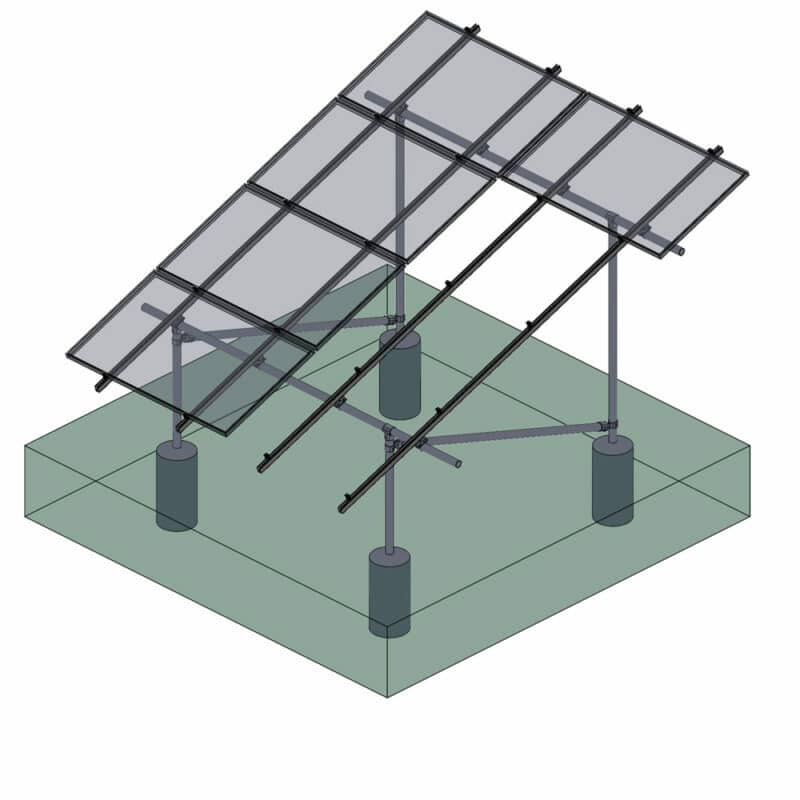

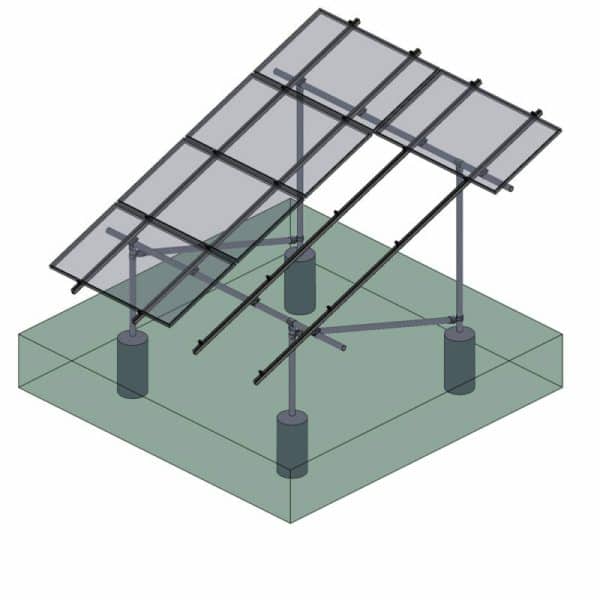

The Tamarack Ground Mount Kits allow for two design configurations, either three or four modules per column in landscape orientation (long side of the modules parallel to the ground).

Rails for 3 modules consist of two 66-inch 3.1 rails connected with a Rail Splice. The maximum module with that can be accommodated on this rail length is 43-inches.

The system comes with all parts needed except for the pipe and concrete. Assembly is quick and easy and can be used on almost any terrain.

• Simple Design - Arrays can be in columns of 3 or 4 module high and any width required
• Easy to install - No welding or drilling and two wrench sizes fit all fasteners
• UL 2703 Listed - All components meet the UL 2703 standards for bonding and grounding
• PE Certified - Pre-stamped engineering letters available for most states
• Easy to configure - Unlimited system size with tilt angles from 0 to 45 degrees
• Visually Appealing - Simple to adjust for perfect alignment, even if the surface is irregular
• Simple Wire Management - PV cables and wiring for module-level electronics fits inside rails to avoid time-consuming wire management
• Extremely Robust - For use in locations with wind speeds up to 170 MPH and ground snow loads of up to 50 PSF

Parts included in the kit:

• (4) 66" rails
• (4) 2" Tee-Fittings
• (2) Splices
• (4) Pipe Mounts
• (8) 5050Clamps
• (4) End Caps
• (8) Module Lead Clips
• (1) Ground Clamp
