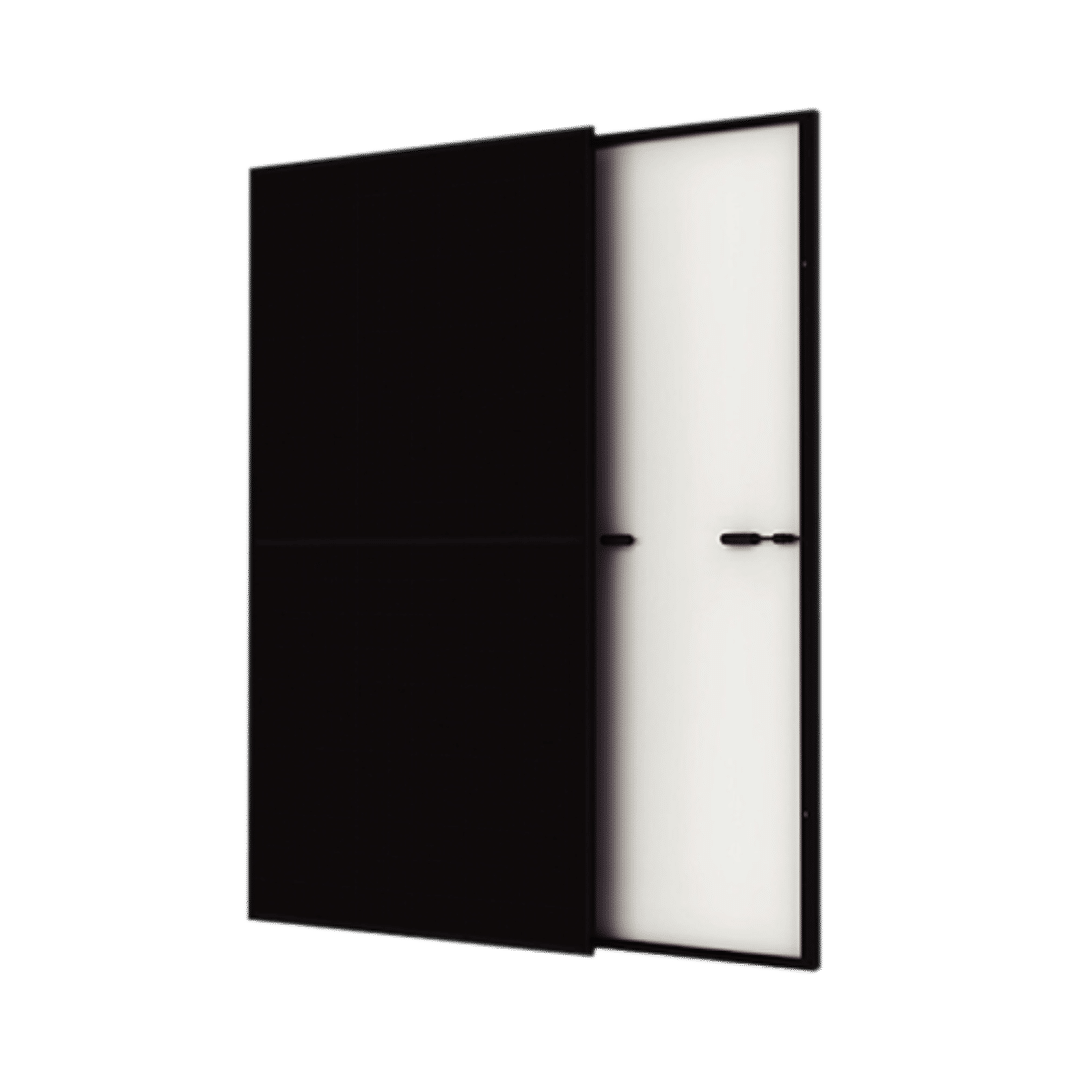

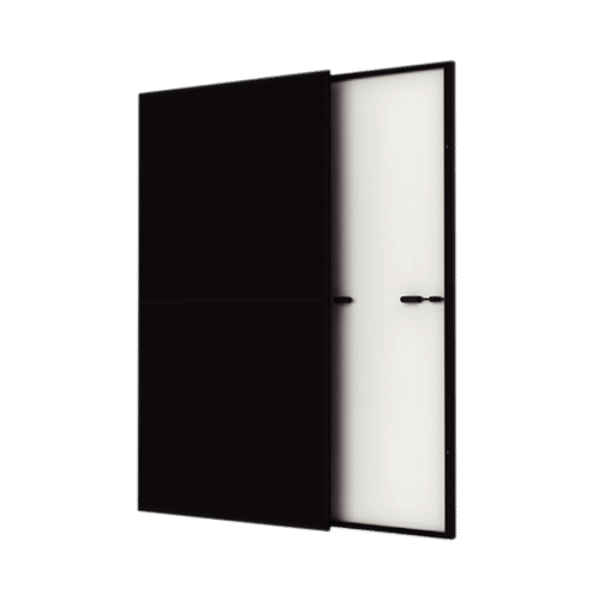

Unused out of box Trina 330W 120 Half Cell Solar Panel

$100.00

-

Out of stock

Purchase & earn 100 points!

Unused out of box Trina 330W 120 Half Cell Solar Panel

Unused out of box Trina 330W 120 Half Cell Solar Panel

Trina Solar DD06M series modules feature half cut cell architecture with a split center mounted J-Box layout. Split series cell layout improves module resilience and reduces the impact of partial shade. These modules include 1200mm cables - compatible with landscape layout.

Founded in 1997, Trina Solar is the world’s leading comprehensive solutions provider for solar energy. We believe close cooperation with our partners is critical to success. Trina Solar now distributes its PV products to over 60 countries all over the world. Trina Solar is able to provide exceptional service to each customer in each market and supplement our innovative, reliable products with the backing of Trina Solar as a strong, bankable partner. We are committed to building strategic, mutually beneficial collaboration with installers, developers, distributors and other partners.

Features

  • High Power Output - Reduce BOS cost with high power bin and module efficiency. New cell string layout and split junction box location reduces the energy loss caused by inter-row shading. Lower resistance of half-cut cells and increased MBB (Multi Busbar) reflectance ensure higher power.
  • High Efficiency & Low LCOE - Excellent 3rd party validated IAM and low light performance with cell process and module material optimization. Low Pmax temp coefficient (-0.36%) increases energy production. Better ani-shading performance and lower operating temperature.
  • Excellent Aesthetics & Easy Installation - Designed for superior rooftop aesthetics. Thinner wires give an eye catching all black look. Safe and easy to transport, handle and install. Certified to perform in highly challenging environments.

Panel Specifications

Mechanical Data
Technology: Monocrystalline (Mono)
Dimensions:
66.85 x 39.53 x 1.38 inches
Weight: 41.21 lbs
Front Glass: 32 mm, High Transmission, AR Coated Tempered
Encapsulant Material: EVA
Backsheet: Black
Frame: Anodized Aluminum Alloy (Black)
Junction Box: IP68 Rated
Cables: Photovoltatic Technology Cable 4.0mm², 1000mm
Connector: MC4



Electrical Data
Maximum Power (Pmax): 330 Watts
Power Output Tolerance (Pmax): 0/+5
Maximum Power Voltage (Vmpp): 33.8 Volts
Maximum Power Current (Impp): 9.76 Amps
Open Circuit Voltage (Voc): 40.6 Amps
Short Circuit Voltage (Isc): 10.4 Amps
Module Efficiency: 19.4%



Additional information

Weight 45 lbs
Dimensions 67 × 40 × 1.4 in
Brand

Cell Type

Condition

On-Off-Grid

,

Warranty

Wattage

Datasheets / manuals / wiring diagrams

Datasheet
