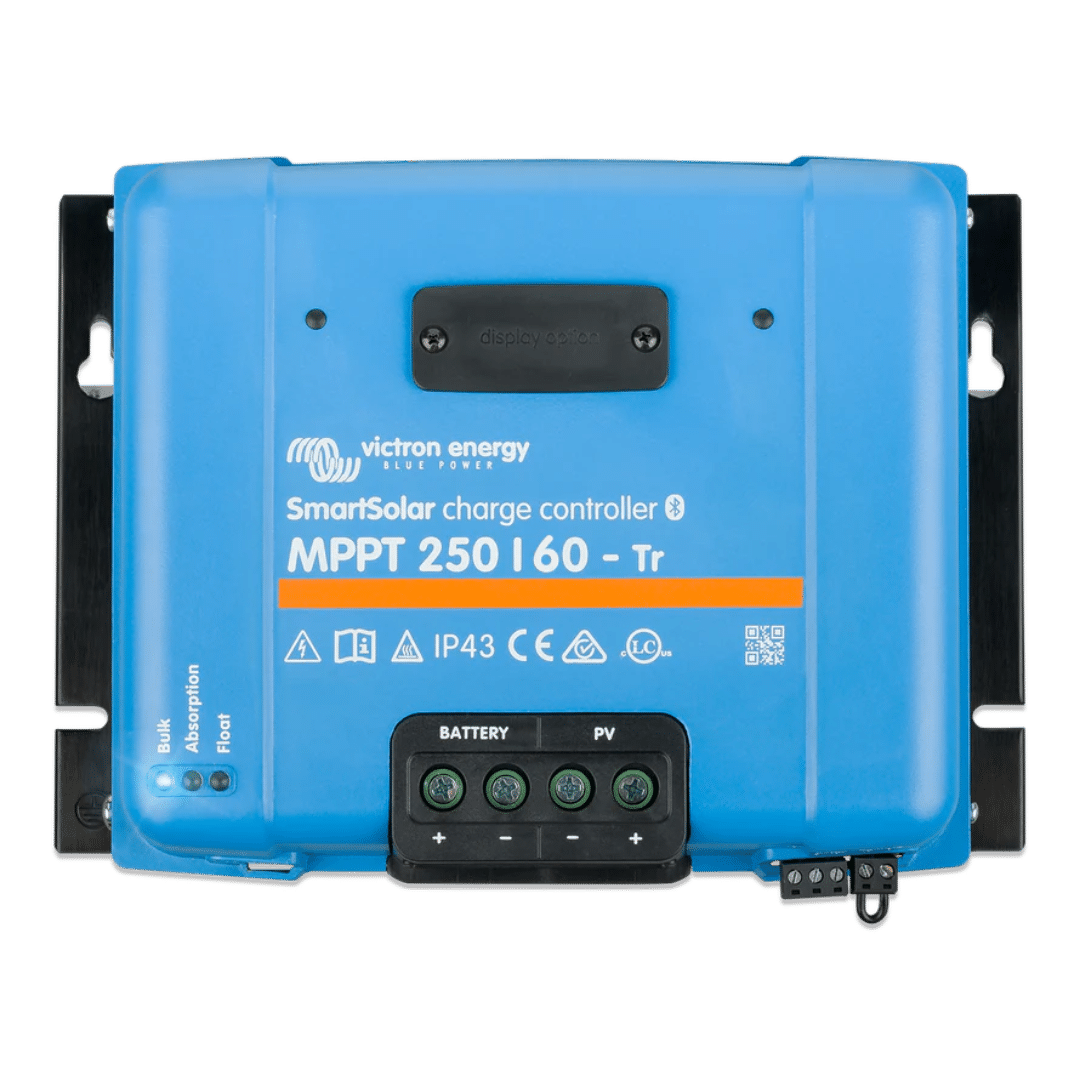

Victron 60A 250/60 Smart Charge Controller

Victron 60A 250/60 Smart Charge Controller

Description:

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.

Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by Bluetooth-pairing with a LoRaWAN(long-range wide area network) device, available optionally.

By adding the SmartSolar Control Display you will be able to check the status of your Charger and battery-storage at a glance. Simply plug it into the face of your MPPT charger to provide you with real-time monitoring and set-up capabilities.

Specifications:

• Battery Voltage: 12V/24V/48V Auto Select (software tool needed for 36V)
• Rated Charging Current:  60A
• Maximum PV Short Circuit Current:  35A
• Maximum PV Open Circuit Voltage:  250V
• Nominal PV Power (12V System):  860W
• Nominal PV Power (24V System):  1720W
• Nominal PV Power (36V System):  2580W
• Nominal PV Power (48V System):  2440W
• Operating Temperature Range: -30 to 60°C (-22 to 140°F)
• Maximum Efficiency:  99%
• Self-Consumption:  <35mA @ 12V / 20mA @ 48V
• Data Communication Port:  VE.Direct or Bluetooth
• Charging Algorithm:  Multi-Stage
• Charging Voltage (Absorption):  14.4V / 28.8V / 43.2V / 57.6V (adjustable)
• Charging Voltage (Float):  13.8V / 27.6V / 41.4V / 55.2V (adjustable)
• Charging Voltage (Equalization):  16.2V / 32.4V / 48.6V / 64.8V (adjustable)
• Terminal Connection Size:  2AWG (35mm²)
• Unit Height:  7.28 in (185mm)
• Unit Width:  9.84 in (250mm)
• Unit Depth:  3.74 in (95mm)
• Weight:  7 lbs (3 kg)

Victron Energy SmartSolar MPPT 250/60-Tr Solar Charge Controller Features:

• 60A of MPPT Power!!
• Use the smart phone app to customize settings, view historical data and other important data on a single screen as well update software when new features become available
• VE. Direct communication port for monitoring via Color Control GX, Venus GX or PC
• Advanced Maximum Power Point Detection harvests more power even in shading conditions
• PV Input Range of up to 250V
• Up to 99% conversion effiecncy
• Fully programmable charging algorithm or eight pre-programmed charging algorithms
• Internal temperature sensor
