7KW w/8+ Enphase MicroInverter Grid Tie Kit
$7,910.80
-
7KW w/8+ Enphase MicroInverter Grid Tie Kit

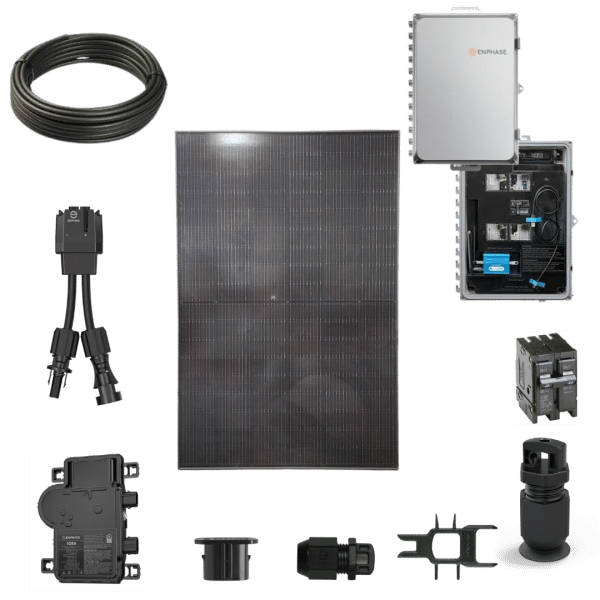

Kit Includes:
- 7KW of solar panels (panels will vary based on stock. They will be a black on black residential panel)
- Photo is a representative photo. Panels will appear different than the one pictured.
- One per panel Enphase IQ8A microinverters
- One per panel Enphase Q Cable and Connectors
- Enphase IQ5 combiner box
- EATON BR220 2-POLE 20A CIRCUIT BREAKER
- Enphase install accessories such as IQ cable clips, disconnect tool, connectors, cabling, etc.
Add Ons (not included):
- K2 Racking for roof installs
- Racking for ground mounts
IQ Combiner 5
The IQ Combiner 5 consolidates interconnection equipment into a single enclosure, and streamlines IQ Series Microinverters and IQ Gateway installation by providing a consistent, pre-wired solution for residential applications. It uses Control Cable wiring for communication and is compatible with IQ System Controller 3/3G and IQ Battery 5P.
The IQ Combiner 5, along with IQ Series Microinverters, the IQ System Controller 3/3G, and the IQ Battery 5P, provides you with a complete, grid-agnostic Enphase Energy System.
Smart
- Includes IQ Gateway for communication and control
- Supports flexible networking: Wi-Fi, Ethernet, or cellular (additional equipment required for cellular)
- Provides production metering (revenue grade) and consumption monitoring
Easy to install
- Mounts to one stud with centered brackets
- Supports bottom, back, and side conduit entry
- Supports up to four 2-pole branch circuits for 240 VAC plug-in breakers (not included)
- 80 A total PV branch circuits
Reliable
- Durable NRTL-certified NEMA type 3R enclosure
- Five-year limited warranty
- Two years labor reimbursement program coverage included
- UL1741 listed
IQ8+ Microinverter (MC4)
Our newest IQ8+ Microinverters are the industry's first grid-forming microinverters with split-phase power conversion capability to convert DC power to AC power efficiently.
The brain of the semiconductor-based microinverter is our proprietary application-specific integrated circuit (ASIC) which enables the microinverter to operate in grid-tied or off-grid modes. This chip is built in advanced 55 nm technology with high-speed digital logic and has super-fast response times to changing loads and grid events, alleviating constraints on battery sizing for home energy systems.
Part of the Enphase Energy System, IQ8+ Microinverters integrate with the Enphase IQ Battery, Enphase IQ Gateway, and the Enphase App monitoring and analysis software.
IQ8+ Microinverters redefine reliability standards with more than one million cumulative hours of power-on testing, enabling an industry-leading limited warranty of up to 25 years.
Connect PV modules quickly and easily to the IQ8 Series Microinverters that have integrated MC4 connectors.
IQ8+ Microinverters are UL Listed as PV Rapid Shutdown equipment and conform with various regulations when installed according to the manufacturer's instructions.
- Lightweight and compact with plug-and-play connectors
- Power line communication (PLC) between components
- Faster installation with simple two-wire cabling
- Produce power even when the grid is down
- More than 1 million cumulative hours of testing
- Class II double-insulated enclosure
- Optimized for the latest high-powered PV modules
- Complies with the latest advanced grid support
- Remote automatic updates for the latest grid requirements
- Configurable to support a wide range of grid profiles
- Meets CA Rule 21 (UL 1741-SA) and IEEE 1547:2018 (UL 1741-SB)
- Required for Sunlight Jump Start
- Peak output power: 300 VA
- Input power: 235 - 440 W
- Maximum continuous output power: 290 VA
- Operating range: 16 – 58 V
Additional information
| Weight | 1154.71 lbs |
|---|---|
| Dimensions | 84 × 45 × 46 in |
