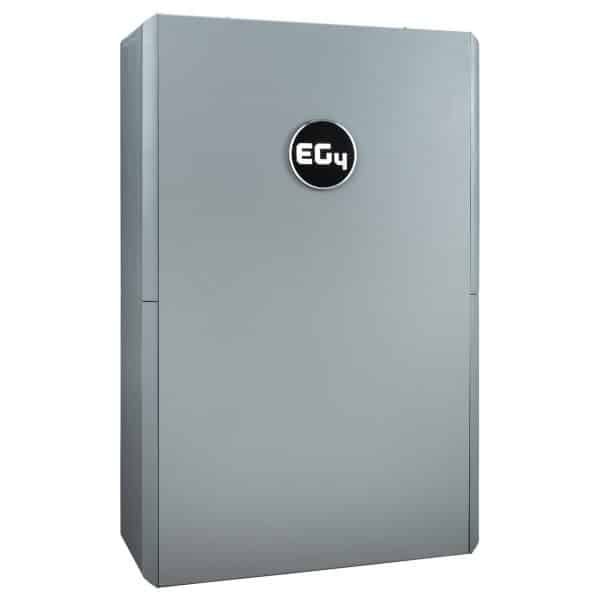

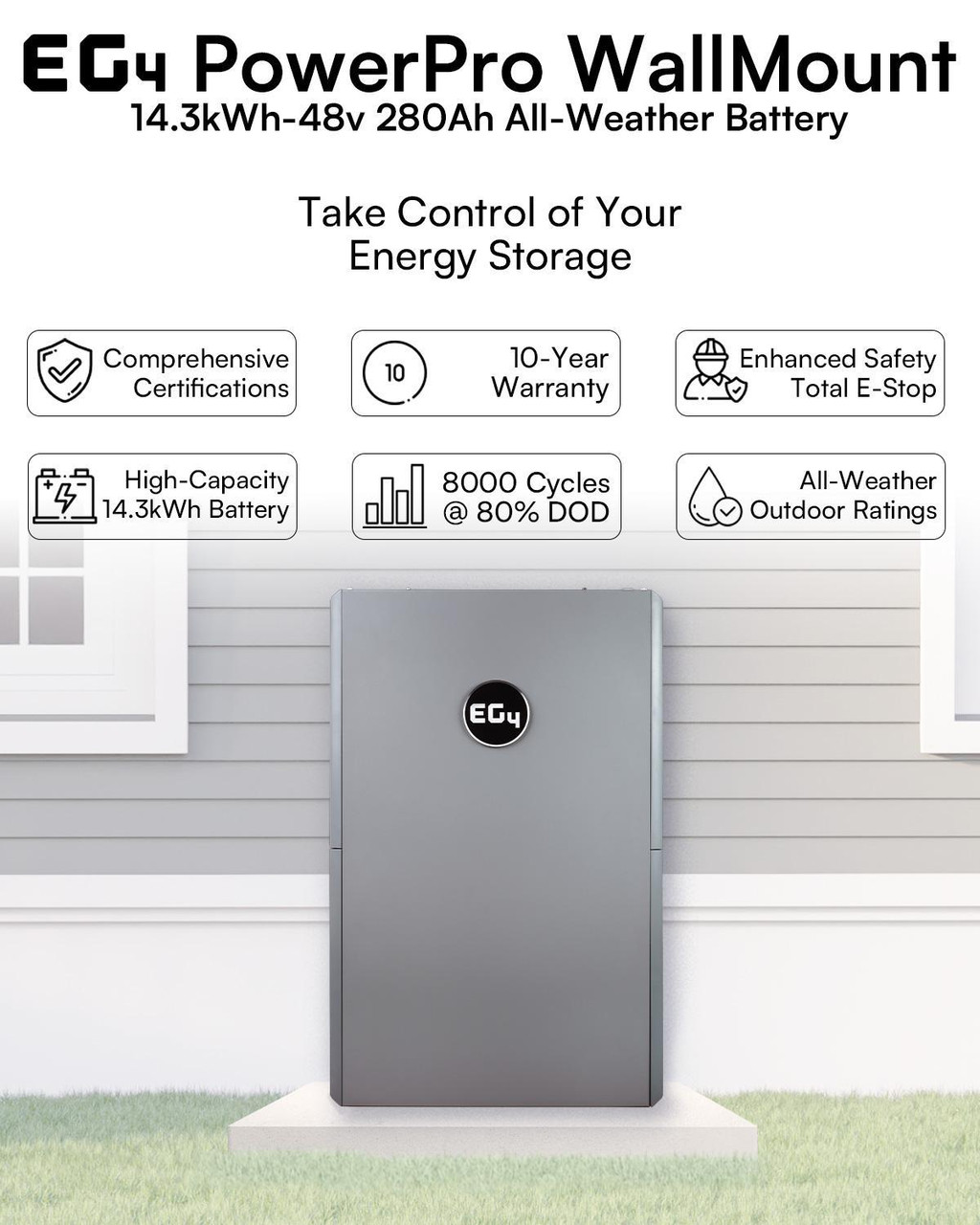

EG4 14.3KWH 48V 280Ah Wallmount All Weather LifePO4

EG4 14.3KWH 48V 280Ah Wallmount All Weather LifePO4 UL1973, UL9450A

Features:

Confident Power

• 10kW delivery, with peak power 10.5kW (10 sec.) & 15.4kW (3 sec.)
• Constant discharge current – 200A
• Over 8000 cycles at 80% DOD with an 82.6Mwh lifetime production

Reliable

• Smart and intelligent BMS for reliability, efficiency and safety
• Integrated self-heating features when needed in low temperature

All-Weather Design

• Perfect for outdoor applications, built to withstand various weather conditions
• Integrated self-heating feature ensures optimal battery performance in low temperatures.
• Weather rated quick connectors (Amphenol)

Safety

• Dual onboard fire arrestors offer fail-safe protection
• Innovative total emergency stop function for instant shutdown by RSD / ESS disconnect / inverter RSD
• 10-year warranty offered by EG4 Electronics.

Seamless Integration

• Can pair with any  hybrid or off-grid inverter in the market
• Designed to pair seamlessly with EG4, Victron, Growatt,
  Megarevo, Luxpower, Deye, and Sol-Ark inverters

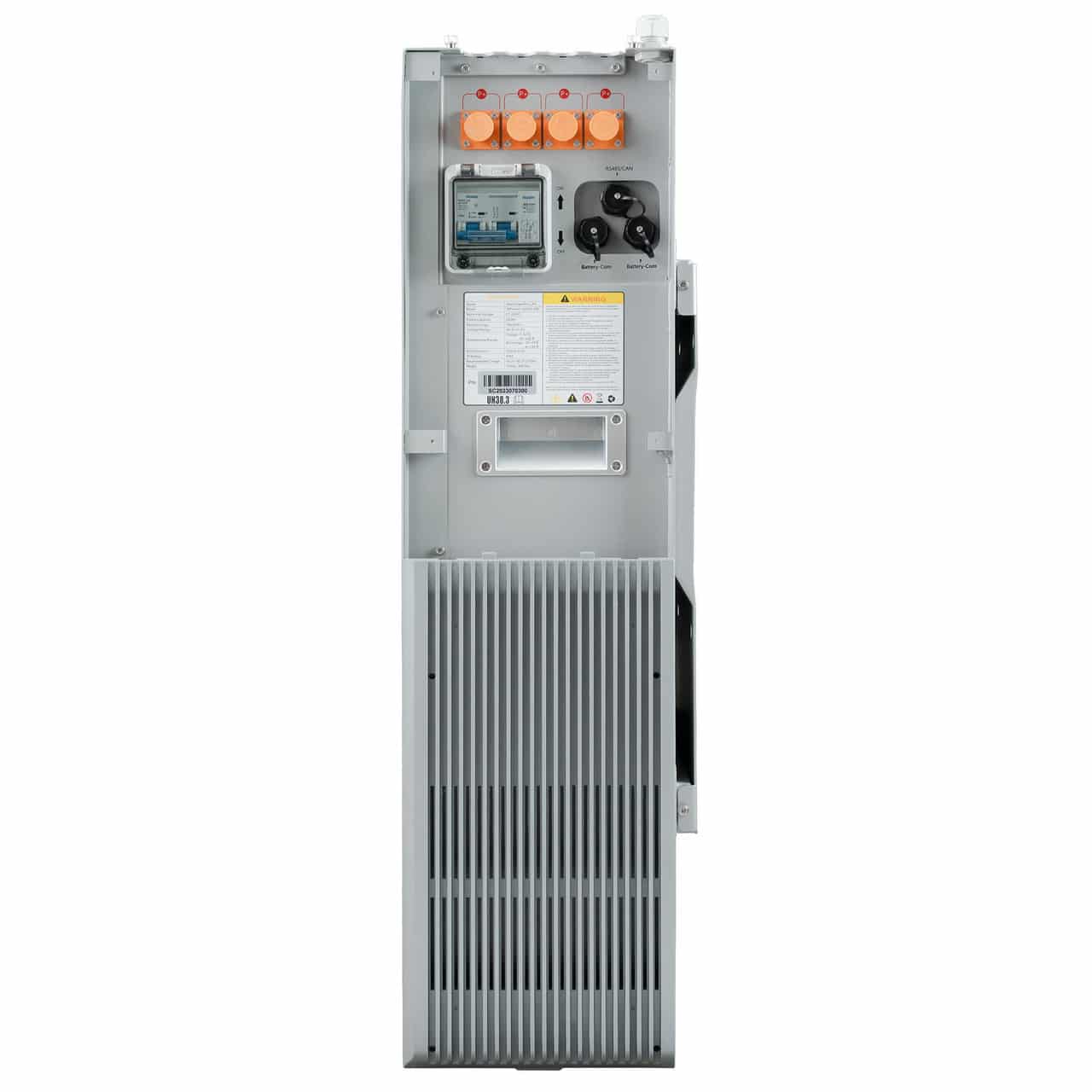

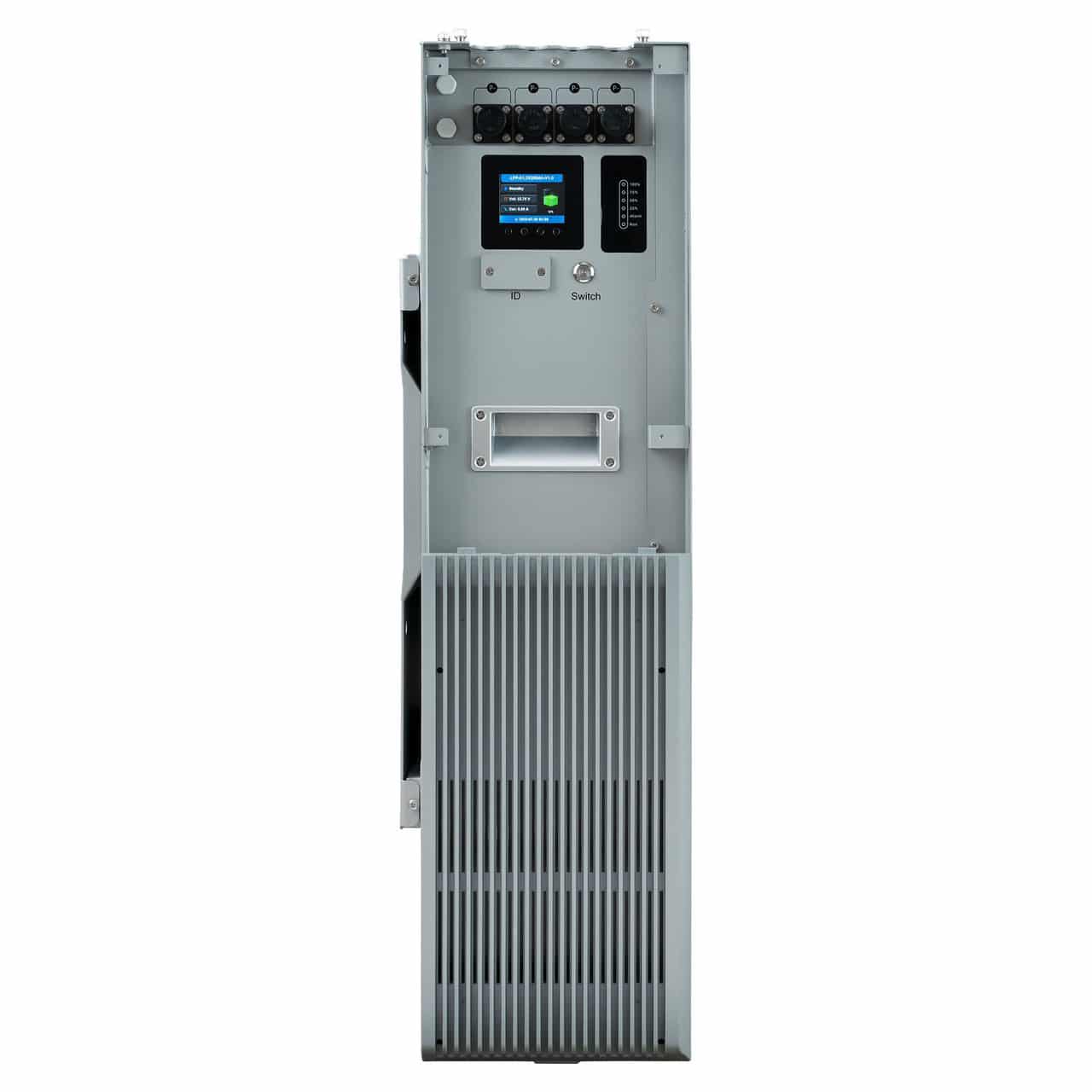

• Onboard LCD touch screen for easy BMS monitoring and communication.
• Quick connect battery cables for fast, safe, and reliable battery connections.

Comprehensive Certifications

• UL9540A Certified, UL1973
• UL9540 with 18kPV: for ESS
  • CN: 5026744
• Outdoor Rating IP65

 ESS

• Optional conduit box addon makes installation with an EG4 18kPV simple
• Turn any ESS into a fully capable Energy Storage System when paired with an EG4 18kPV
• No thermal monitoring, or ventilation needed
• No maintenance

Technical Specifications:

• Model name:  WallMount AllWeather Battery
• Battery Type: LiFePO4 (Lithium Iron Phosphate, Grade A)
• Voltage: 48V (Nominal: 51.2V, Float: 54V)
• Continuous Charge/Discharge Current: 200A (Max)
• Capacity: 14.3kWh
• BMS: 200A
• Weight: 308.6 lbs. / 140Kg



EG4 Battery Paralleling Cables – designed specifically for the EG4 line of batteries.

Includes:

• Red/Orange Positive Battery Parallel Cable (53.1 in.) – x1
• Black Negative Battery Parallel Cable (53.1 in.) – x1
• Parallel Communication Cable (59.1 in.) – x1

_____________________________________________________________

EG4 Conduit Box

Shield and secure both conduit and wires that are running between the inverter and the battery. The conduit box is a recommended accessory for the EG4 WallMount battery.

Included:

• Conduit box (x1)
• Conduit box plugs (x9)
• Rubber/plastic grommets between battery and conduit box (x9)

Used for mating the EG4 WallMount (Both indoor and outdoor) batteries with any EG4 inverter.
