Airspool Solar 12K BTU Hybrid Minisplit Kit 2KW Used Solar Panels
$1,902.00
-
At last! An air conditioner powered by solar makes sense, and Airspool is working to make it easy. Airspool is now Energy Star approved. Your are eligible to receive a 30% tax credit off your purchase via a federal tax credit through the Inflation Reduction Act.
12,000 BTU cooling/14,000 BTU heating; 13.04 EER; 22 SEER2 when on grid.

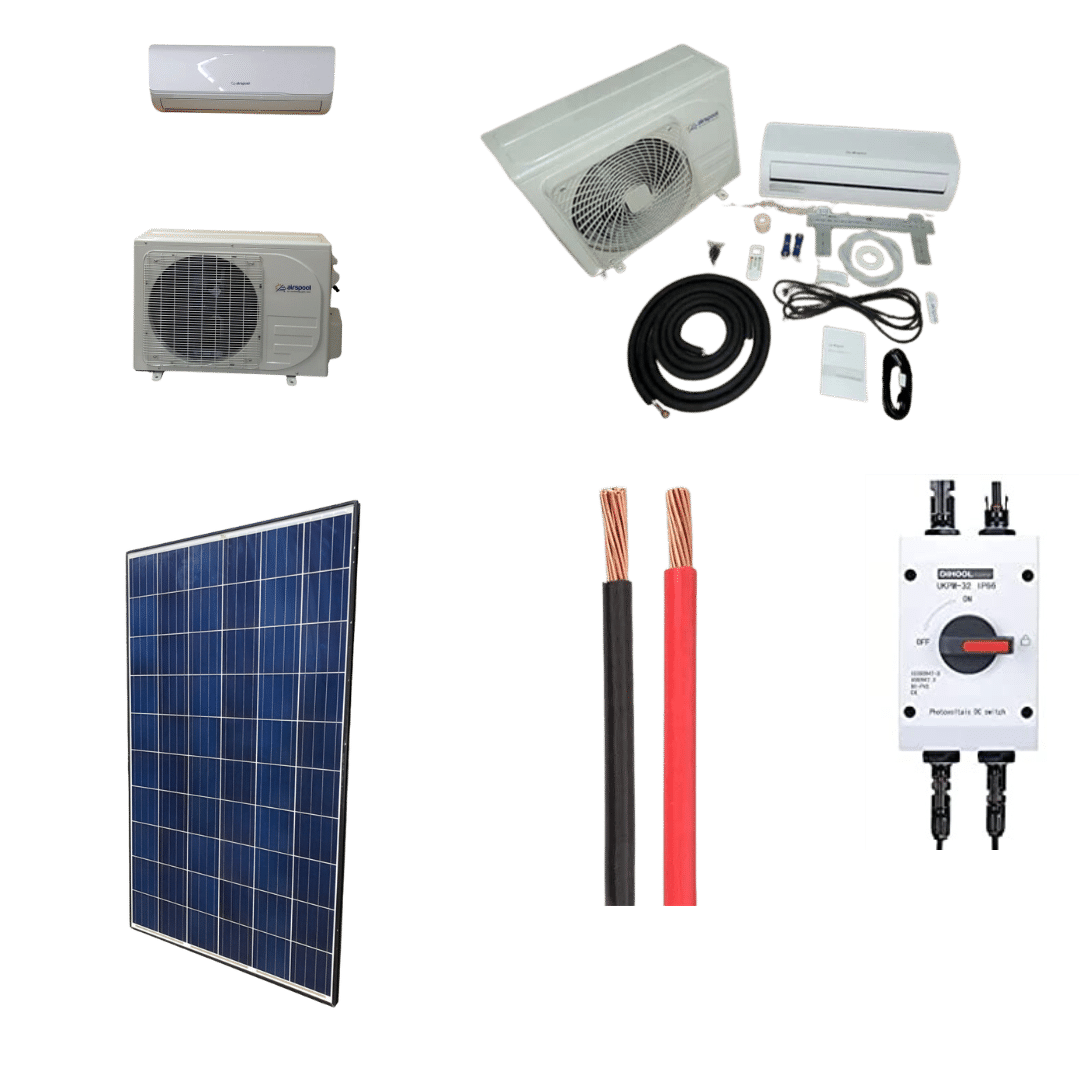

Airspool Solar Hybrid Minisplit Kit 2KW Used Panels
Included in Kit:
1 x Airspool Solar Hybrid AC Unit w/ Heat Pump MS12
8 x SST 250W 60 Cell Poly Solar Panel with snail trails (no manufacturer label)
1 x Solar PV Combiner 32A DC Disconnect Switch
1 x Pair of 10 Gauge PV Wire (50 ft, 2 Pair)
1 x Pair of 10 Gauge PV Wire (5 ft, 2 Pair)
8 x SST 250W 60 Cell Poly Solar Panel with snail trails (no manufacturer label)
1 x Solar PV Combiner 32A DC Disconnect Switch
1 x Pair of 10 Gauge PV Wire (50 ft, 2 Pair)
1 x Pair of 10 Gauge PV Wire (5 ft, 2 Pair)
Solar Panel Specifications:
- Rated Power: 250W
- Open circuit voltage (VOC): 37.6 V
- Max power voltage (VMP): 30.3 V
- Short circuit current (ISC): 8.85 A
- Max power current: 8.27 A
- Power Tolerance 0/+3%
- Maximum system voltage: 600V (UL)
- Fuse Rating: 15 A
- IP65 Junction Box w/MC4 Compatible Connectors
- Frame: Anodized aluminum alloy
- Weight: 41 lbs.
- Dimensions: 64.95 × 39.05 × 1.37 inches (1650 × 992 × 35mm)
12K BTU MInisplit Specificiations:
- Model/Unit Name: MS12
- Operating range -10°C (14°F) </ heating; cooling</58C (135.4°F) T3 design
- Normal coverage area sq. ft. 120 - 200
- Power Supply AC power ph-v-hz 1Ph 115V/50-60HZ
- DC power (solar panels in series) v 80-380V
- DC power current a </=20A
- Recommended solar panels pcs. 4 pc. @ +/-380w/panel
- Rated Cooling Capacity (T1) w 3510 (900-3900)
- btu 12000 (3000-13300)
- Power input (T1) w 940 (190-1270)
- Capacity (T3) w 2910
- btu 9900
- Power input (T3) w 1050
- Rated Heating Capacity w 4100 (1000-4500)
- btu 14000 (3000-15300)
- Power input w 1170 (190-1700)
- T1 EER (w/w)/(btu/w) / 3.75/12.75
- T3 EER (w/w)/(btu/w) / 2.75/9.45
- COP (w/w)/(btu/w) / 3.50/11.95
- Dehumidification capacity pints/day 66 l/h 1.3
- Compressor Model / WHP04200
- Type / 2x ROTARY
- Brand / Highly
- Indoor fan motor Power w 15
- Speed (Turbo/Hi/Mi/Lo) r/min 1300/1200/1100/950
- Indoor air flow (Turbo/Hi/Mi/Lo) cfm 318/285/256/206
- m3/h 540/485/435/350
- Indoor noise level (Turbo) dB(A) 42.5
- Indoor unit Dimension (W×H×D) inches 33.07x8.07x11.6
- mm 840×205×295
- Packing (W×H×D) inches 36.22x11.4x14.17
- mm 920×290×360
- Net weight/Gross weight lbs 19.8/27.6
- Kg 9.0/12.5
- Outdoor fan motor Power w 40
- Speed r/min 880
- Outdoor air flow m3/h 2100
- Outdoor noise level dB(A) <52
- Outdoor unit Dimension (W×H×D) inches 31.56x22.2x12.7
- mm 802×564×323
- Packing (W×H×D) Inches 35.8x24.5x15.9
- mm 910×622×405
- Net/gross weight lbs 73.8/82.7
- kg 33.5/37.5
- Refrigerant type R410A
- Max design pressure psig 623/218
- MPa 4.3/1.5
- Refrigerant pipe Gas side/liquid side (inch) inches 3/8 1/4
- Max. refrigerant pipe length ft. 49.2m 15
- Max. difference in elevation ft. 26m 8
- Drain pipe size mm 16
- Refrigerant connection copper pipe length m 3
- Connection wire length m 4
- Electronic Expansion Valve / Yes
- Loading QTY 40'/ 20' sets 200/85
Additional information
| Weight | 446 lbs |
|---|---|
| Brand | |
| Condition | |
| Warranty |
