K2 Cross Rail Tilt Connector



In stock

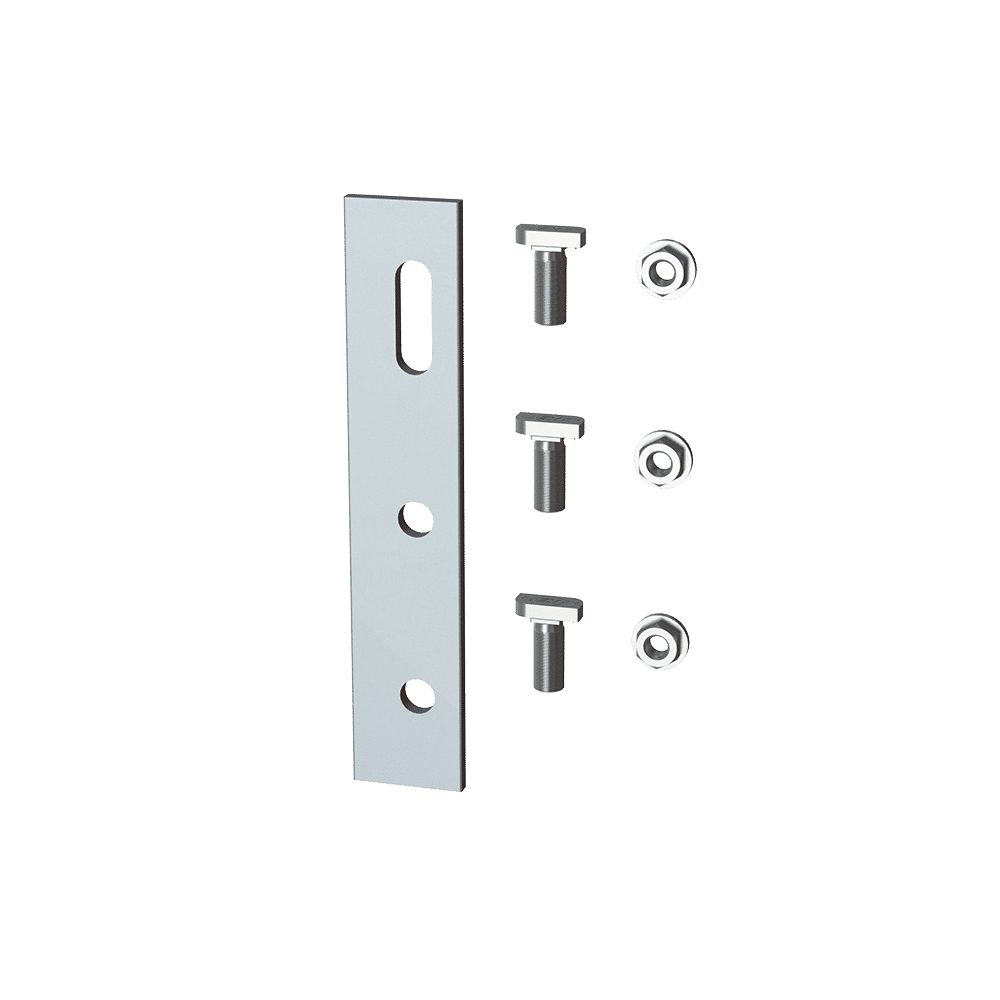

The Tilt Connector Set is an essential component of the CrossRail Tilt Up System. It connects the rear legs to the north/south rails.

The CrossRail 44-X/48-X/48-XL/80 mounting system for photovoltaic assemblies is suitable for pitched roofs. It works with most residential roof types including tile and shingle roofs. This system is compatible with commonly available roof hooks including our own Flat Tile Hook and Tile Hook 3S.

  • UL 2703 Listed for bonding and fire - allows one lug per module row, eliminating cost and labor
  • Aluminum made, high corrosion resistance roof hooks and rail
  • Fast, simple installation with our preassembled universal bonding clamps and low part count

The K2 Tilt Connector is an essential component of the Cross Rail tilt Up System as it connects two pieces of rail together at 90 degrees forming the triangular base of the system. Additionally, this accessory connects the rear legs to the north and south rails.

Additional information

Weight .84 lbs
Dimensions 17 × 2.87 × 1.74 in

Datasheets / manuals / wiring diagrams

Assembly instructions

Product sheet

Technical sheet

In stock

SKU: AccSCRR-K2CrossRailTiltConnector Categories: , ,
