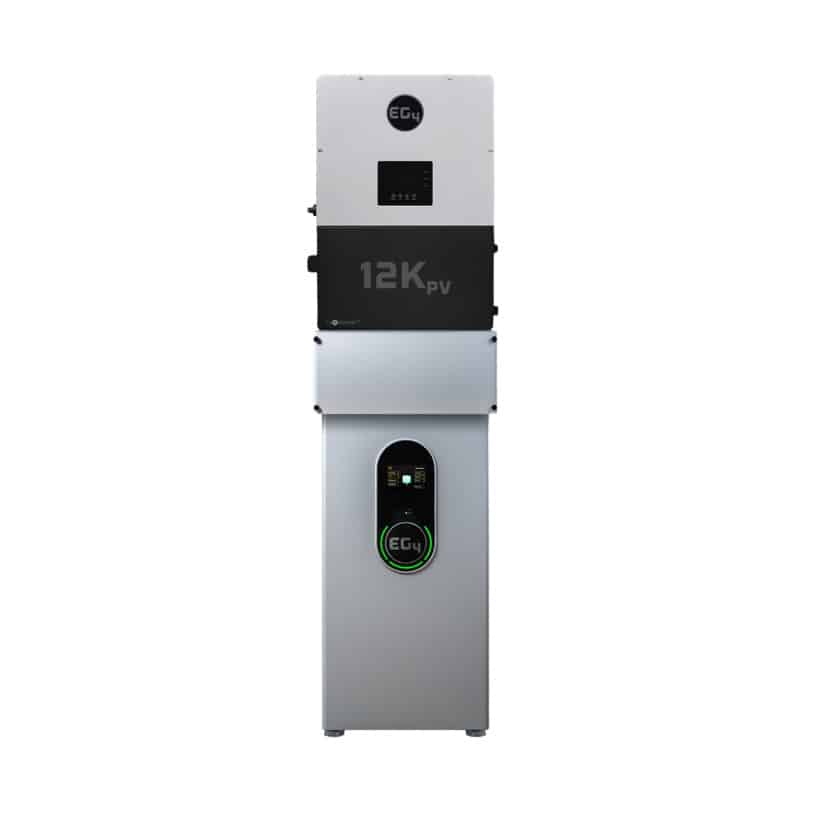

EG4 12KPV Inverter w/ EG4 Indoor WallMount 14.3kWh Battery Kit

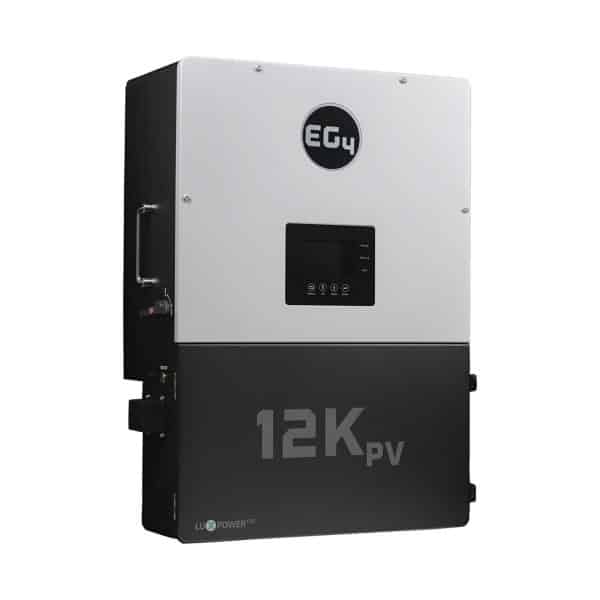

EG4 12KPV solar inverter in black and white, designed for photovoltaic energy systems, displaying a digital screen and control buttons on the front panel.
EG4 12KPV Inverter w/ EG4 Indoor WallMount 14.3kWh Battery Kit - Image 3
EG4 12KPV Inverter w/ EG4 Indoor WallMount 14.3kWh Battery Kit - Image 4
EG4 12KPV Inverter w/ EG4 Indoor WallMount 14.3kWh Battery Kit - Image 5
EG4 12KPV Inverter w/ EG4 Indoor WallMount 14.3kWh Battery Kit - Image 6

EG4 12KPV Inverter w/ EG4 Indoor WallMount 14.3kWh Battery Kit

$6,918.99

-

Available on backorder

Purchase & earn 6,919 points!
On Backorder
The EG4 12kPV is a 48V, split-phase hybrid inverter designed for both rural and suburban homeowners seeking energy independence.
The EG4 14.3kwh WallMount Indoor 280AH Battery is a high-capacity energy storage system engineered for durability and efficiency. With integrated 600A busbars, a robust 200A built-in Battery Management System (BMS), and a 10-year warranty for up to 8,000 cycles, this battery offers long-lasting performance and reliability for residential energy storage needs.

EG4 12KPV Inverter w/ EG4 Indoor WallMount 14.3kWh Battery Kit

Easily integrate solar power into your current energy system or start a new one with the EG4 12kPV, our newest 48V split-phase hybrid inverter/charger. It uses 12kW of solar input, supplying up to 8kW for powering loads while using the remainder to charge your batteries, producing enough power to easily start a 5 ton air conditioner. Designed for residential and light commercial applications, you can connect up to 10 units for a total power output of 80kW.

The EG4 12kPV shares the same design, and software as the EG4 18kPV hybrid inverter. However, the 12kPV is more compact and affordable. Its modular design allows for easy expansion, and users can monitor and update the system remotely using the EG4 monitoring website/app for added control and flexibility

The EG4 14.3kWh Indoor LiFePO4 Battery is a high-performance energy storage system designed for low voltage residential applications. It operates at 51.2V and 280AH, providing a substantial 14.3kWh capacity for reliable backup power and energy storage needs. This battery is equipped with a user-friendly onboard LCD for monitoring performance and diagnostics, while dual onboard fire arrestors ensure enhanced safety in critical situations.

For seamless integration into existing setups, the battery features integrated self-heating, allowing it to function efficiently in cooler environments, and integrated 600A busbars to support high-current demands. An optional emergency stop function adds an extra layer of safety, giving users more control in case of emergencies. The advanced Battery Management System (BMS) includes a passive balance function and an advanced battery control method, both of which help optimize battery performance and longevity. This battery is also designed to pair perfectly with EG4 inverters, making it a versatile and dependable choice for various energy storage configurations.

_____________________________________________________________

Kit includes

  • EG4 12KPV
  • EG4 14.3KWH Indoor Wallmount

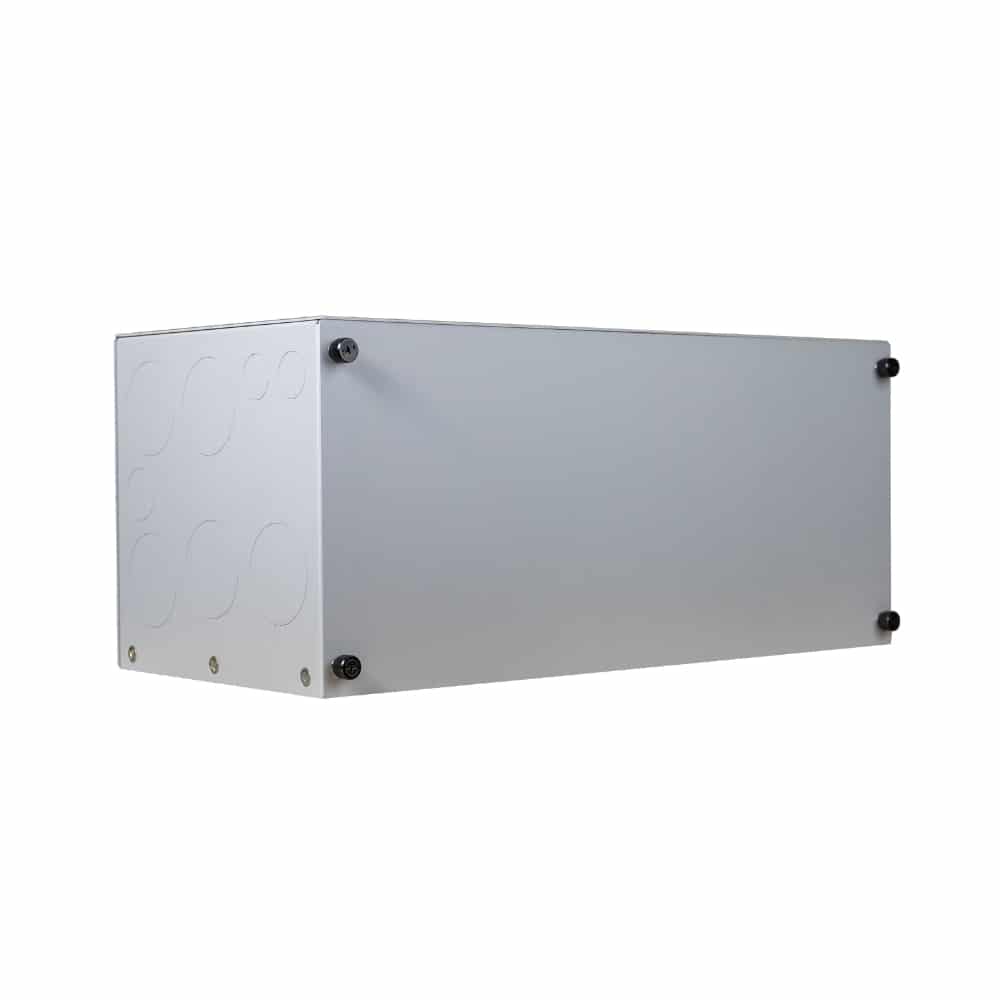

  • EG4 Indoor Conduit Box
Features:

  • Voltage: 51.2V
  • Total Energy Capacity: 14.3kWh
  • Capacity: 280Ah
  • Charging Voltage (Bulk/Absorb): 56.0V (+/-0.8V) to 56.2V (+/-0.2V)
  • Float Voltage: 54V (+/-0.2V)
  • Low DC Cutoff: 44.8V (adjustable start from 47V to 45.6V)
  • Charging Current: Up to 200A (continuous), recommended range: 60A - 160A
  • Discharging Current: Up to 200A (continuous), recommended: 160A

Environmental Parameters

  • Charging Range: 32°F to ≈113°F (0°C to ≈45°C)
  • Discharging Range: -4°F to ≈122°F (-20°C to ≈50°C)
  • Storage Range: -4°F to ≈122°F (-20°C to ≈50°C)
  • Ingress Protection: IP20

Charging/Discharging Protection

  • Overcharging Protection: >205A (10 sec), >225A (3 sec)
  • Temperature Protection: <23°F or >158°F (1 sec), <-5°C or >70°C (1 sec)

General Specifications

  • Communication Ports: RS485/CAN Can be customized
  • Cycle Life: >8000 Cycles, 80% Depth of Discharge (DOD)
  • Design Life: Over 15 Years
  • Weight: 282.2 lbs. (128 kg)
  • Safety Certifications: UL1973, UL 9540A (Testing)

EG4 Battery Paralleling Cables



EG4 Battery Paralleling Cables - designed specifically for the EG4 line of batteries. Cable kit is used when adding additional batteries. One per additional battery.

Includes:

  • Red/Orange Positive Battery Parallel Cable (53.1 in.) – x1
  • Black Negative Battery Parallel Cable (53.1 in.) – x1
  • Parallel Communication Cable (59.1 in.) – x1





Datasheet:

EG4 12KPV Datasheet

EG4®-Indoor-280Ah-Battery-Specifications-Sheet

Quick Start Guide:

EG4® 12KPV Manual

EG4®-Indoor-280Ah-Battery-Quick-Start-Guide

Certificates:

EG4®-Indoor-280Ah-Battery-Certificate-of-Compliance-UL-9504A

EG4®-Indoor-280Ah-Battery-Certificate-of-Compliance-UL-9504

EG4®-Indoor-280Ah-Battery-Certificate-of-Compliance-1973

10-Year Warranty up to 8000 cycles @ $80 DOD



Additional information

Weight 500 lbs
Condition

Product Type

Warranty

Available on backorder

Purchase & earn 6,919 points!
SKU: EG4-12KPV-14.3KW-KIT Categories: , , , , , , ,
