8KW w/8A Enphase MicroInverter Grid Tie Kit
$8,650.80
-
8KW w/8A Enphase MicroInverter Grid Tie Kit
Kit Includes:
- 8KW of solar panels (panels will vary based on stock. They will be a black on black residential panel)
- Photo is a representative photo. Panels will appear different than the one pictured.
- One per panel Enphase IQ8A microinverters
- One per panel Enphase Q Cable and Connectors
- Enphase IQ5 combiner box
- EATON BR220 2-POLE 20A CIRCUIT BREAKER
- Enphase install accessories such as IQ cable clips, disconnect tool, connectors, cabling, etc.
Add Ons (not included):
- K2 Racking for roof installs
- Racking for ground mounts
IQ Combiner 5C
The IQ Combiner 5 consolidates interconnection equipment into a single enclosure, and streamlines IQ Series Microinverters and IQ Gateway installation by providing a consistent, pre-wired solution for residential applications. It uses Control Cable wiring for communication and is compatible with IQ System Controller 3/3G and IQ Battery 5P.
The IQ Combiner 5, along with IQ Series Microinverters, the IQ System Controller 3/3G, and the IQ Battery 5P, provides you with a complete, grid-agnostic Enphase Energy System.
Smart
- Includes IQ Gateway for communication and control
- Supports flexible networking: Wi-Fi, Ethernet, or cellular (additional equipment required for cellular)
- Provides production metering (revenue grade) and consumption monitoring
Easy to install
- Mounts to one stud with centered brackets
- Supports bottom, back, and side conduit entry
- Supports up to four 2-pole branch circuits for 240 VAC plug-in breakers (not included)
- 80 A total PV branch circuits
Reliable
- Durable NRTL-certified NEMA type 3R enclosure
- Five-year limited warranty
- Two years labor reimbursement program coverage included
- UL1741 listed

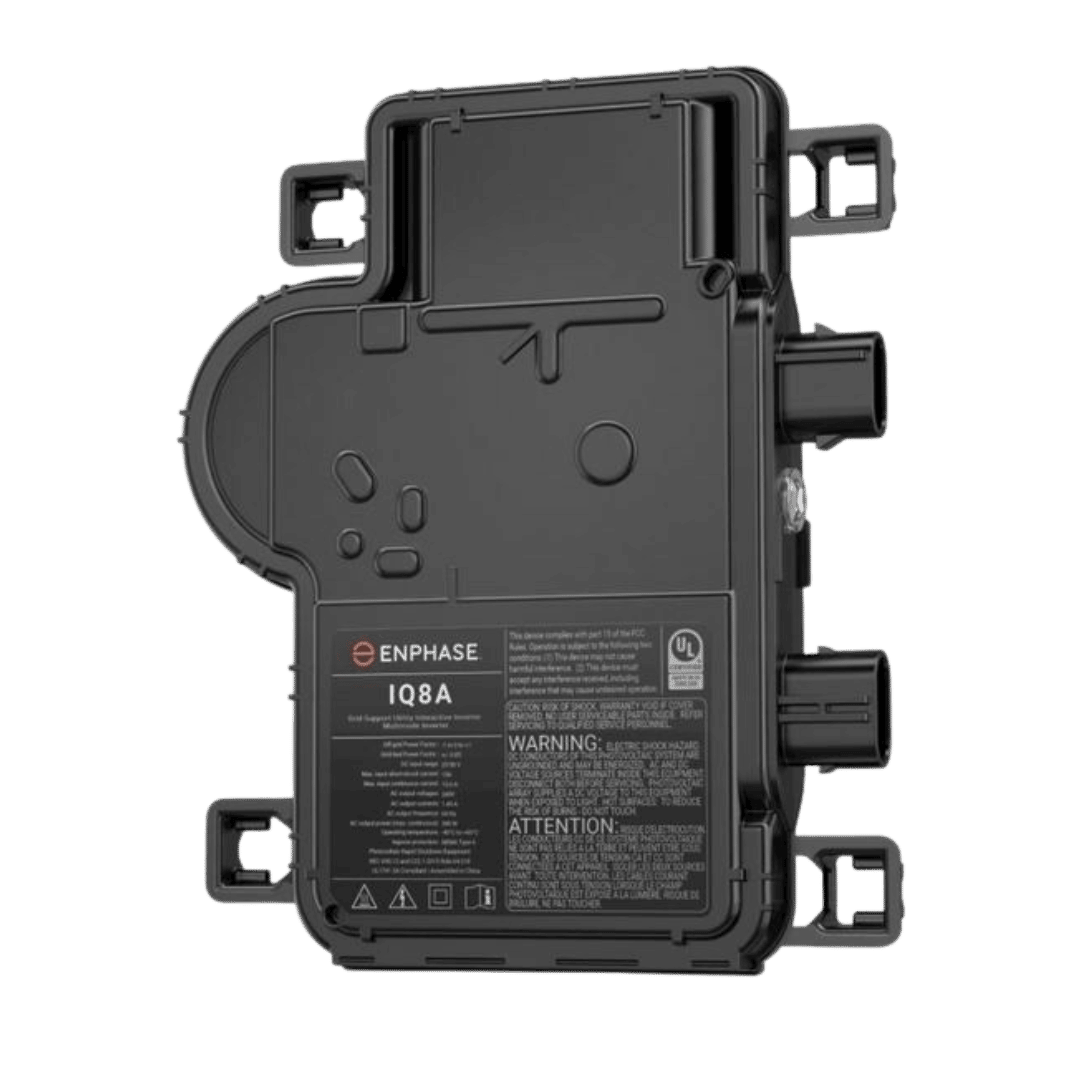

ENPHASE, IQ8A-72-2-US, MC4 DC INPUTS, MICRO-INVERTER
Our newest IQ8A Microinverters are the industry's first grid-forming microinverters with split-phase power conversion capability to convert DC power to AC power efficiently.
The brain of the semiconductor-based microinverter is our proprietary application-specific integrated circuit (ASIC) which enables the microinverter to operate in grid-tied or off-grid modes. This chip is built in advanced 55nm technology with high-speed digital logic and has super-fast response times to changing loads and grid events, alleviating constraints on battery sizing for home energy systems.
Part of the Enphase Energy System, IQ8A Microinverters integrate with the Enphase IQ Battery, Enphase IQ Gateway, and the Enphase App monitoring and analysis software.
IQ8A Microinverters redefine reliability standards with more than one million cumulative hours of power-on testing, enabling an industry-leading limited warranty of up to 25 years.
Connect PV modules quickly and easily to IQ8A Microinverters using the included Q-DCC-2 adapter cable with plug-n-play MC4 connectors.
IQ8A Microinverters are UL Listed as PV Rapid Shut Down Equipment and conform with various regulations, when installed according to manufacturer's instructions.
To purchase this product, please contact your local authorized Enphase distributor.
Details
- Lightweight and compact with plug-n-play connectors
- Power Line Communication (PLC) between components
- Faster installation with simple two-wire cabling
- Produce power even when the grid is down
- More then one million cumulative hours of testing
- Class II double-insulated enclosure
- Optimized for the latest high-powered PV modules
- Complies with the latest advanced grid support
- Remote automatic updates for the latest grid requirements
- Configurable to support a wide range of grid profiles
- Meets CA Rule 21 (UL 1741-SA) requirements
Technical Specifications
- Peak output power: 366 VA
- Input power: 295 - 500+ W
- Maximum continuous output power: 349 VA
- Operating range: 25 - 58 V
- Length 212.00 mm
- Width 175.00 mm
- Height 30.20 mm
- Weight 2.38 lbs
What's in the Box
- Q8A Microinverter
- Mounting bracket
- Q-DCC-2 Plug-n-play MC4 adapter cable
Warranty
- IQ8 Series Microinverters redefine reliability standards with more then one million cumulative hours of power-on testing, enabling an industry-leading limited warranty of up to 25 years.
Additional information
| Weight | 1674.98 lbs |
|---|---|
| Dimensions | 84 × 45 × 46 in |
