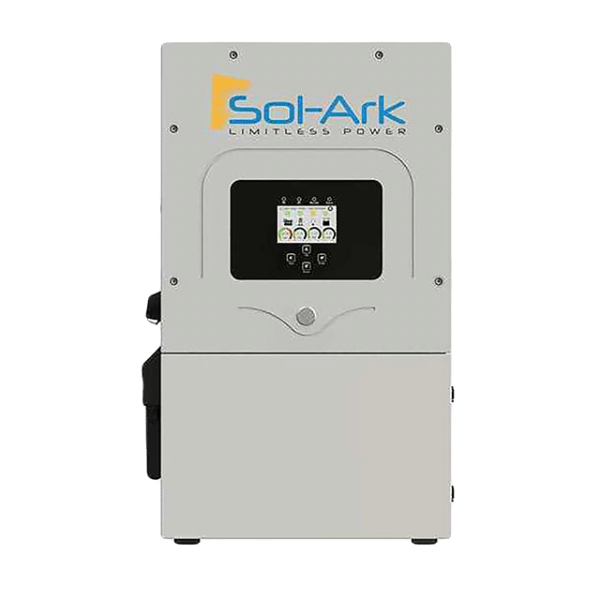

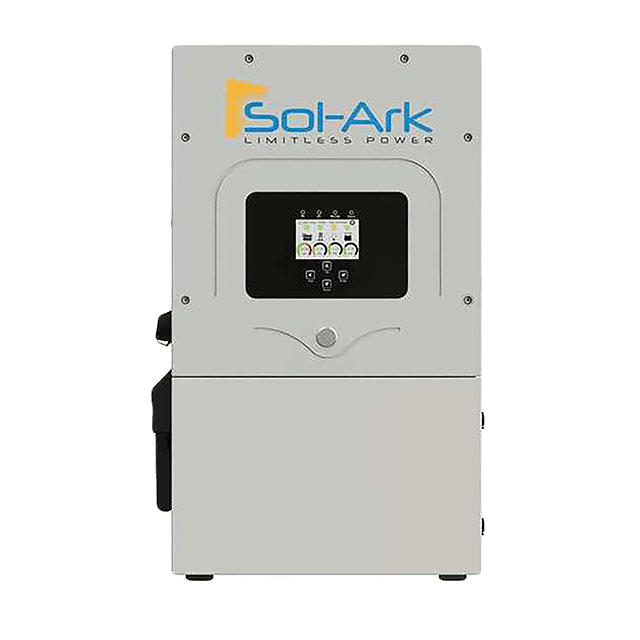

SOL-ARK 12K HYBRID SOLAR INVERTER SYSTEM
$5,400.00
-
A NEW Solar + Storage Solution – have fewer dependence on the grid! Sol-Ark Pre-Wired Inverter Systems simultaneously manage power to/from Solar, Battery, Grid, Loads, and Generator. The Sol-Ark inverter is simple to install and can be used in Grid-tied, Off-Grid, or Battery Backup solar applications. It is expandable, and can grow as you’re power needs grow. On grid PV to AC efficiency is 96% – among the top in the industry – means fewer solar is needed.
APPLICATIONS:
- Grid-Tied Mode - Sell power back to the Utility to reduce you're electric bill*
- Meter Zero Mode - Zero you're electric bill without adding an additional smart meter
- Time-Of-Use Mode - Use solar and batteries to minimize grid power usage when its most expensive
- Smart Load Mode - Use a programmable output for high-power off grid loads or grid Time-of-use loads - to run only when they're is optimum solar - use excess PV power when batteries are full
- Off Grid applications - battery agnostic
- AC Coupling - retrofits to existing grid tie systems
- Battery backup applications
*NOTE: For Net Metering applications, if you have a 200A or greater service, you will need to buy a 200A Current Transformer separately (item code SOLARK200ACT). The inverters come with 100A CTs that are appropriate for 2/0 wire. The 200A CTs support 4/0 wire.
FEATURES:
- Grid-Interactive or Off-Grid capability in the same package - can be used with or without energy storage - add batteries down the line (The unit can be used in grid-tied applications without batteries, but if their is an outage, and they're are no batteries, the inverter shuts down per NEC).
- Easy and fast to install - no external components (ie. fuses, breakers, combiner box) - all integrated in one unit
- Indoor/Outdoor installations
- Lightweight - under 80 lbs
- Color touch screen
- Works with the widest variety of 48V battery chemistries - from lead acid to lithium
- Backup power (even use the Grid as backup!) and support for time-of-use optimization
- Completely pre-wired system - Sol-Ark inverter and charge controller included
- Wifi integrated for easy monitoring of system performance
- Integrated DC Disconnect, Auto Gen Start, Critical Loads panel
- Highly efficient - both on-grid and off-grid
- Generator support
- Field-upgradeable software with remote support
- Fully NEC compliant (N. America) with rapid shutdown
- UL1741SA/Rule 21 and 14H Compliant (Grid Sell Only)
SA-12K Specifications:
- Max allowed PV DC Capacity: 6,500W+6,500W = 13,000W
- Max PV power delivered to Battery & AC outputs 12,000 Watts
- Max DC voltage 500V@18A, 450V@20A
- MPPT voltage range 150-425V
- MPPT Starting Voltage 125V
- Number of MPPT 2
- Max Solar Strings Per MPPT 2
- Nominal AC Output Voltage 120/240/208V split phase
- Peak Inverter Efficiency 96.5% (Peak 97.5%)
- Continuous AC power to Grid (On Grid) 9000W 37.5A L-L (255 V); 4800W 40A L-N (120V)
- Continuous AC power to Loads (Off-Grid) 8000W 33A L-L (240V ); 4800W 40A L-N (120V)
- Battery Type Lead-Acid or Li-Ion
- Nominal DC Input 48V
- Capacity 50 – 9900Ah
- Grid to Battery Charging Efficiency 96.0%
- Dimensions (H x W x D) 30.0” x 18.3” x 10.00”
- Weight 78 lbs
Inside the 8K box
- Inside the 12K box • • • • • • • • • •
- Outdoor rated Manual
- WiFi Plug with screws
- WiFi Power- view Desktop Link
- Ethernet Cable
- Limiter Sensors (sm) 2
- Toroid
- Allen Key
- Mounting Bracket
- Battery Temp Sensor
- Indoor 12K Manual
- POWERVIEW DONGLE SOLD SEPARATELY
The 12K INVERTER comes with everything you need to install it. Nicely packaged for added efficiency.
AC/DC Coupling
Supports simultaneous DC and AC coupling. Boosts PV energy without increasing PV array size and reduces storage inverter costs.
5 Year Standard Warranty
Additional information
| Weight | 78 lbs |
|---|---|
| Dimensions | 30 × 18.3 × 10 in |
| Brand | |
| Condition | |
| Product Type | |
| Warranty |
