“The Homesteady Kit” | EG4 12000XP with 8KW Array 30KW Battery Storage w/ Brightmount Ground Mount Kit
$16,300.00
-
This off-grid solar kit features the powerful EG4 12000XP inverter, an 8kW solar array, and 30kWh of battery storage for reliable, round-the-clock energy. The EG4 BrightMount Ground Mount System ensures secure, efficient panel installation for a complete, high-performance off-grid solution.
- Description
- Additional information
- Specifications
- What's Included
- Datasheets / manuals / wiring diagrams
This complete off-grid solar kit is designed for reliable, high-capacity energy independence. At the heart of the system is the EG4 12000XP Off-Grid Inverter, delivering robust power management and seamless off-grid functionality. The kit includes an 8kW solar array, engineered to maximize daily solar harvest, paired with 30kWh of battery storage for extended energy use during nights and cloudy days. Solar panels are securely installed using the EG4 BrightMount Ground Mount System, ensuring durability, efficiency, and easy maintenance. Ideal for small homes, cabins, or remote operations, this turnkey kit provides sustainable, off-grid power with EG4's trusted performance and integration.
Component Features:
EG4 12000XP Features:
- High Input Voltage (480VDC): Supports high-voltage input, reducing the need for extensive cabling and allowing for up to 24kW PV input without a combiner box.
- Dual MPPT Design: Ensures optimal solar energy utilization, providing efficiency and stability under varying sunlight conditions.
- Plug-in Wi-Fi Capability: Monitor and adjust settings remotely using the EG4 app or Monitor system, adding convenience and control from any location.
- Closed-Loop Communication: Seamlessly integrates with EG4 48V batteries and other supported brands, offering enhanced system performance and safety.
- Rapid Shut Down Compliance: Equipped with NEC 690.12-ready rapid shutdown (RSD) capabilities for compliance and peace of mind in critical situations.
Performance Highlights:
- 12kW Power Output with Surge Capacity up to 18kW: Delivers robust, consistent power with the ability to manage heavy-duty appliances and equipment in off-grid settings.
- Expandable Power Options: Parallel up to six units to reach a 72kW system, providing the flexibility to scale power output as needed.
- High Efficiency Rates: Enjoy an impressive 99% MPPT efficiency, maximizing energy harvest and minimizing energy loss.
EG4 Battery Features:
EG4-LL lithium batteries offer second to none performance and longevity. Get peace of mind knowing our batteries are designed to last for more than 7000 deep charge and discharge cycles and have a life cycle of more than 15 years with an 80% depth of discharge daily.
On-board LCD Touch Screen
Easy to see BMS monitoring, and selectable closed-loop communications with EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters.
Enhanced Safety Features
- E-Stop functionality offers fail-safe operation in potentially high-risk environments. (requires either additional
RSD/ESS disconnect or pairing with a supported rapid shutdown inverter in the system for e-stop functionality) - Dual On-Board fire arrestors allow for added peace of mind during operations.
Parallel up to 64 Batteries
- For maximum power, our 6 DIP switch option allows you to have 327.6kWh while preserving BMS communications.
EG4 Brightmount Features

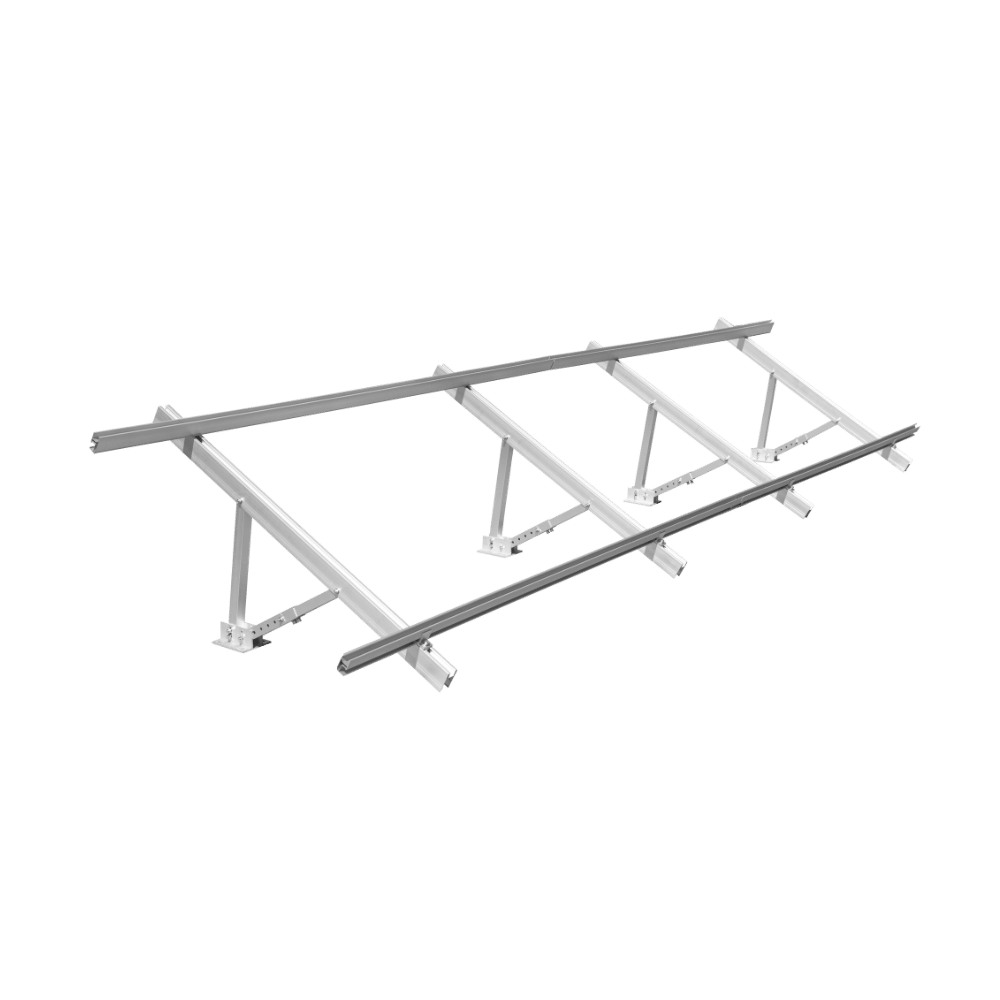

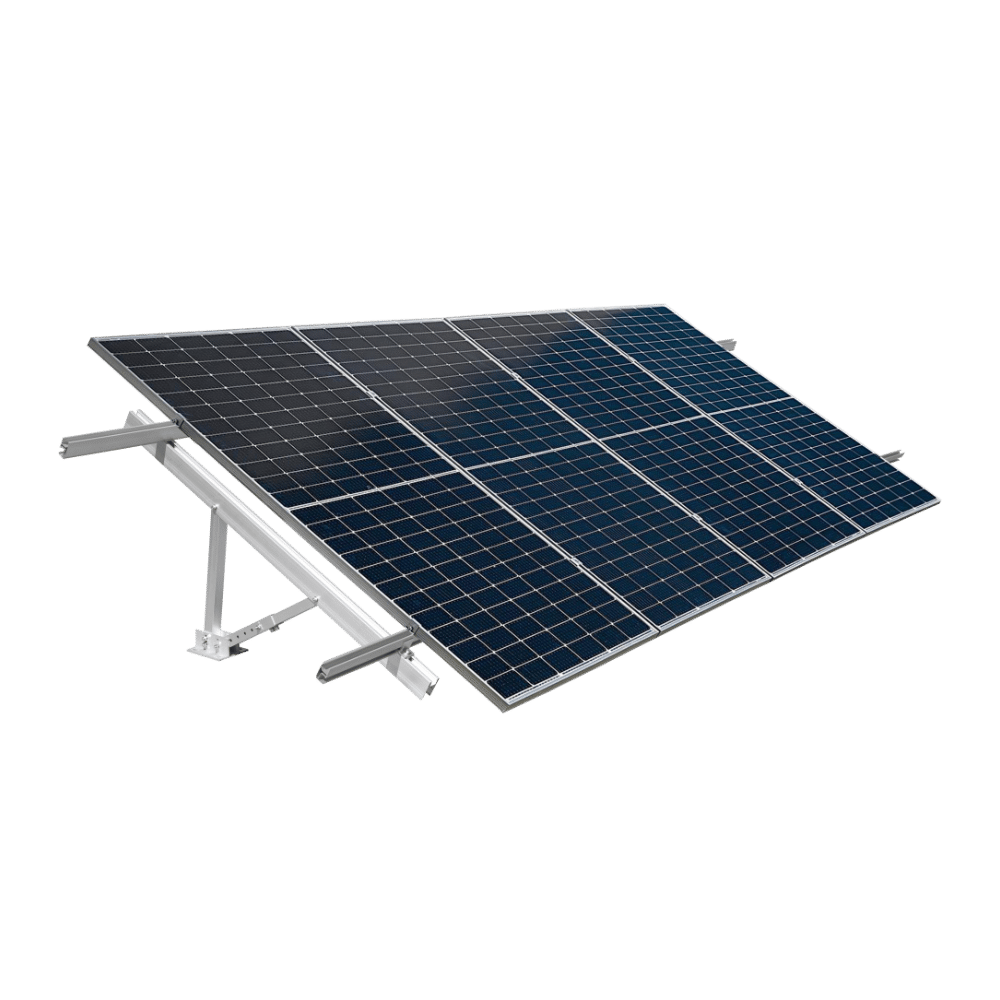

The EG4® BrightMount® Adjustable Cat1 Solar Panel Ground Mount Rack is a durable and versatile solution that simplifies the installation of ground-mounted solar panel arrays. Built from high-quality anodized aluminum alloy and stainless-steel hardware, this robust ground mount is engineered to withstand extreme outdoor conditions, including winds up to 90 mph. Each EG4 BrightMount kit includes everything needed to install up to four 43.3 in. (1100mm) solar panels side-by-side, making it a cost-effective choice. For wider panels, an optional extension kit accommodates up to four 44.65 in. (1134mm) panels. Its adjustable inclination angles allow for fine-tuning based on your location, maximizing solar absorption. Designed for ease of use, the EG4 BrightMount’s simple setup can be completed by one person with minimal tools.
Features & Benefits:
- Durability in Harsh Conditions:
Lightweight, weather-resistant anodized aluminum alloy rated to withstand winds up to 90 mph - Corrosion-Resistant Materials:
Extended lifespan in outdoor settings - Low Profile, Simple Design:
Allows versatile installation in various environments - Quick Assembly with Minimal Tools:
Reduces labor time and effort
Additional information
| Weight | 2200 lbs |
|---|---|
| Dimensions | 70 × 47 × 48 in |
Specifications
EG4 12000XP Specs
- AC Input: 120/240VAC | 50/60 Hz
- Max Continuous Output: 12kW
- Surge Capacity: 18kW (5 seconds)
- Battery Compatibility: Lead-Acid/Lithium, with a recommended minimum of 400Ah per inverter
- Operating Temperature: 32°F – 113°F (0°C – 45°C)
- Protection Features: PV Reverse Polarity, Over-Voltage, and Surge Protection
- Warranty: 5 years
Ideal Applications:
- Residential Off-Grid Living: Perfect for homes wanting to break free from grid reliance.
- Remote Worksites and Cabins: Ensures a steady power supply, even in isolated locations.
- Commercial and Industrial Use: Robust enough to handle demanding off-grid requirements.
EG4 Battery Specs
- Nominal Voltage:51.2V
- Nominal Capacity:100AH
- Kilowatt-hour(s):5.12kWh
- Dimensions:6.1 × 19 × 17.4 in.
- Design Life:*15 Years at 80% DoD
- Communications:RS485/CAN: EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters
EG4 Brightmount CAT1 Specs
Specfiications:
- Adjustable:
20°, 25°, 30°, 35°, or 40° inclination angles - Installation Without Extension:

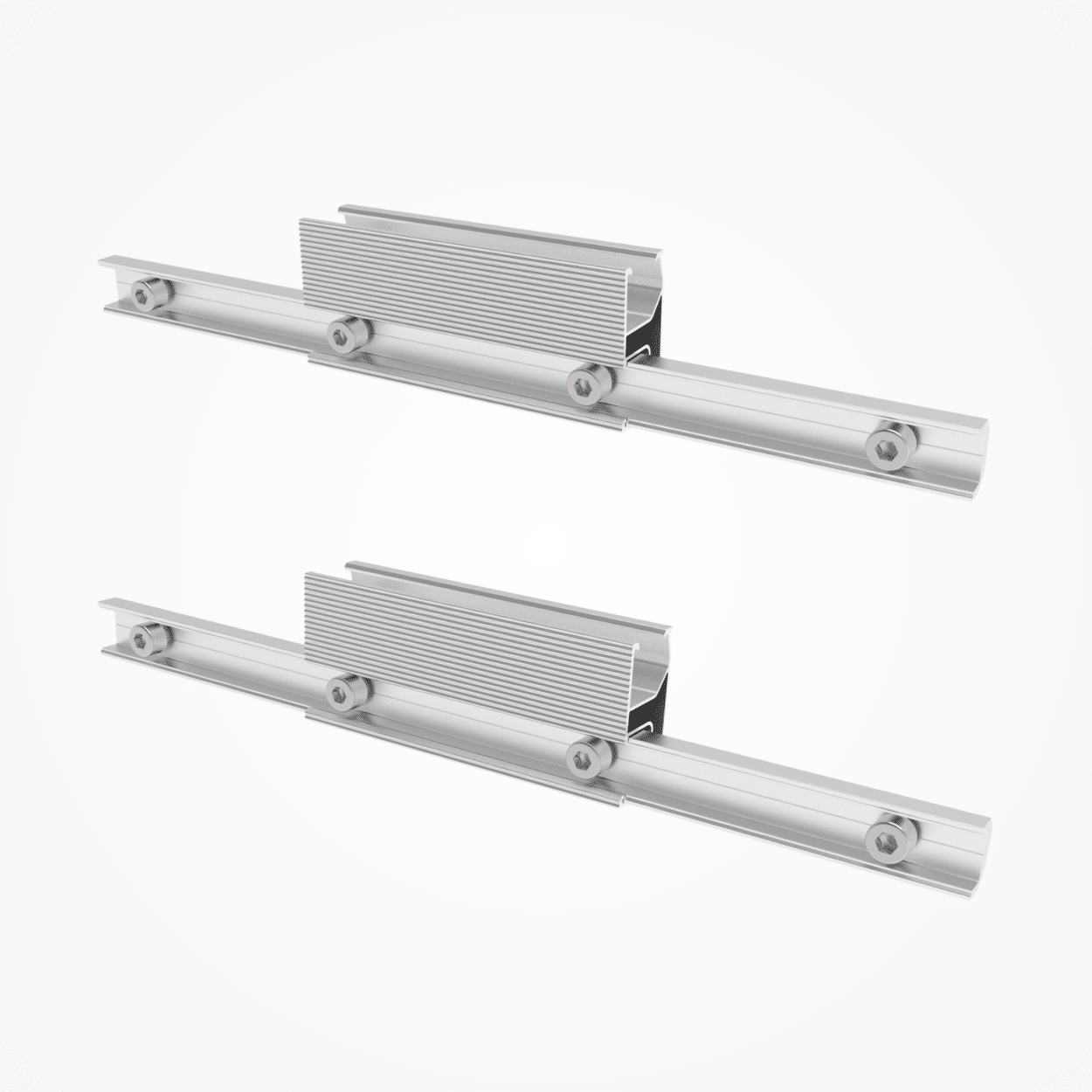

Up to four 43.3 in. (1100mm) solar panels side-by-side - Installation With Extension:
Up to four 44.65 in. (1134mm) wider panels - Warranty:
10-year mechanical
Kit Includes:
- Rails, Clamps, and Grounding Components:
All necessary pieces to securely hold up to 4 panels in place. - Tools Checklist:
A detailed list of tools needed, including torque wrenches and Allen wrenches, ensures an efficient setup process. - Clear Safety Instructions:
Detailed instructions on PPE, team lifting, and electrical safety to keep your installation safe.
Installation Guide Highlights
- Concrete Base Foundation:
Ensure stability with cement blocks as the base. - Angle Adjustments:
Easily set the desired tilt using the adjustable aluminum legs. - Rail Assembly and Panel Installation:
Follow step-by-step guidance for rail alignment, panel securing, and proper grounding to ensure a robust installation.
What's Included

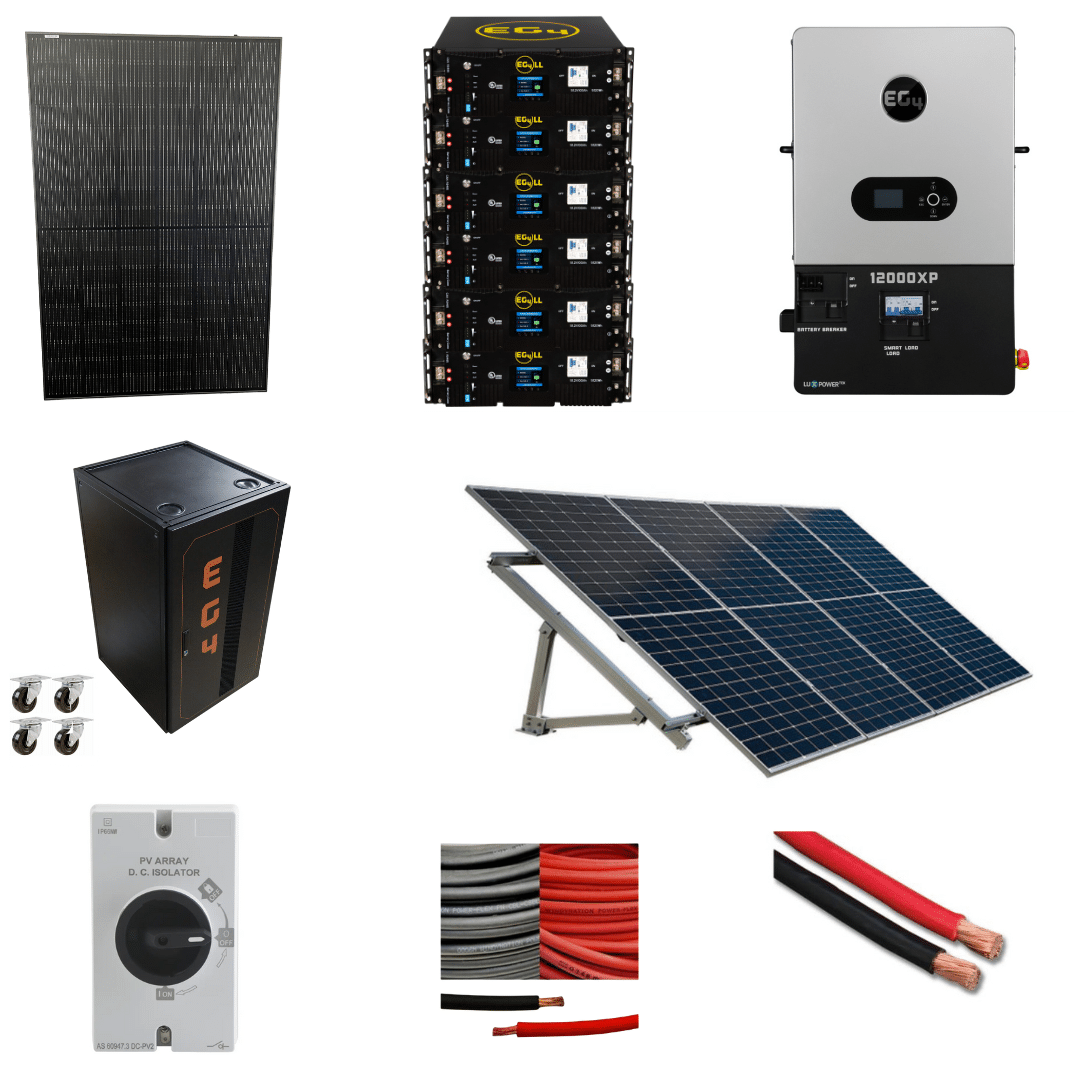

What’s Included:
-
Qty 1 – EG4 12000XP Off-Grid Inverter
-
8kW – Solar Panels
-
EG4 BrightMount Ground Mount System
-
Qty 6 – EG4 LL-S 48V Lithium Batteries
-
EG4 Battery Rack (fits 6 batteries)
- Qty 1 4 Pole PV Disconnect
-

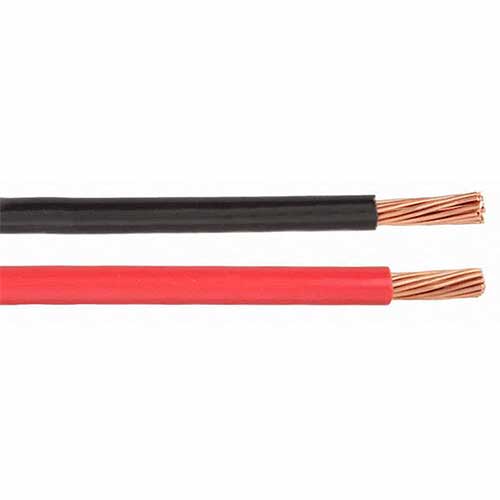

100 ft – PV Wire with MC4 Connectors
-

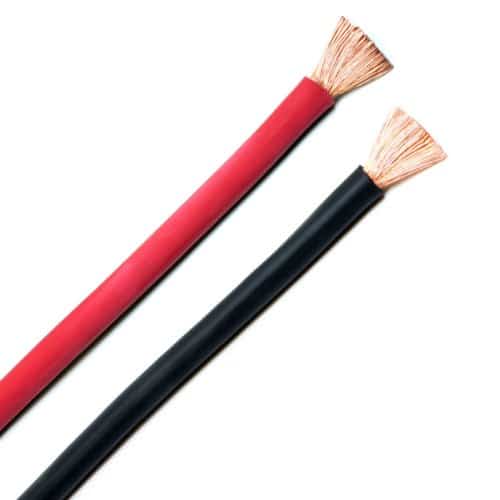

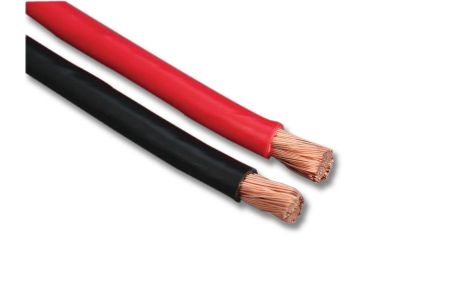

4/0 Battery Wire with Lugs
Datasheets / manuals / wiring diagrams
Datasheets
EG4 12000XP Spec Sheet v1.2 10-31-24
EG4 BrightMount Cat1 Extension Rail Kit Features and Benefits – Product Description v1.0
Manual
EG4 12000XP User Manual v1.1.1 10-31-24
EG4-BrightMount-Adjustable-User-Manual
