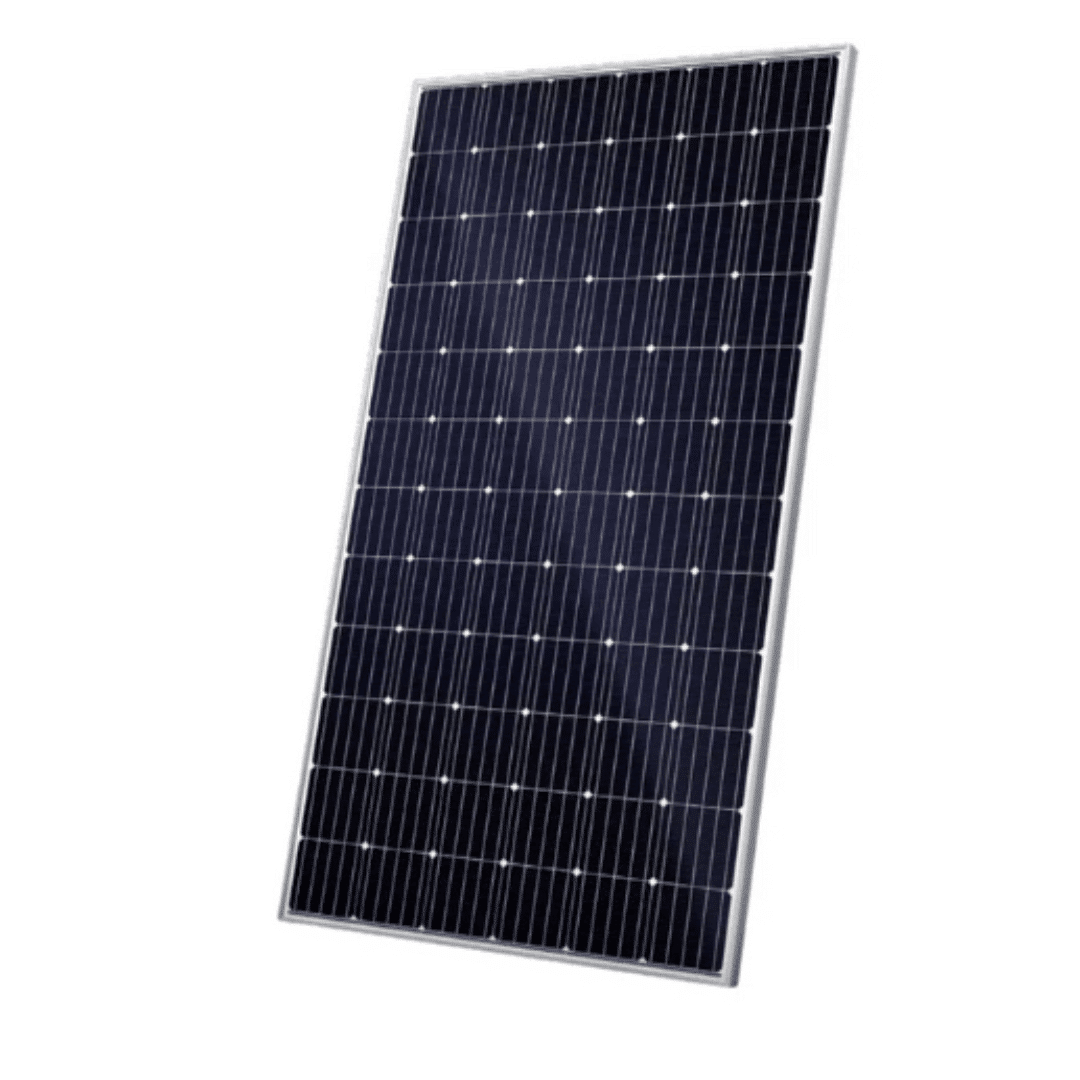

Used Canadian Solar 340W 72 Cell Mono Solar Panel

Used Canadian Solar 340W 72 Cell Mono Solar Panel

*The website can only accurately rate up to 6 pallets at one time. If you are planning to purchase more than 6 pallets, please call for a shipping quote.

Canadian Solar is committed to providing high quality solar products, solar system solutions and services to customers around the world. As a leading PV project developer and manufacturer of solar modules with over 15 GW deployed around the world since 2001, Canadian Solar Inc. (NASDAQ: CSIQ) is one of the most bankable solar companies worldwide.

Canadian Solar‘s 1500 V module is a product for high voltage systems, which can increase the string length of solar systems by up to 50%, saving BOS costs.

Features

Highlights - Designed for high voltage systems of up to 1500VDC, saving on BoS costs.

Cell efficiency of up to 20.0%.

Outstanding low irradiance performance: 96.5%.

High PTC rating of up to 91.7%. IP67 junction box for long-term weather endurance.

Heavy snow load up to 5400 Pa, wind load up to 2400 Pa.

Specifications

Dimensions: 77.20 x 39.10 x 1.57 inches
Weight: 49.40 lbs
Cells: 72 Mono Cells (6x12)
Frame Material: Anodized Aluminum Alloy
J-Box: IP67, 3 Diodes
Cable: PV1500DC-F1 4 mm2 (IEC) & 12 AWG 2000 V (UL), 1160 mm (45.7 in)
Connector: T4-1000V or PV2 Series
Module Efficiency: 17.49%
Operating Temperature: -40°C to +85°C
Module Fire Performance: Type 1 (UL 1703) or Class C (IEC 61730)
Power Tolerance: 0 - +5W

Nominal Maximum Power (Pmax): 340 Watts
Optimum Operating Voltage (Vmp): 37.9 Volts
Optimum Operating Current (Imp): 8.97 Amps
Open Circuit Voltage (Voc): 46.2 Volts
Short Circuit Current (Isc): 9.48 Amps
Module Efficiency: 17.49%
Maximum System Voltage: 1500V (IEC) or 1500V (UL)
Max Series Fuse Rating: 15 Amps
