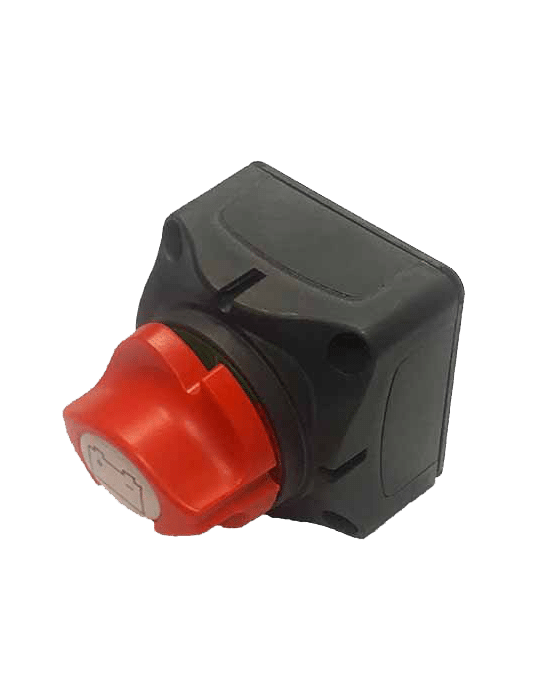

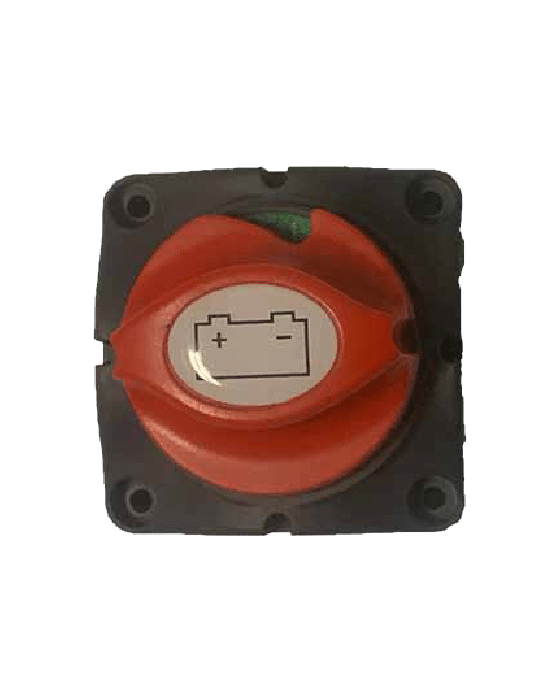

DC Disconnect Switch



Only 13 left in stock

The same type of power-off switch as Hella and BEP can be used as the main power-off switch
All red copper tinned core rated current,
Continuous current: 200Amps DC
Intermittent current: 455Amps DC
Starting current: 1000Amps DC
Maximum voltage: 48V-60Volts DC
Dielectric strength: 1500VAC / 1min
Electrical life: 10000 times
Screw diameter: 10mm
Operation: On / Off
Installation: back / surface
Spark protection

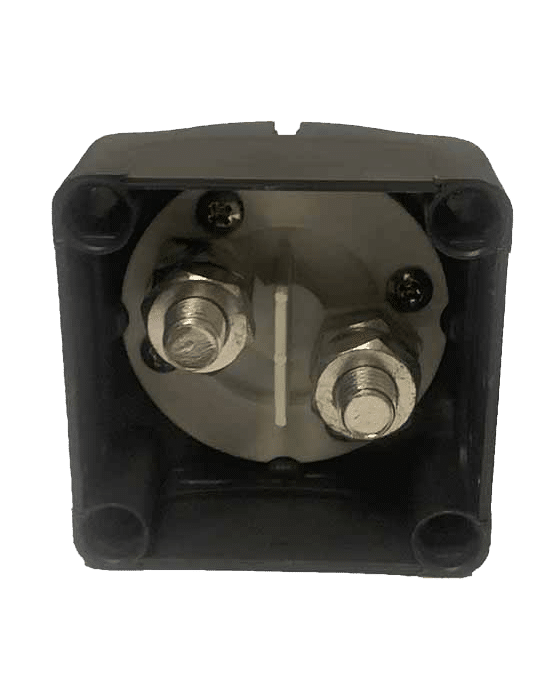

Terminal bolt size: 2 x 10 mm

Additional information

Weight 0.58 lbs
Dimensions 2.7 × 2.7 × 3.1 in
