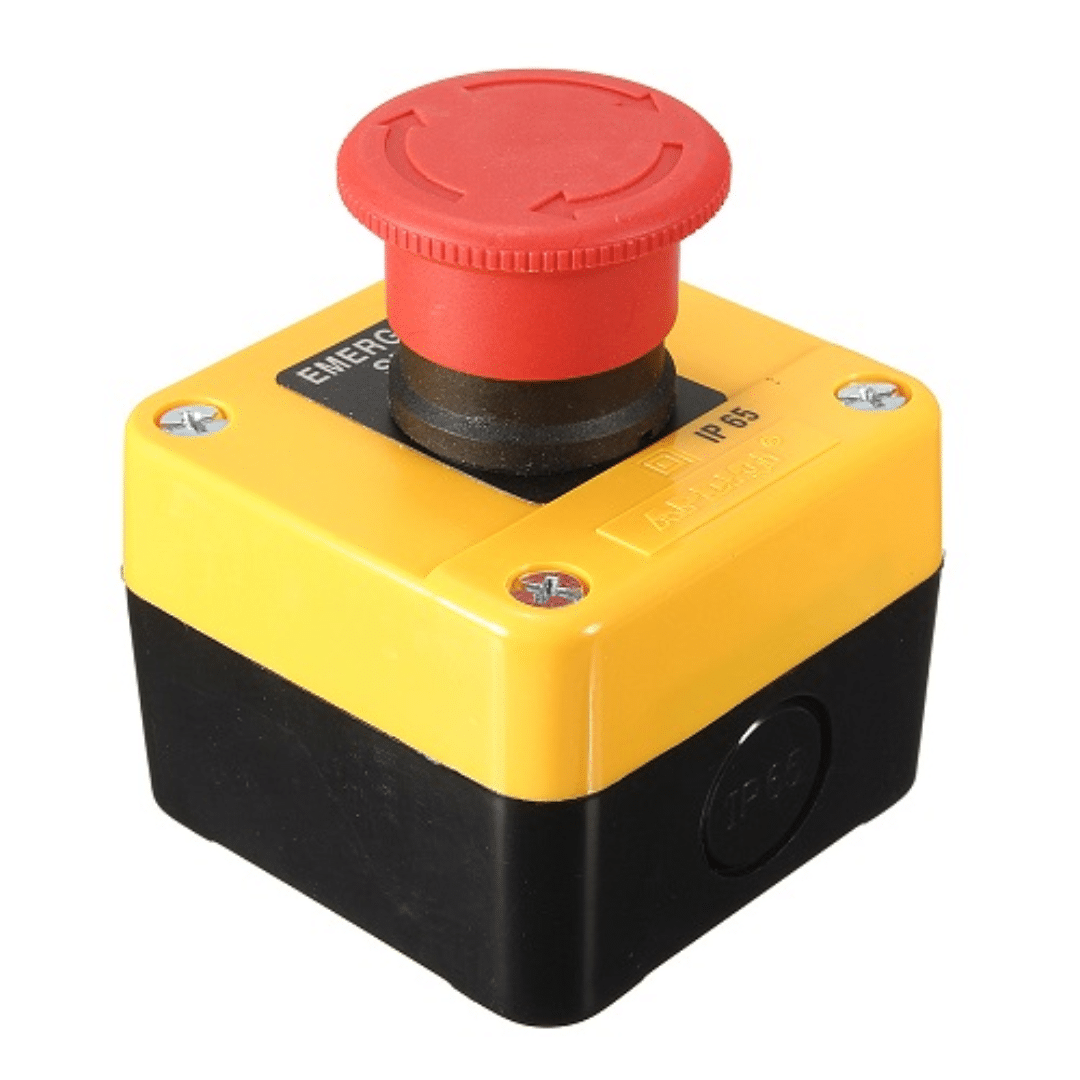

E-Stop On/Off Button for Emergency Stop IP65

Essential to all builds is a big red STOP switch. Easy to see and hit in an emergency.

When pushed it will latch in the down position and must be rotated to be released. This helps prevent accidental re-activation.

Mechanical Specifications:

1. Diameter of Red Mushroom: 40 mm
2. Turn to release type
3. Dimension: 66mm X 66m
4. Torque: 0.9 Nms
5. Waterproof and Impermeable IP65
6. Mechnical Life: 300,000

Electrical Specifications:

1. Ith: 10A, UI AC 660V.
2. Rated Load:  220VAC/6A 380VAC/4A 660VAC/2A 440VDC/0.3A 220VDC/0.5A 110VDC/1A
3. TYPE: N/C
4. Withstand Voltage: 2500V /60S
5. Temperature: -25°~+55°
6. Contact resistance:  <25mΩ
