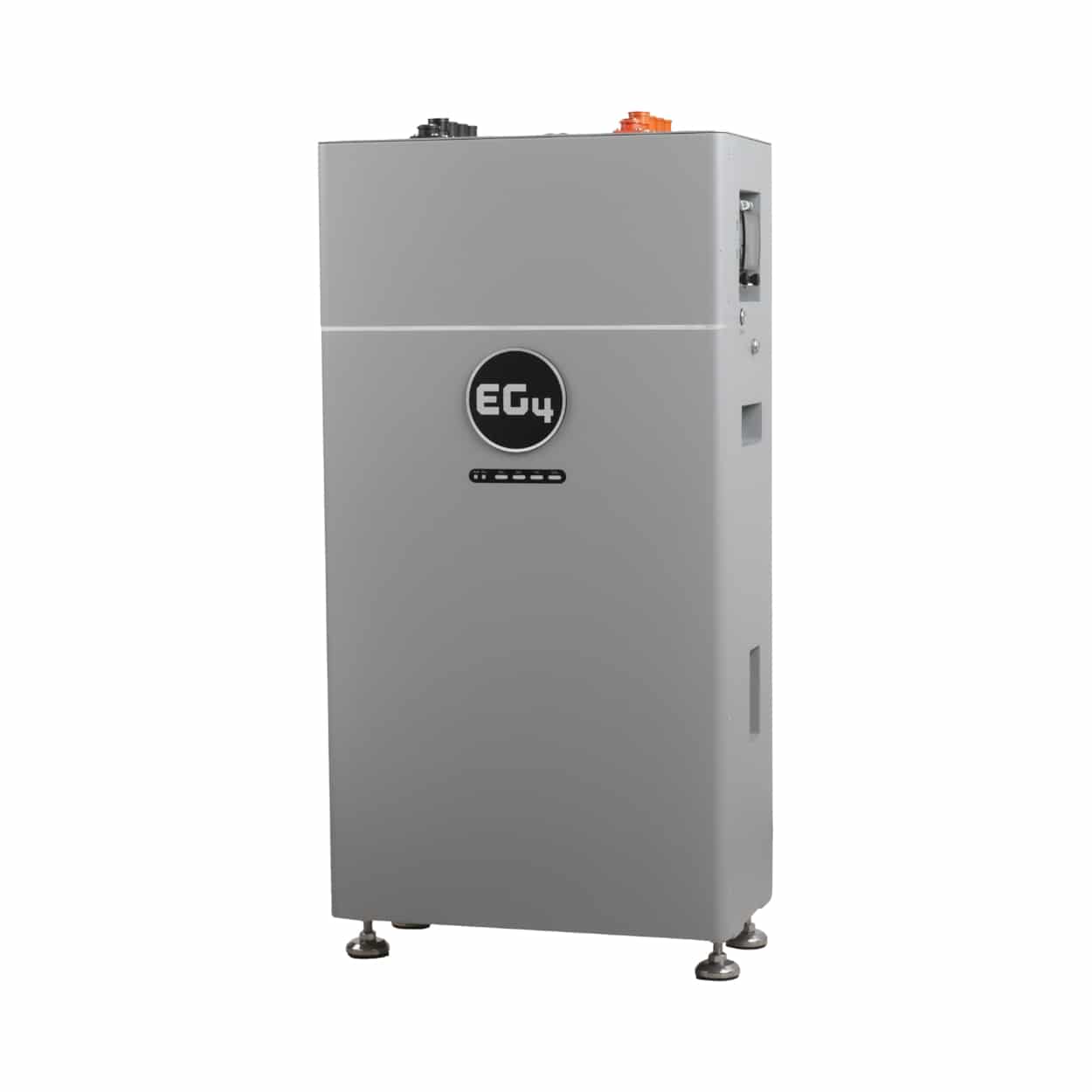

EG4 16KWH 48V 314Ah Wallmount Indoor LifePO4

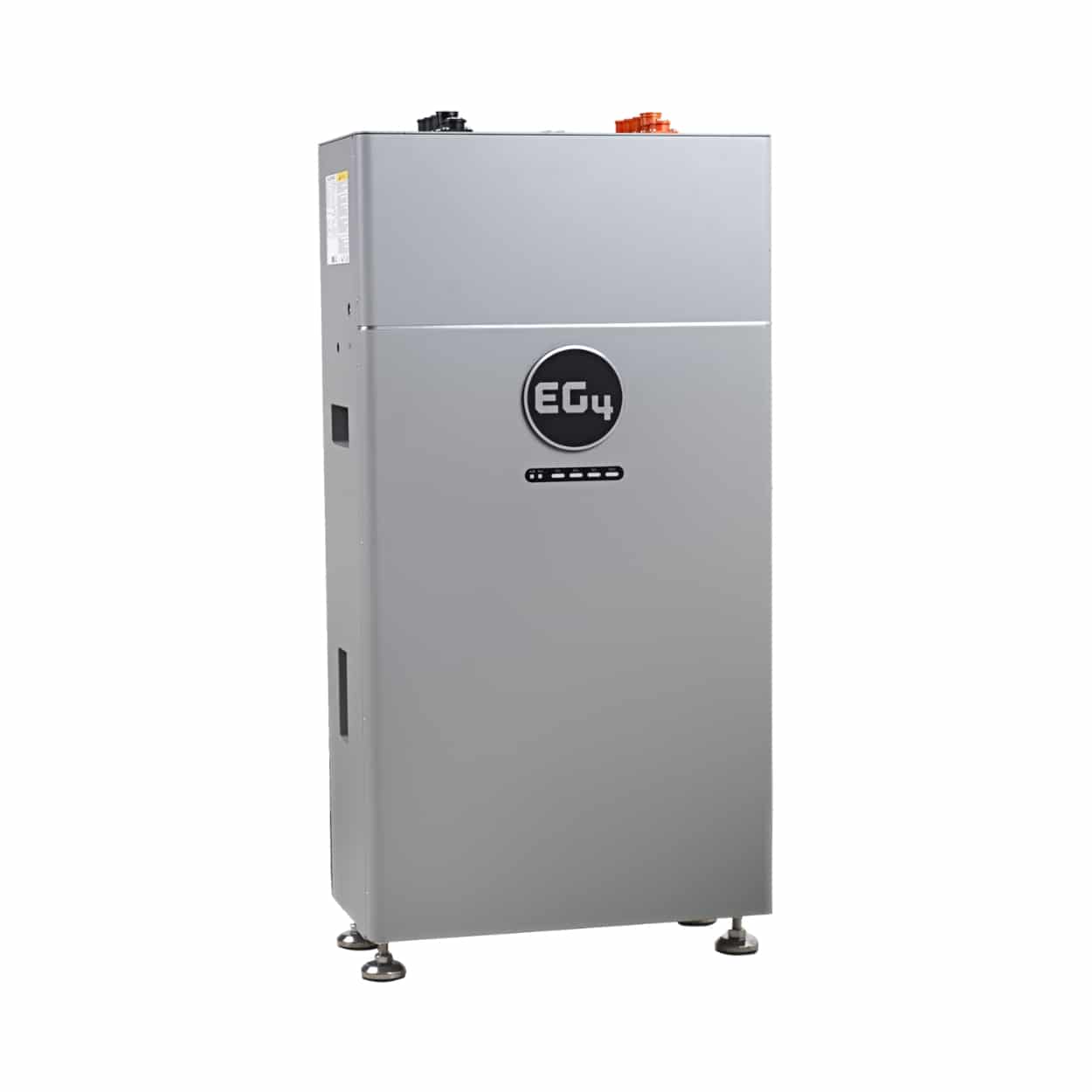

EG4 16KWH 48V 314Ah Wallmount Indoor LifePO4 - Image 2

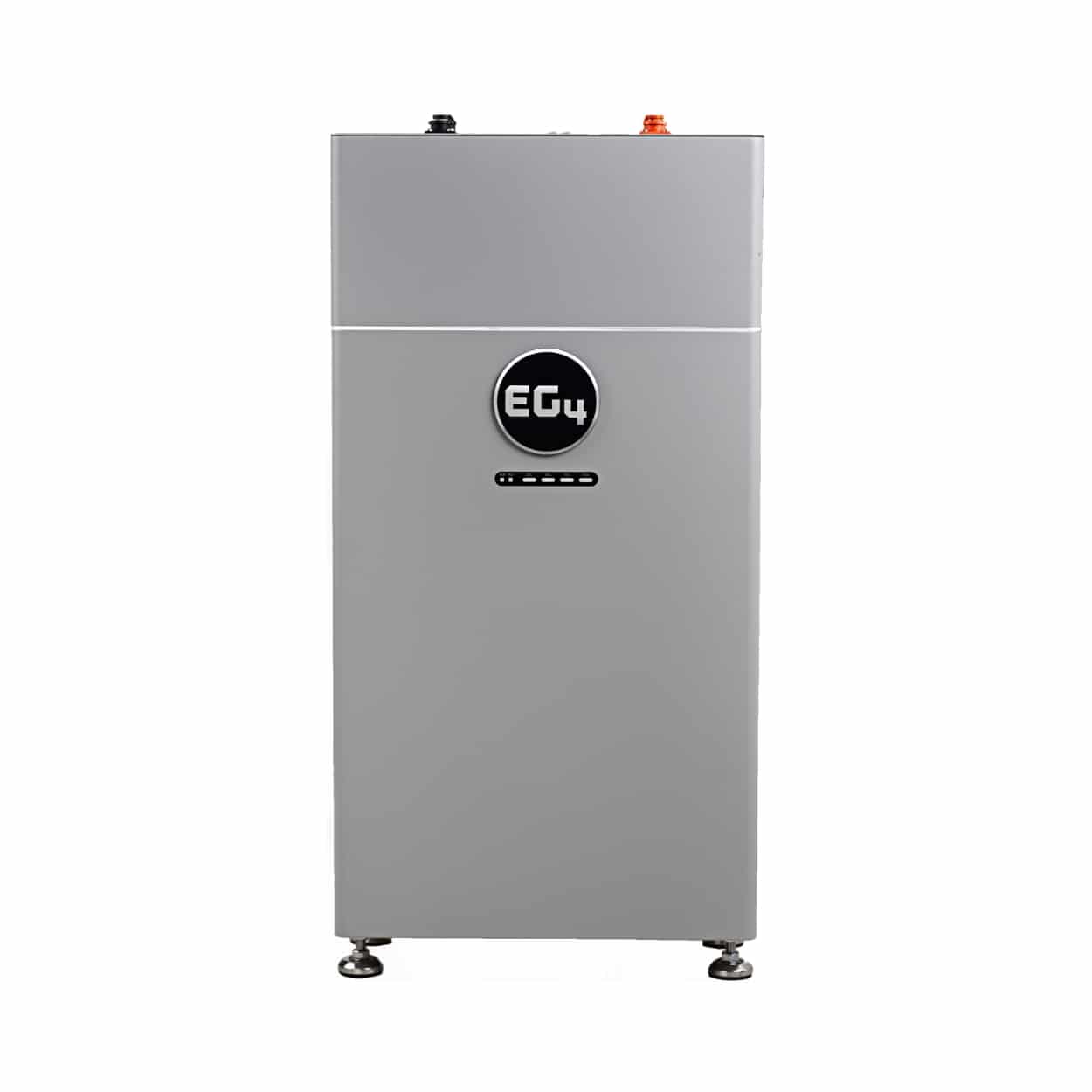

EG4 16KWH 48V 314Ah Wallmount Indoor LifePO4 - Image 3

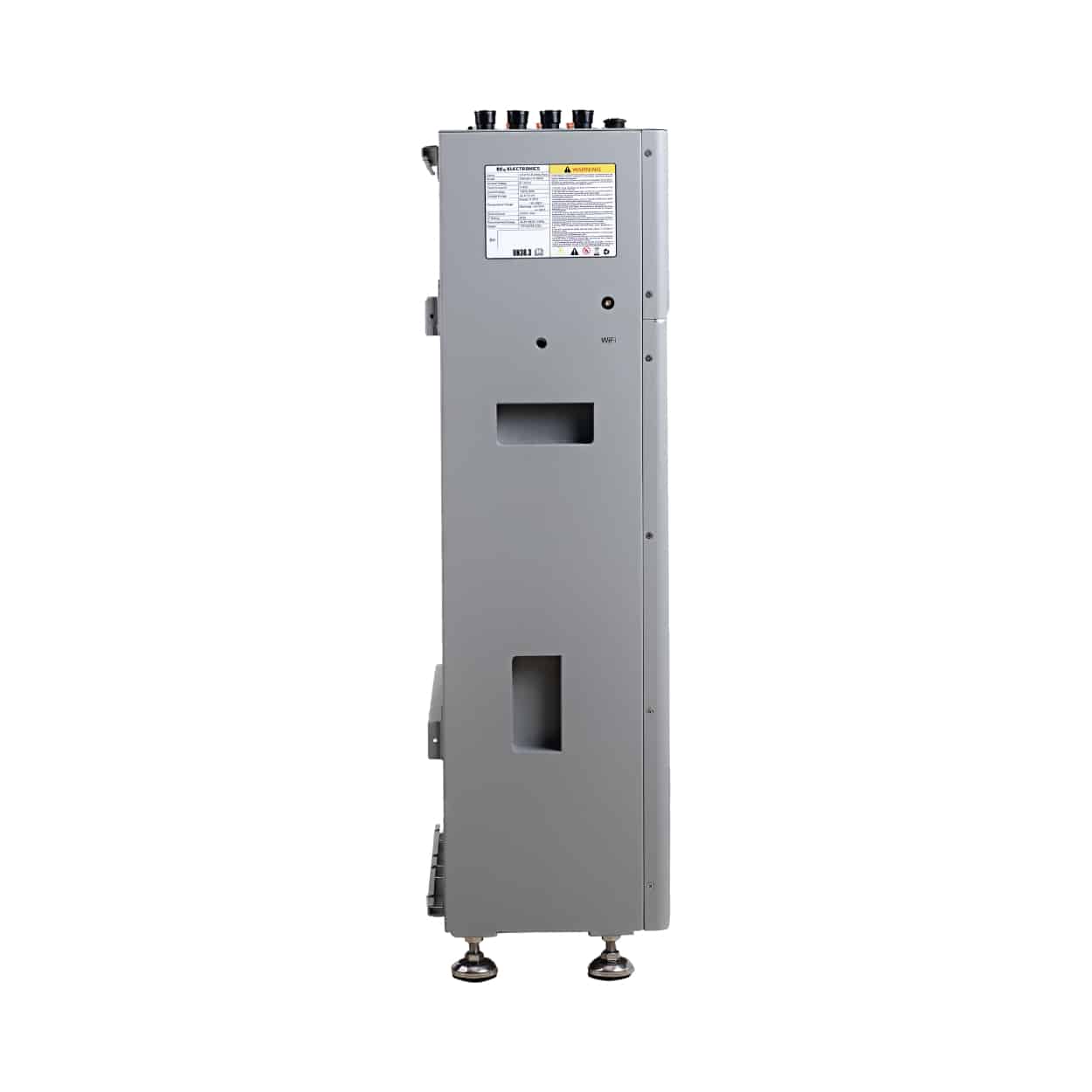

EG4 16KWH 48V 314Ah Wallmount Indoor LifePO4

Name: EG4 16KWH 48V 314Ah Wallmount Indoor LifePO4
SKU: EG4-16KW-INDOOR
Price: 3739.99 USD
Availability: InStock

$3,739.99

SKU: EG4-16KW-INDOOR Categories: Batteries, Floor & Wall Mount Batteries, All Products Brand: EG4

EG4 WallMount 314Ah Indoor Battery

Smart power. Simple reliability.

Whether you want lower energy costs or more control during outages, the EG4
WallMount 314Ah Indoor Battery delivers dependable whole-home backup in a
compact design. With 16.1 kWh of storage capacity and 200A continuous output, it
provides consistent performance for your home or small business — all while fitting
seamlessly into your indoor setup.
Built with advanced safety features, efficient self-heating for colder climates, and an
intuitive monitoring interface, this wall-mounted battery makes energy storage simple,
safe, and reliable.
Backed by a 10-year warranty and rated for 10,000+ cycles at 80% depth of discharge,
it’s a long-term energy solution you can trust.

Key Features
• Hybrid Wall or Floor Mount Design: Flexible installation options with a durable,
space-saving enclosure (IP20 rated).
• High-Capacity Storage: 16 kWh nominal energy and 314Ah capacity for
reliable, high-output performance.
• 200A Continuous Output / 12.8kW Peak Power: Supports heavy household
loads and seamless backup operation.
• Self-Heating Function: Maintains optimal performance and battery health in
cold environments.
• Third-Generation BMS: Provides advanced monitoring, improved balancing
precision, and faster response times for greater safety and system efficiency.
• Auto-ID Technology: Automatically recognizes and syncs new batteries during
installation, simplifying system setup and configuration.
• Cross-Compatible with Other EG4 Models: Seamlessly integrates with existing
EG4 battery systems for flexible scaling and expanded storage capacity

Core Benefits
• Built for Longevity: Rated for 10,000+ cycles at 80% DoD with up to 115.7
MWh lifetime energy throughput.
• Quiet, Compact, and Efficient: Natural convection cooling ensures silent
operation and a low-profile wall mount for tight indoor spaces.
• Backed by Real Support: 10-year warranty and U.S.-based technical
assistance for long-term reliability and confidence.

Key Specifications
• Nominal Voltage: 51.2V
• Capacity: 314Ah
• Energy Storage: 16.1 kWh
• Maximum Continuous Output: 200A
• Dimensions: 36.4 × 18.1 × 9.6 in (92.5 × 46 × 24.5 cm)
• Weight: 314 lbs (142 kg)
• Cycle Life: 10,000 cycles @ 80% DoD
• Certifications: UL 1973, UL 9540A, UL 9540 (with 18kPV)
• Lifetime Energy Throughput: 115.7 MWh
• Warranty: 10 years

EG4 Battery Paralleling Cables – designed specifically for the EG4 line of batteries.

Includes:

Red/Orange Positive Battery Parallel Cable (53.1 in.) – x1
Black Negative Battery Parallel Cable (53.1 in.) – x1
Parallel Communication Cable (59.1 in.) – x1

Datasheet:

EG4-WallMount-314Ah-Indoor-Battery-Spec-Sheet

Quick Start Guide:

EG4-WallMount-314Ah-Indoor-Battery-Quick-Start-Guide

Certificates:

10-Year Warranty up to 8000 cycles @ $80 DOD

Weight	320 lbs
Condition	New
Product Type	Batteries
Warranty	Manufacture Warranty
Battery Capacity (KWH)	15KWH+
Battery Voltage (V)	48V
Battery Type	Wall-Mount/Floor-Mount
Brand	EG4

Datasheets / manuals / wiring diagrams

Data – Datasheet
Start guide – Quick-Start Guide
User manual – Manual_314AH
UL Certifications – UL_1973_cert_314AH

UL_1973_cert_314AH

UL_9540A_cert_314AH

UL_cert_flexboss_12,18_314AH
