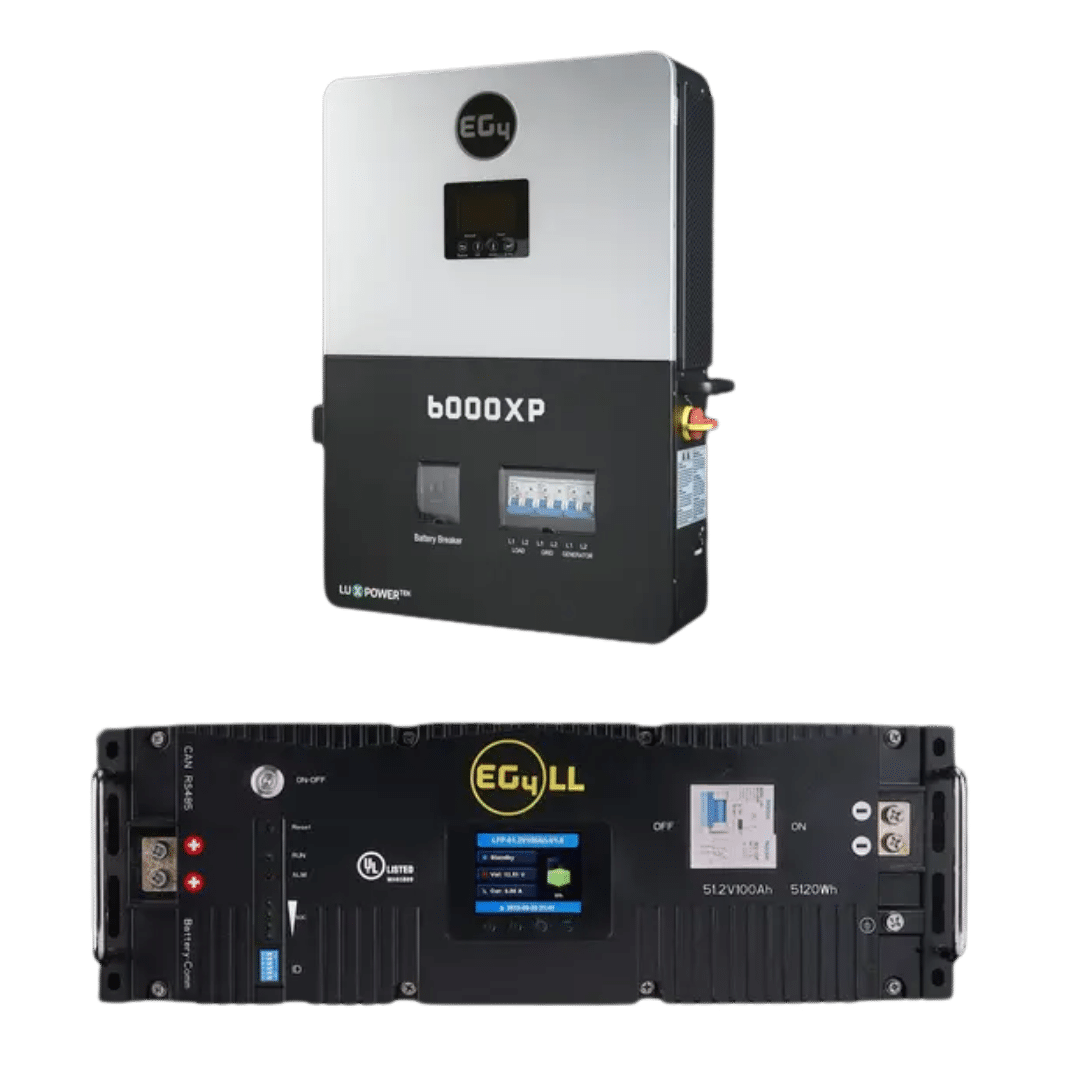

EG4 6000XP w/ EG4 LL-S 10.24KW Battery Kit
Original price was: $4,767.00.$4,067.00Current price is: $4,067.00.
-
Welcome to the future of off-grid energy solutions, where independence, reliability, and affordability converge.
What's included:
- EG4 6000XP inverter
- EG4-LL -S Lithium 48V 100AH battery x 2

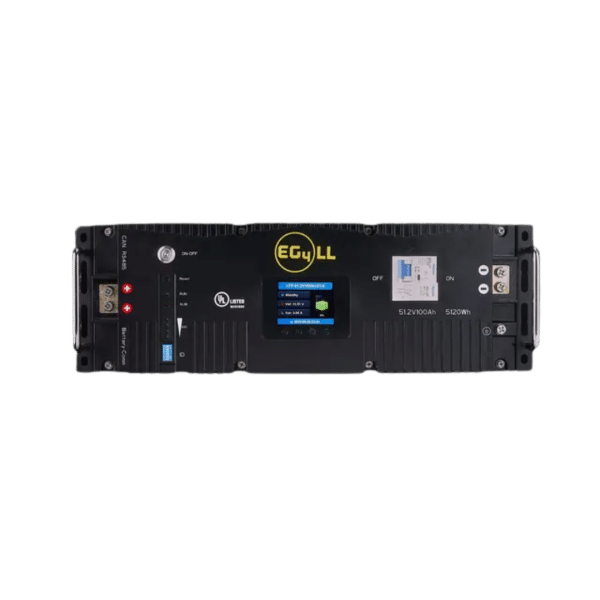

EG4-LL lithium batteries offer second to none performance and longevity. Get peace of mind knowing our batteries are designed to last for more than 7000 deep charge and discharge cycles and have a life cycle of more than 15 years with an 80% depth of discharge daily.
On-board LCD Touch Screen
Easy to see BMS monitoring, and selectable closed-loop communications with EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters.
Enhanced Safety Features
- E-Stop functionality offers fail-safe operation in potentially high-risk environments. (requires either additional
RSD/ESS disconnect or pairing with a supported rapid shutdown inverter in the system for e-stop functionality) - Dual On-Board fire arrestors allow for added peace of mind during operations.
Parallel up to 64 Batteries
- For maximum power, our 6 DIP switch option allows you to have 327.6kWh while preserving BMS communications.
Specs:
- Nominal Voltage:51.2V
- Nominal Capacity:100AH
- Kilowatt-hour(s):5.12kWh
- Dimensions:6.1 × 19 × 17.4 in.
- Design Life:*15 Years at 80% DoD
- Communications:RS485/CAN: EG4, Schneider, Sol-Ark, Victron, Growatt, Megarevo, Luxpower, and Deye inverters
Description:

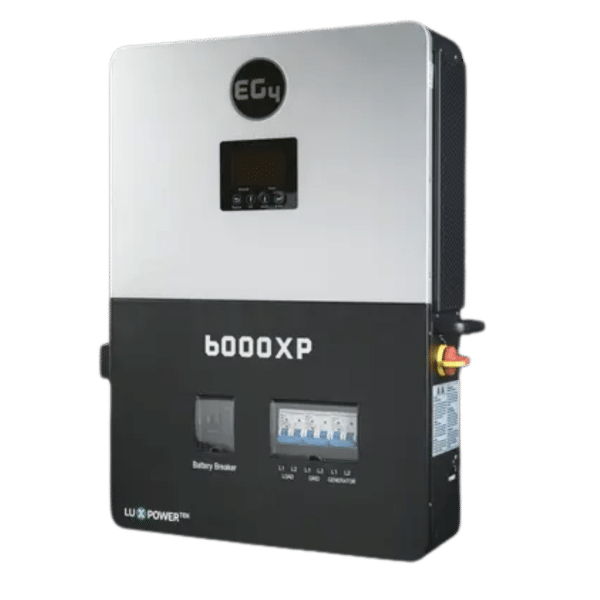

The EG4 6000XP is a 48V 120/240V split-phase, off-grid inverter/charger with a built-in solar charge controller. It boasts the ability to take in 8kW of PV power and efficiently deliver 6kW of power, all while charging your battery bank. You can parallel up to 16 units to achieve an impressive 96kW of output power and control multiple stations and units using the new EG4 monitoring software.
Features:
- Split Phase 120V/240V 48V DC
- 6000W Of Inverting Power and 8000W of PV Input
- Stackable Up To 16 units 96KW
- Transformer Free Design
- Dedicated Generator Connection
- Built in Breakers and Disconnects
- Remote Access
- 5 Year Warranty
Specifications:
- AC Output Voltage: 120/240 Volts (Split Phase) AC
- Battery Charge Current: 115A
- Battery Voltage: 48 Volts DC
- Idle Consumption: 50W
- Max PV Voltage (Voc): 480V
- Nominal Output Power: 6000W
- Max PV Input:10,000W
- Max Charging Current:125A
- Transfer Switch Capacity: 50A
- Number of MPPTs:2 (4000W per)
- Paralleling:16 units for 96kWs
- Listing & Certifications: UL 1741 Certified
Additional information
| Weight | 300 lbs |
|---|---|
| Condition | |
| Product Type | |
| Warranty |
