IronRidge Rail mount Junction Box
$49.00
-
JayBox™ is an ever-adaptable junction box, designed to securely enclose wires on nearly any solar project—with ample space to shelter up to 4 module strings. The box is UL-listed, NEMA-3R-rated, and supports up to 1500-volt systems. It is made of a NORYL™ resin, known for its long-lasting UV-resistance and impact strength.
Out of stock

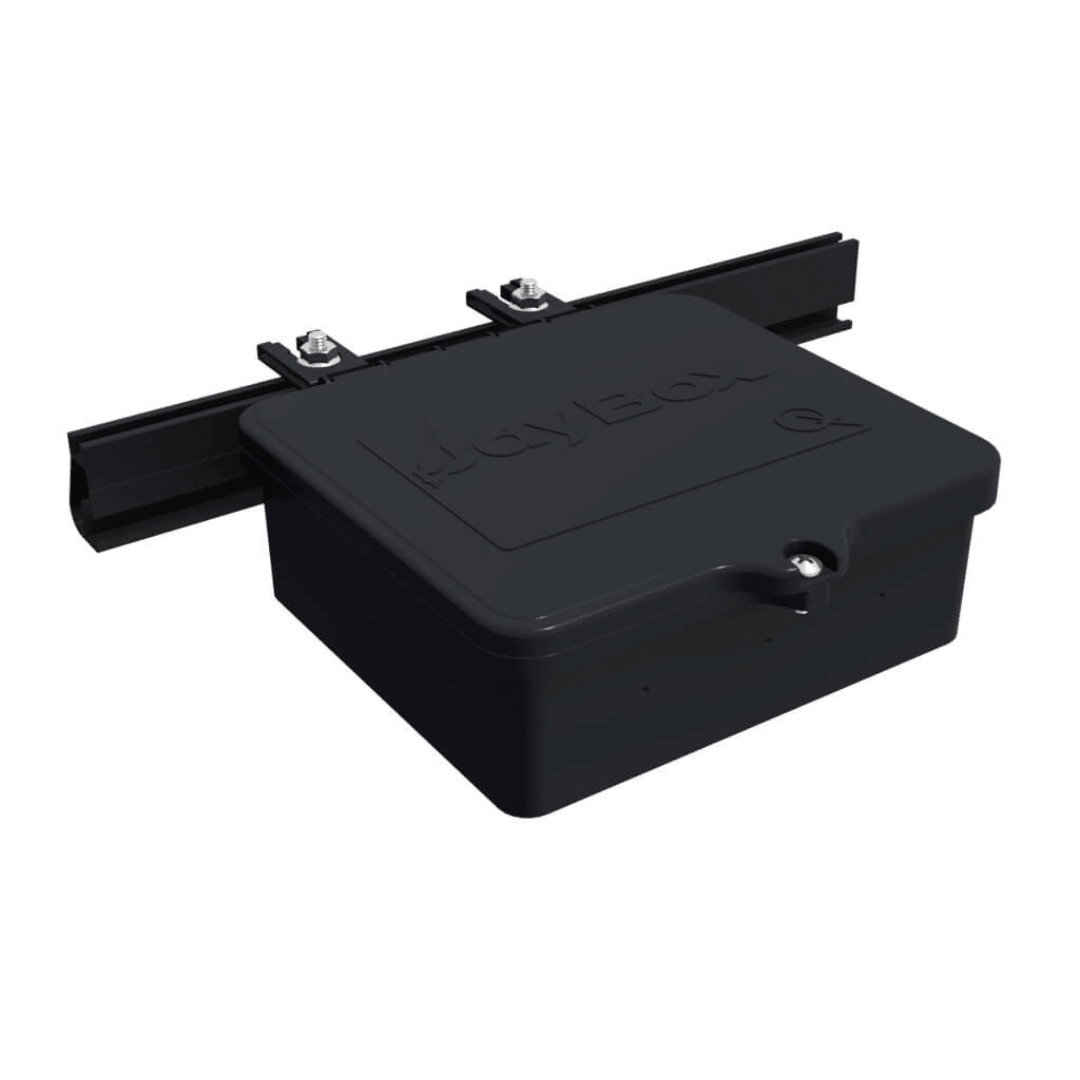

IronRidge QuickMount Rail Black Junction Box
[tabs slidertype=”top tabs”] [tabcontainer] [tabtext]Description[/tabtext] [tabtext]Documents[/tabtext] [tabtext]Videos[/tabtext] [tabtext]Warranty[/tabtext] [/tabcontainer]
[tabcontent]
[tab]
JayBox® is an ever-adaptable junction box, designed to securely enclose wires on nearly any solar project—with ample space to shelter up to 4 module strings.
The box is UL-listed, NEMA-3R-rated, and supports up to 1500-volt systems. It is made of a NORYL™ resin, known for its long-lasting UV-resistance and impact strength.
JayBox® is available in two options: Roof Mount and Rail Mount—so you can keep all of your solar wires nested and protected.
Mounting Type
JayBox® Rail Mount comes with rail hangers. 6 screws, DIN rail, and a grounding bar are also included in each kit.
Trusted Waterproofing
JayBox® Roof Mount utilizes QuickMount’s Elevated Water Seal Technology® that has passed the TAS-100 wind-driven rain test.
Hassle-Free Lid
A detachable, hinged lid reduces interference—staying open and out of the way even on up to 70° roof slopes.
JayBox® is fabricated from SABIC’s NORYL™ resin, giving it greater strength and resistance to UV radiation. It is well known for its performance in extreme environments.
Captive Hardware
Once the lid is closed, the single, pre-installed, captive screw and nut keeps it snug and secure.
Drilling Guides
The enclosure has easy-to-drill guides on three sides of the box as well as inside for directing conduit from the attic.
[/tab]
[tab]
Cut sheet
Tech Brief
[/tab]
[tab]
[/tab]
[tab]
25 Year Warranty
Warranty information
[/tab]
[/tabcontent]
[/tabs]
| Weight | 6 lbs |
|---|
