Sale!

RX-LFP48100-H| 19″ Rack Mounted 3U Module| Self-heating| UL1973 9540A CEC SGIP

Original price was: $1,099.00.Current price is: $955.00.

-

This item is currently in high demand. Orders placed today will be fulfilled as soon as the next shipment arrives. Reserving yours now ensures earliest availability

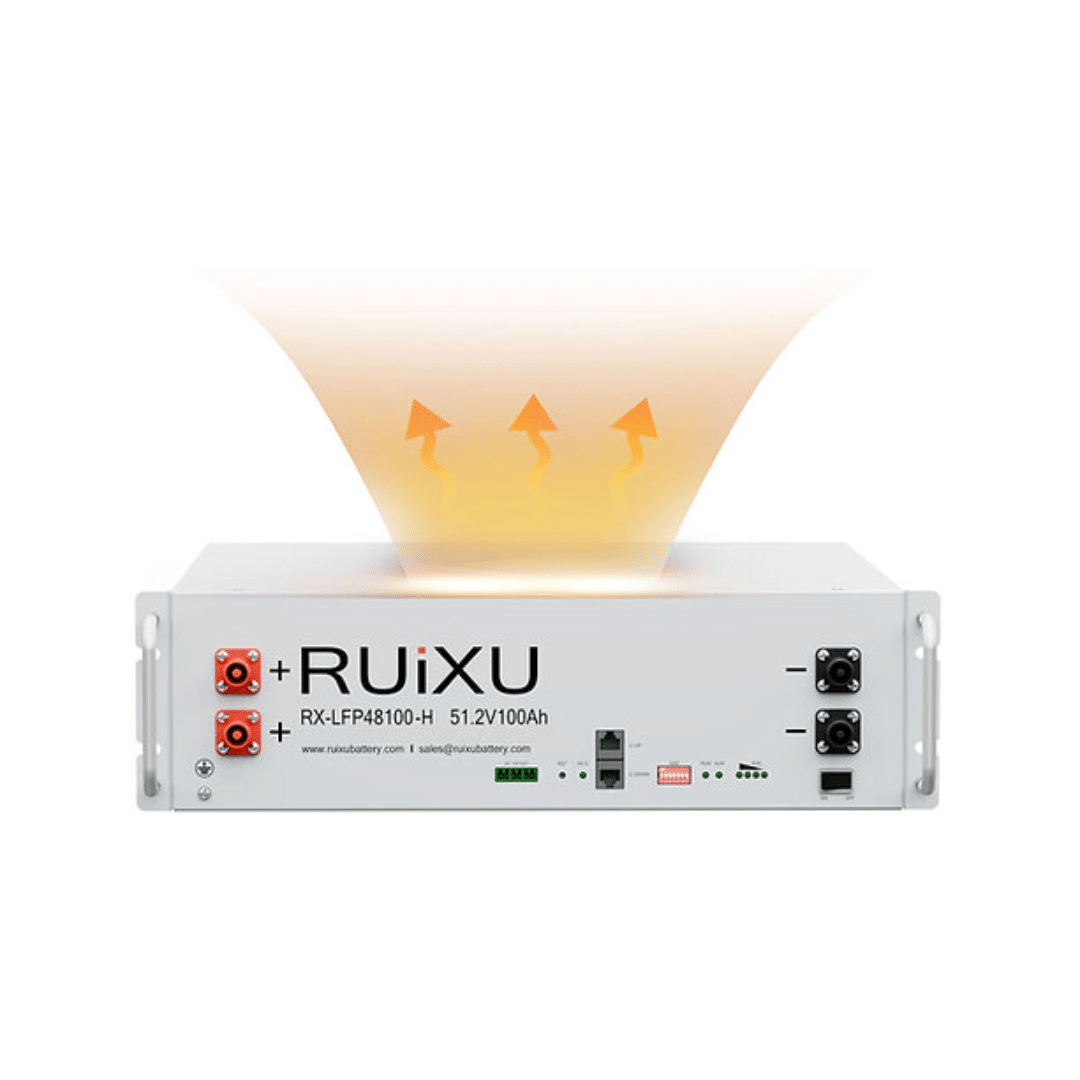

The RUiXU RX-LFP48100-H is a UL1973-certified 51.2 V 100 Ah (5.12 kWh) 19″ 3U LiFePO₄ rack-mounted battery module with self-heating capability—ensuring safe charging down to –20 °C (–4 °F)—that supports scalable parallel expansion (up to 32 units) and broad inverter compatibility via CANbus and RS-485.

SKU: RX-LFP48100-H Categories: , , Brand:

RX-LFP48100-H| 19″ Rack Mounted 3U Module| Self-heating| UL1973 9540A CEC SGIP

Description:

The RUiXU RX-LFP48100-H is a UL1973-certified 51.2 V 100 Ah (5.12 kWh) 19″ 3U LiFePO₄ rack-mounted battery module with self-heating capability—ensuring safe charging down to –20 °C (–4 °F)—that supports scalable parallel expansion (up to 32 units) and broad inverter compatibility via CANbus and RS-485.

Modular

Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.

Inverter Protocol Choosing

Use DIP address to set the RS485 baud rate and inverter protocol choosing

Communications

Canbus : Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye,

Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB,

MUST,Sunsynk,Schneider
RS485 : MPP,Voltronic,RCT,Alpha outback

Specifications

  • Nominal voltage :51.2V
  • Nominal [email protected] :100 Ah
  • Min. [email protected]:100 Ah
  • ​Nominal energy :5120Wh
  • Dimesion(W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch
  • Weight: ~47kg (103.6lb)

Standard Included

(1) RUiXU 48V Server Rack battery (RX-LFP48100)

(1) RJ45/CAT5e Patch Cable

(1) Ground Cable

(1) Set of Parallel 4AWG Cables  per battery

Weight 104 lbs
Battery Capacity (KWH)

0KWH-5KWH

Battery Type

Rack-Mount

Brand

Battery Voltage (V)

48V

Manual / Spec sheet

Manual – ruixu_5k_manual

Spec sheet – ruixu_5k_spec_sheet
