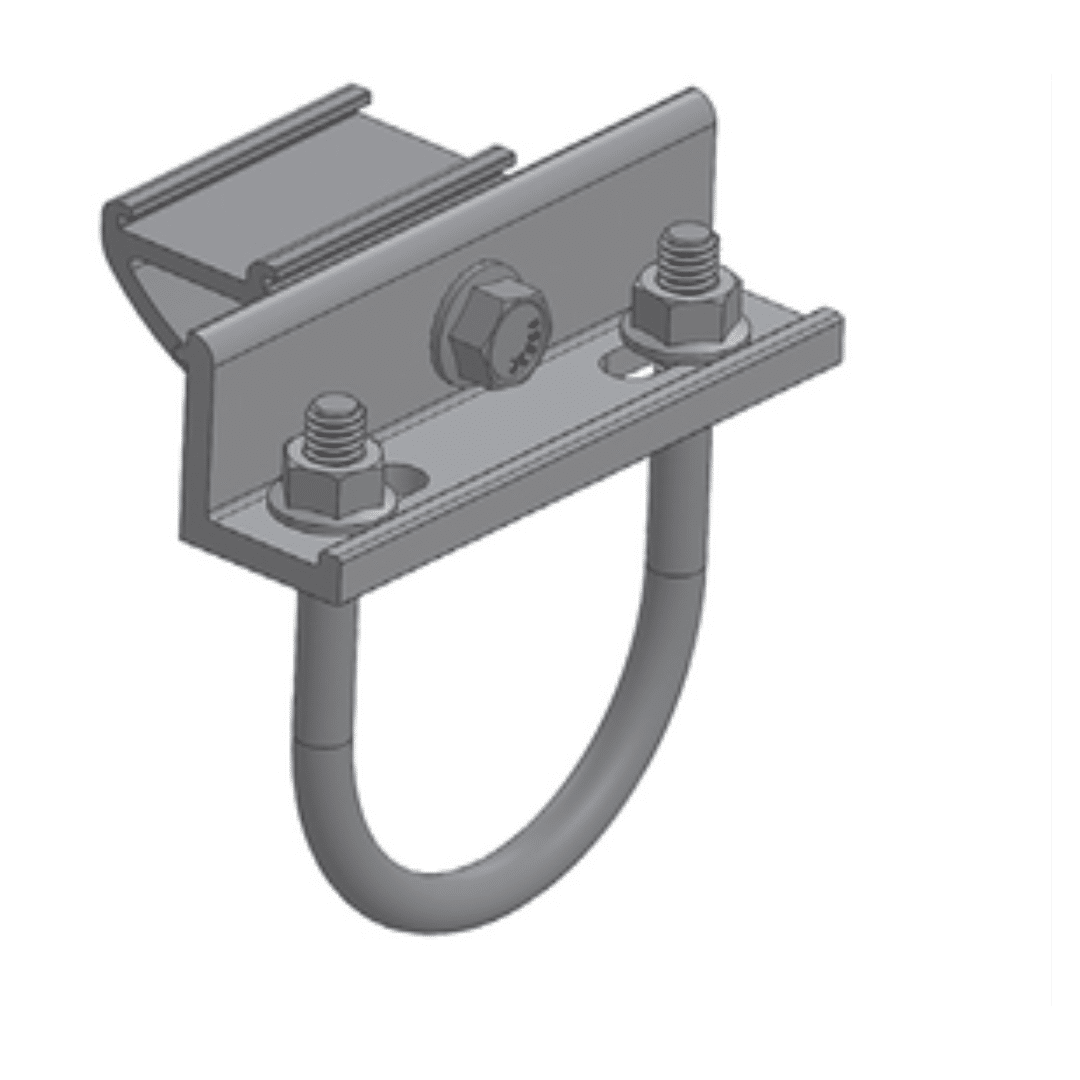

Tamarack Solar 2″ Pipe Mount Pack of 8 88955

The Tamarack Ground Mount System is assembled using 3.1 rail with 2-inch schedule 40 or 80 galvanized steel pipe that is purchased separately.
Use four 66-inch rails and two structural splices per column to create two 132-inch rail assemblies for 3 modules per column.
Use four 85-inch rails and two structural splices per column to create two 170-inch rail assemblies for for 4 modules per column.
The maximum PV module width is 41.5- inches on 4 module columns and 43 inches on 3 module columns.
The system comes with all parts needed except for the 2-inch pipe and concrete. Assembly is quick and easy and can be used on almost any terrain.

Features:

Simple Design – Arrays can be in columns of 3 or 4 module high and any width required
Easy to install – No welding or drilling and two wrench sizes fit all fasteners
UL 2703 Listed – All components meet the UL 2703 standards for bonding and grounding
PE Certified – Pre-stamped engineering letters available for most states
Easy to configure – Unlimited system size with tilt angles from 0 to 45 degrees
Visually Appealing – Simple to adjust for perfect alignment, even if the surface is irregular
Simple Wire Management – PV cables and wiring for module-level electronics fits inside rails to avoid time-consuming wire management
Extremely Robust – For use in locations with wind speeds up to 170 MPH and ground snow loads of up to 70 PSF
