Victron Energy Orion DC-DC Non-Isolated Converter 24/12-70A

$129.97

Only 1 left in stock

  • Victron Energy Orion DC-DC Non-Isolated Converter 24/12-70A


    Description:

    DC-DC Converters are used to step up or step down DC Voltages. This model is a step-down converter and is used to power 12 Volt devices on vehicles and boats with 24 Volt DC Systems. Its 70 Amp output makes it suitable for powering a variety of higher-powered 12-volt devices including Satellite TV tracking systems, VHF radios, Stereos, Scanners, SSB’s, etc.

    Features:

    • Remote on-off connector
    • All models with adjustable output can also be used as a battery charger
    • All models with adjustable output can be paralleled to increase output current
    • Easy to install



    Technical Data

    • Input voltage range 18-35 Volts
    • Output voltage is factory set to 13.2 Volts but can be user adjusted between 10 and 15 Volts
    • Continuous output current 70 Amps
    • Max momentary output current 85 Amps
    • Offload current < 20 mA
    • Remote On-Off capable
    • Temperature controlled fan assisted cooling
    • Can be used as a 12-volt charger powered from a 24-volt system

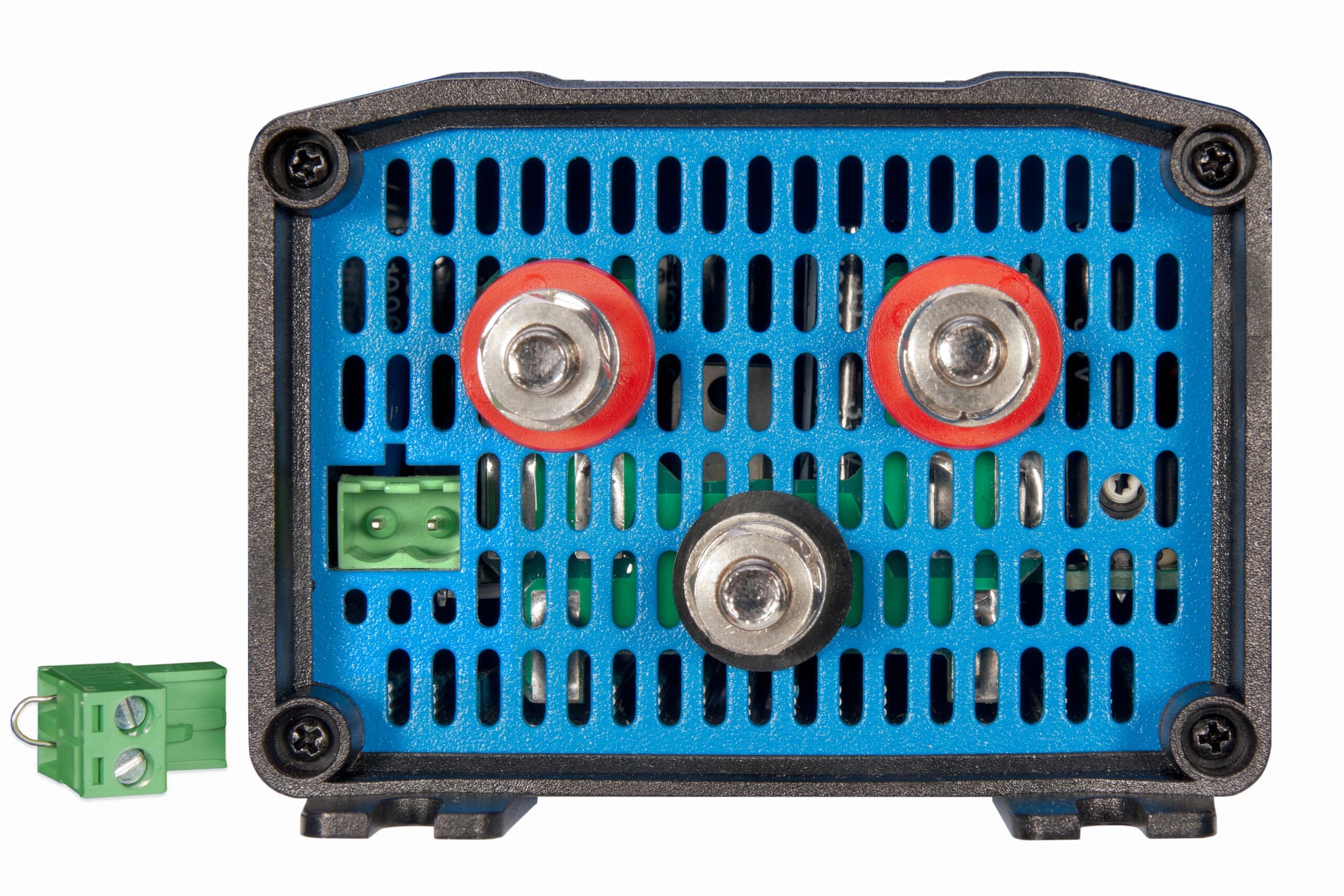

    • DC Connection – M6 bolts
    • Dimensions 2.6″x3.5″x7.7″  Weight 2.0 Lbs

Description

Victron Energy Orion DC-DC Non-Isolated Converter 24/12-70A


Description:

DC-DC Converters are used to step up or step down DC Voltages. This model is a step-down converter and is used to power 12 Volt devices on vehicles and boats with 24 Volt DC Systems. Its 70 Amp output makes it suitable for powering a variety of higher-powered 12-volt devices including Satellite TV tracking systems, VHF radios, Stereos, Scanners, SSB’s, etc.

Features:

  • Remote on-off connector
  • All models with adjustable output can also be used as a battery charger
  • All models with adjustable output can be paralleled to increase output current
  • Easy to install



Technical Data

  • Input voltage range 18-35 Volts
  • Output voltage is factory set to 13.2 Volts but can be user adjusted between 10 and 15 Volts
  • Continuous output current 70 Amps
  • Max momentary output current 85 Amps
  • Offload current < 20 mA
  • Remote On-Off capable
  • Temperature controlled fan assisted cooling
  • Can be used as a 12-volt charger powered from a 24-volt system
  • DC Connection – M6 bolts
  • Dimensions 2.6″x3.5″x7.7″  Weight 2.0 Lbs

Additional information

Weight 2 lbs
Dimensions 2.6 × 3.5 × 7.7 in
