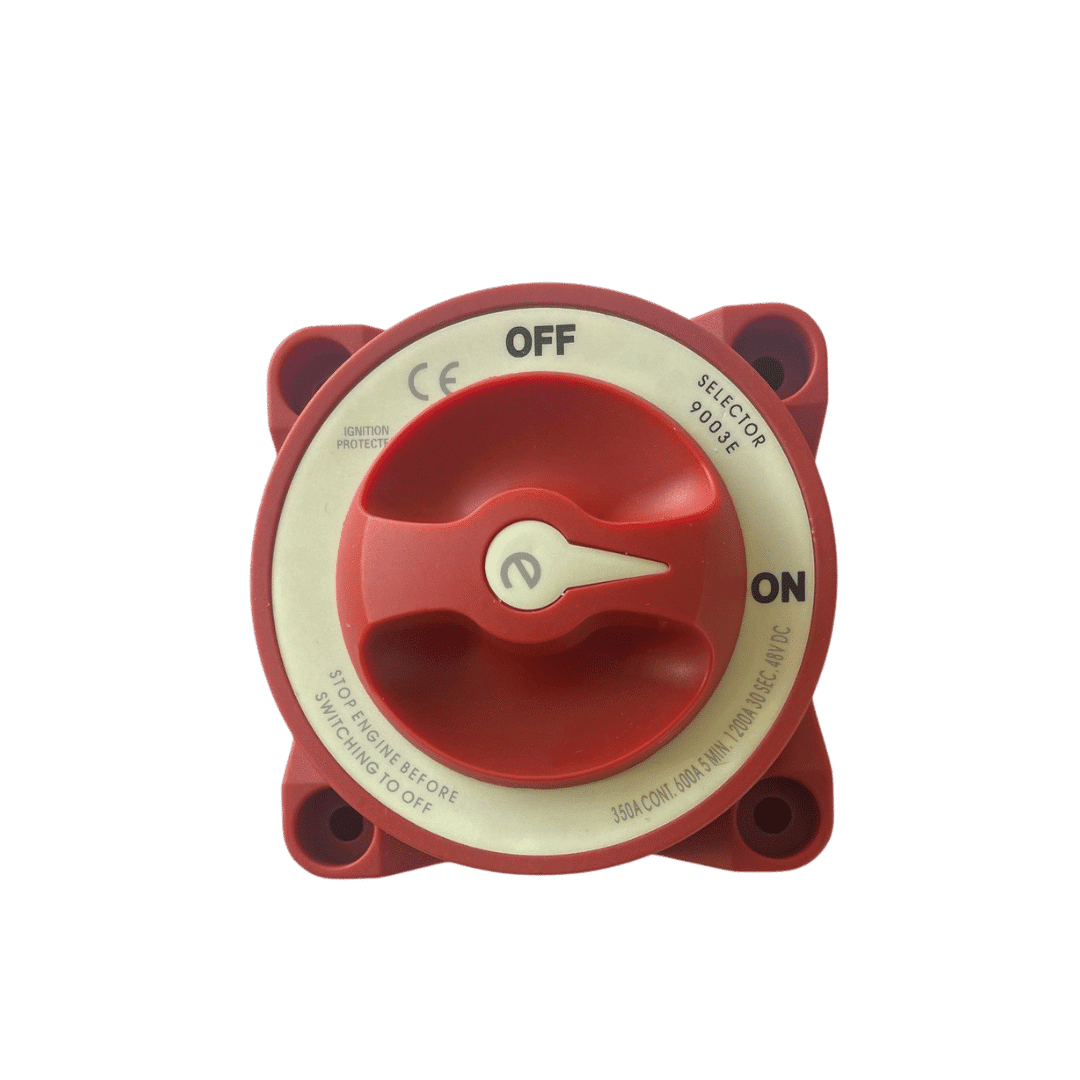

DC Disconnect On/Off Switch 350A

Name: DC Disconnect On/Off Switch 350A
SKU: DcDisconnectSwitch-350A
Price: 25.00 USD
Availability: InStock

DC Disconnect On/Off Switch 350A

$25.00

-

Only 6 left in stock

DC Disconnect On/Off Switch 350A

Description
Additional information

Make-before-break contact design allows switching between battery banks without power interruption
Ignition protected, safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting

Specifications

Switch Type: Selector 2 Position
Color: Red
Switch Positions: 2
Voltage: Works on battery banks up to 48V
Continuous Rating : 350A
Cranking Rating 1 min : 1000A
Battery Inputs: 1
Cable Clearance For 4/0 AWG Cables: 1.10in (27.94 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm sq)
Mounting Holes: Accept 1/4inch (M6) Screw
Terminal Stud Size: 3/8inch - 16 (M10)
Material: Plastic + Metal
