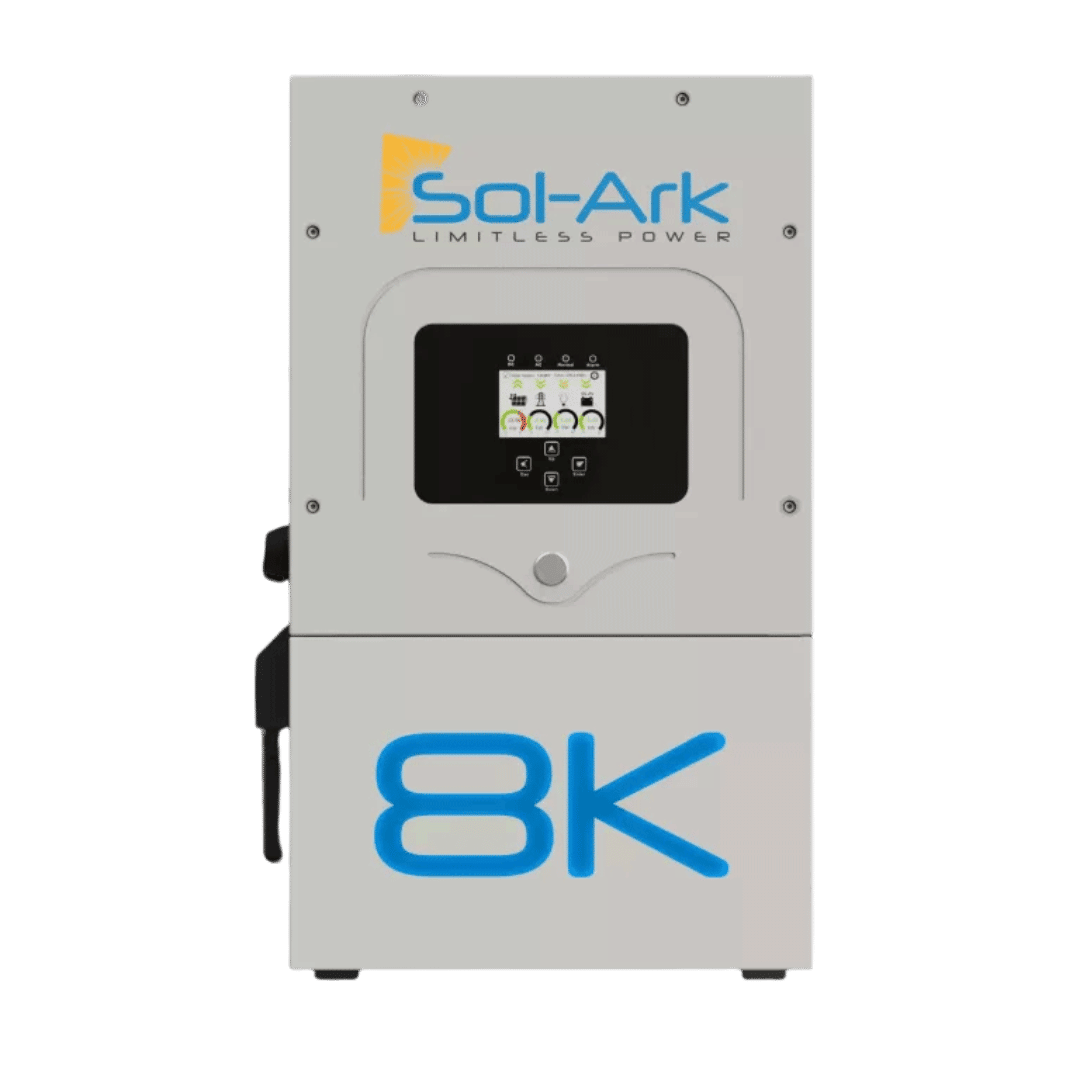

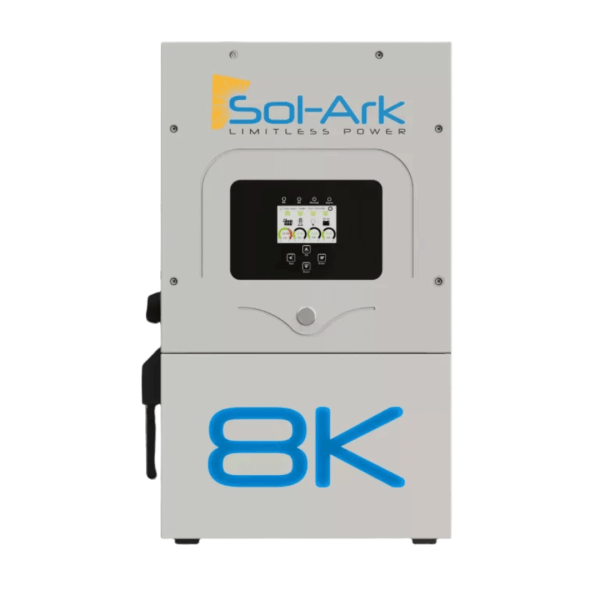

Sol-Ark 8K Hybrid Solar Inverter System

-

Sol-Ark 8K Pre-Wired Hybrid Inverter System is a all-in-one system that includes an inverter, charger controller, a display with remote monitoring. The Sol-Ark is simple to install to a Grid-tied, Off-Grid, or Battery Backup solar system, while being able to manages power to and from Solar, Battery, Grid, Loads, and Generator.



NOTE: If you are interested in the Sol-Ark EMP upgrade (Indirect Lightning, Solar Flare & EMP Hardening) for this inverter, please email us or give us a call to discuss the options and pricing. The EMP upgrade can only be added on to a new inverter and cannot be purchased separately.

SOL-ARK 8K HYBRID SOLAR INVERTER SYSTEM

CALL TO GET A QUOTE

Sol-Ark 8K Pre-Wired Hybrid Inverter System is a all-in-one system that includes an inverter, charger controller, a display with remote monitoring. The Sol-Ark is simple to install to a Grid-tied, Off-Grid, or Battery Backup solar system, while being able to manages power to and from Solar, Battery, Grid, Loads, and Generator.

SA-8K Features:

  • Simple to install with touchscreen interface
  • Grid Tied Mode: Sell your power to reduce electric bill
  • Meter Zero Mode: Zero your electric bill without a smart meter
  • Time of Use: Use solar and batteries to minimize grid power usage
  • Programmable Smart Load Mode
  • DC and AC Coupling
  • Works with a wide range of battery chemistries- Lead acid to Lithium
  • Integrated PV DC Disconnect Switch, ground fault detection, PV rapid shutdown control(devices sold separately), PV lightning protection, PV string input reverse polarity protection, AC output breakers 63A, 250A battery breaker/disconnect, surge protection.

SA-8K Specifications:

  • AC Voltage: 120/240V split phase
  • AC Frequency: 60/50 Hz
  • Max Continuous AC Output Power: 8,000W
  • Max Allowed PV Power: 11000W
  • Solar Input Power: 9000W
  • Number of MPPT: 2
  • Max Solar Strings per MPPT: 2
  • MPPT Voltage Range: 150-425V
  • Max Input Current: 18 Amp (per mppt)
  • Inverter Efficiency: 96.0%
  • Listings & Certifications:UL1741-2010/2018, IEEE1547a-2003/2014, FCC 15 class B
  • Weight: 75. lbs
  • Dimensions (H x W x D): 30.0" x 18.30" x 10.0"

Inside the 8K box

  • Manual
  • WiFi Plug with screws
  • Battery Resistors 2
  • Toroid
  • Allen Key
  • Mounting Bracket
  • Battery Temp Sensor
  • POWERVIEW DONGLE SOLD SEPARATELY

5 Year Standard Warranty



Additional information

Weight 78 lbs
Dimensions 30 × 18.3 × 10 in
