Victron 120/240V 6VA 2KW Solar Panels w/200A Charging GX Kit
$5,585.00
-
Introducing the Ultimate Solar Power Kit: Harness the sun’s energy efficiently and reliably with our comprehensive solar kit. Featuring top-of-the-line components from industry leader Trina and Victron.
Included in the kit are 8 used Trina 245W panels, ensuring ample solar capture for maximum energy generation. The heart of the system is powered by 2 Victron Multiplus II 12/3000 inverters, providing seamless integration of solar, battery, and grid power.
Managing the solar input is a breeze with 2 Victron 150/100A charge controllers, ensuring optimal battery charging. The Victron Cerbo GX and GX Touch 70 offer intuitive monitoring and control, allowing you to keep track of your system’s performance with ease.
For distribution and protection, the kit includes 4 Victron Lynx Distributors, a Victron Lynx Shunt, and a 400A Mega Fuse along with 8 125A Mega Fuses, ensuring safety and efficiency in power distribution.
The kit also comes with 2 32A PV Combiner Boxes and 2-to-1 Pigtails for easy panel connection. And with the inclusion of a Victron MK3 Cable, installation is simplified and straightforward.
With the capacity to install 8 batteries in parallel (batteries not included), this kit offers scalability and flexibility to meet your energy storage requirements.
Experience the power of the sun like never before with our Solar Power Kit, engineered for performance, reliability, and ease of use.

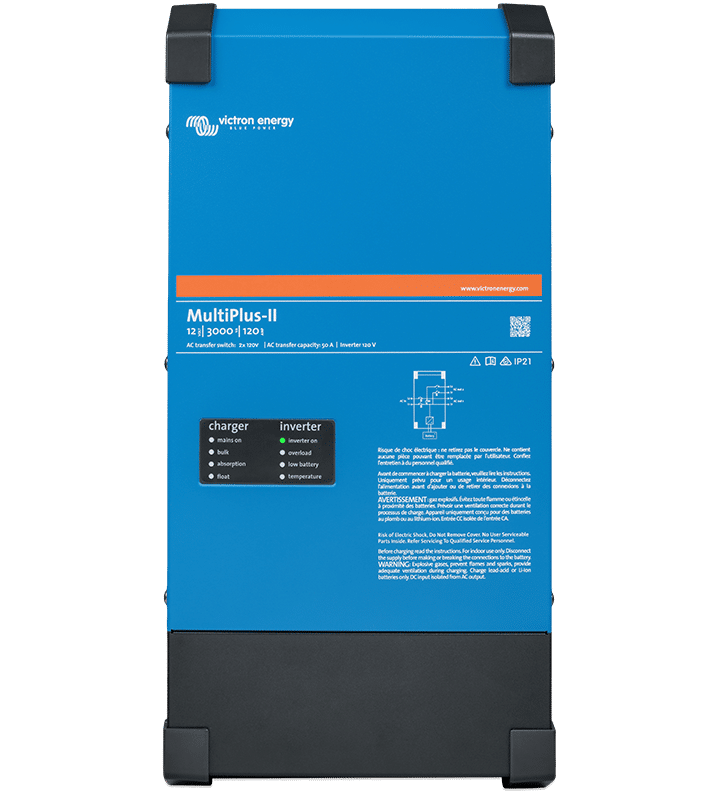

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.
- Weight:22 kg / 48 lbs.
- Rated Power:3000VA
- Battery Voltage:12V
- Rated AC Output:120/240V
- Max Charging Current:120A
- 5 year warranty
Victron Energy SmartSolar MPPT 150/100-TR Solar Charge Controller
Description:
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximizes this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life. By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing. Remotely control and monitor the extensive features of your SmartSolar MPPT charger with built-in Bluetooth by pairing it with your smartphone or other device via VictronConnect. If your installation is connected to the internet Victron Remote Management Portal (VRM) provides access to the full power of your MPPT, anytime, anywhere; both services are free to use. For remote installations - even when there is no internet connection or phone signal nearby - you may be able to monitor your MPPT by Bluetooth-pairing with a LoRaWAN(long-range wide area network) device, available optionally. By adding the SmartSolar Control Display you will be able to check the status of your Charger and battery-storage at a glance. Simply plug it into the face of your MPPT charger to provide you with real-time monitoring and set-up capabilities.
Specifications:
- Nominal system voltage: 12 - 48V
- Rated charge current: 100A
- Rated discharge current: 70A (Max 30A per MC4 connection)
- Max. PV open circuit voltage: 150v (absolute maximum coldest conditions) 145V(start-up and operating maximum)
- Max. PV input power: 1450W(12V Battery); 2900W(24V battery); 4350W(36V battery); 5800W(48V battery)
- Power terminals: 35mm/AWG2 (3 pairs of MC4 connectors)
Features:
- Ultra-fast maximum power point tracking (MPPT)
- Advanced maximum power point detection in case of partial shading conditions
- Outstanding conversion efficiency
- Natural convection cooling
- Automatic battery voltage recognition
- Flexible charge algorithm
- Over temperature protection and power derating when temperature is high

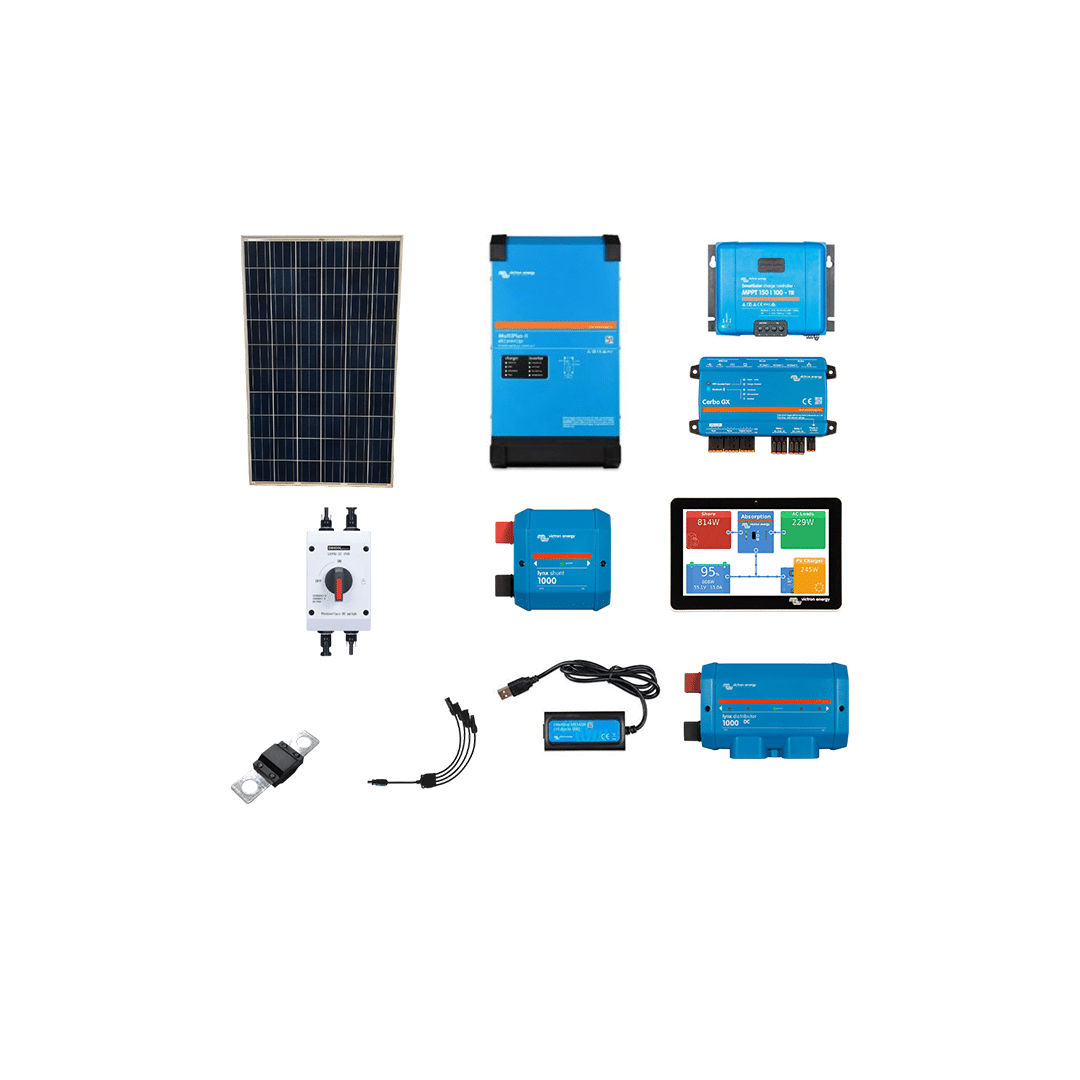

Kit includes:
- Qty 8 Trina 245W Panels
- Qty 2 Victron Multiplus II 12/3000
- Qty 2 Victron 150/100A Charge Controllers
- Qty 1 Victron Cerbo GX
- Qty 1 Victron GX Touch 70
- Qty 4 Victron Lynx Distributors
- Qty 1 Victron Lynx Shunt
- Qty 1 Victron MK3 Cable
- Qty 2 400A Mega Fuse
- Qty 2 125A Mega Fuse

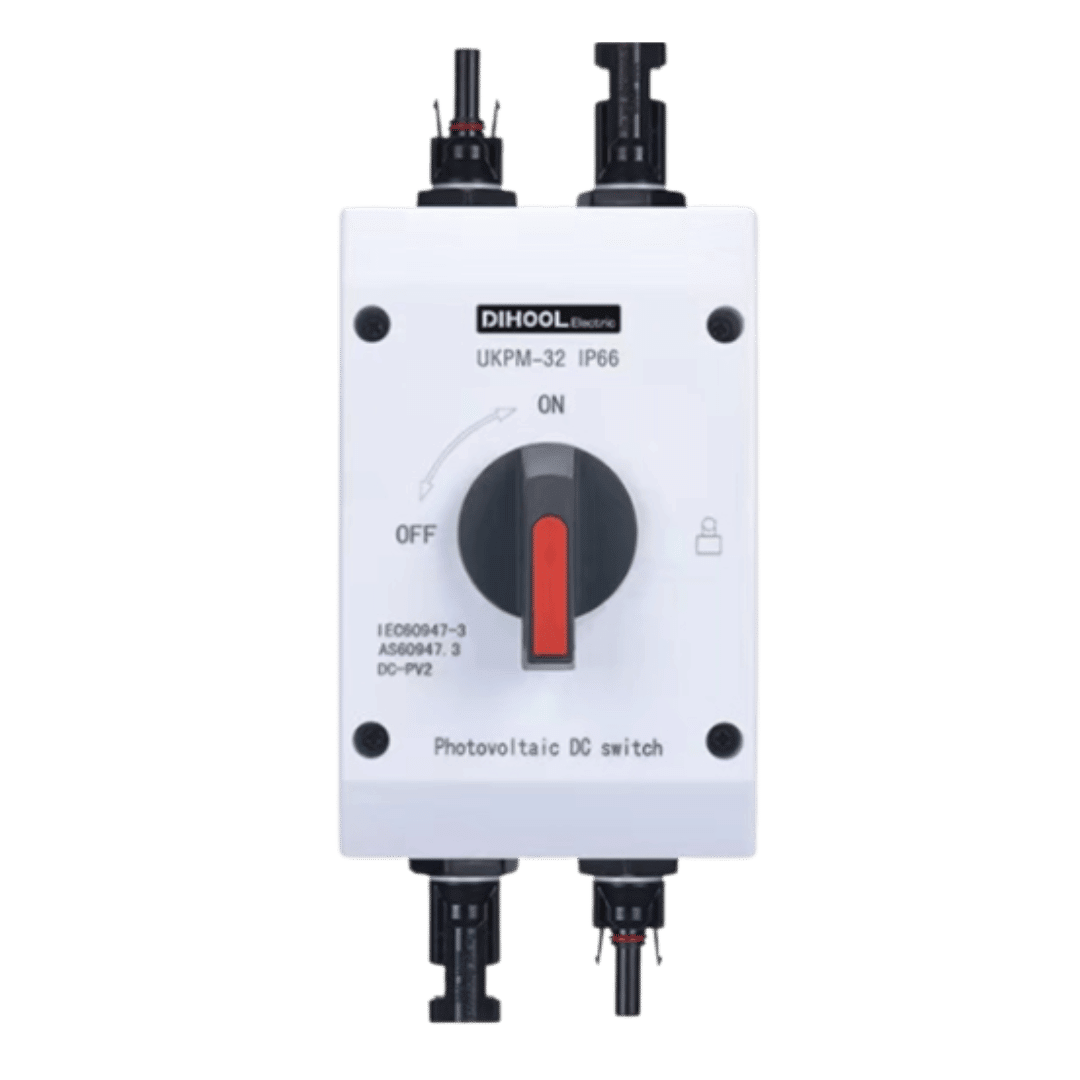

- Qty 2 32A PV Combiner Box
- Qty 2 2 to 1 Pigtails
- Qty 10' of 4/0 black and red cable
- Qty 10' of 2AWG black and red cable
- Lugs and heat shrink
- 80' of black and red pv wire
- Qty 20 MC4 connectors
NOTE: DC disconnects, fuses, and battery interconnects needed depends on the size and amount of batteries in design. With 4 or less batteries you will only need 3 Lynx Distributors. For assistance, please call and speak with one of our sales reps.

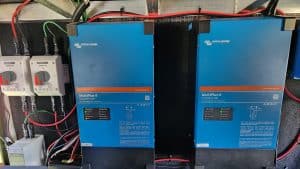

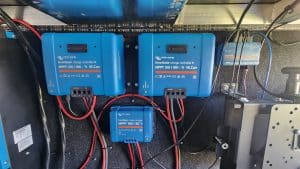

Build Installation pics brought to you by Exploring Outside the 303.
Additional information
| Weight | 800 lbs |
|---|
